Connecting a PC
Refer to page 41 for a list of PC signals compatible with the TV.
■

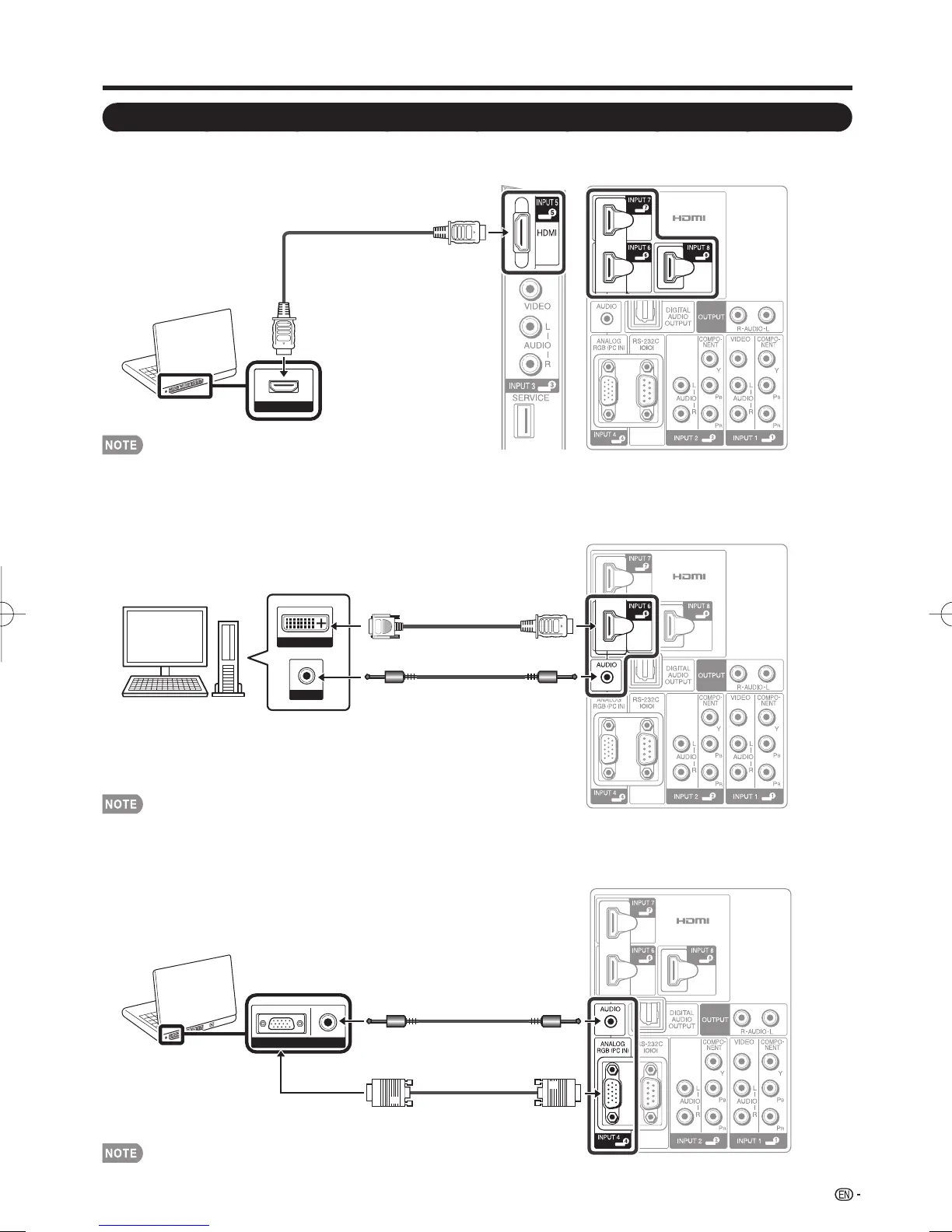

When using HDMI cable (INPUT 5, 6, 7 or 8):
HDMI OUT
Rear of the TV
Side panel
HDMI-certifi ed cable
• Depending on the board, only video signals may be output. In this case, in addition to connecting an HDMI-certifi ed cable to the
INPUT 6 (HDMI) terminal, connect a Ø 3.5 mm stereo minijack cable to the AUDIO terminal and set "PC Audio Select" to "Input 6
(HDMI)". (See page 41.)
•
The HDMI terminals only support digital signal.
■
When using DVI-HDMI conversion cable (INPUT 6):
Rear of the TV
DVI OUT
AUDIO
DVI-HDMI conversion cable
Ø 3.5 mm stereo minijack cable
• When using a DVI-HDMI conversion cable, you should make an analog audio connection. In this case, in addition to
connecting a DVI-HDMI conversion cable to the INPUT 6 (HDMI) terminal, connect
a Ø 3.5 mm stereo minijack cable to the
AUDIO terminal and set "PC Audio Select" to "Input 6 (HDMI)". (See page 41.)
■
When using analog RGB cable (INPUT 4):
AUDIORGB
Rear of the TV
Ø 3.5 mm stereo minijack cable
Analog RGB cable
(D-sub 15-pin cable or VGA cable)
• When using an analog RGB cable, input the audio signal to the AUDIO terminal of INPUT 4.
• When connecting a PC to the INPUT 4, set "PC Audio Select" to "Input 4 (PC)". (See page 41.)
