Connecting to External Equipment

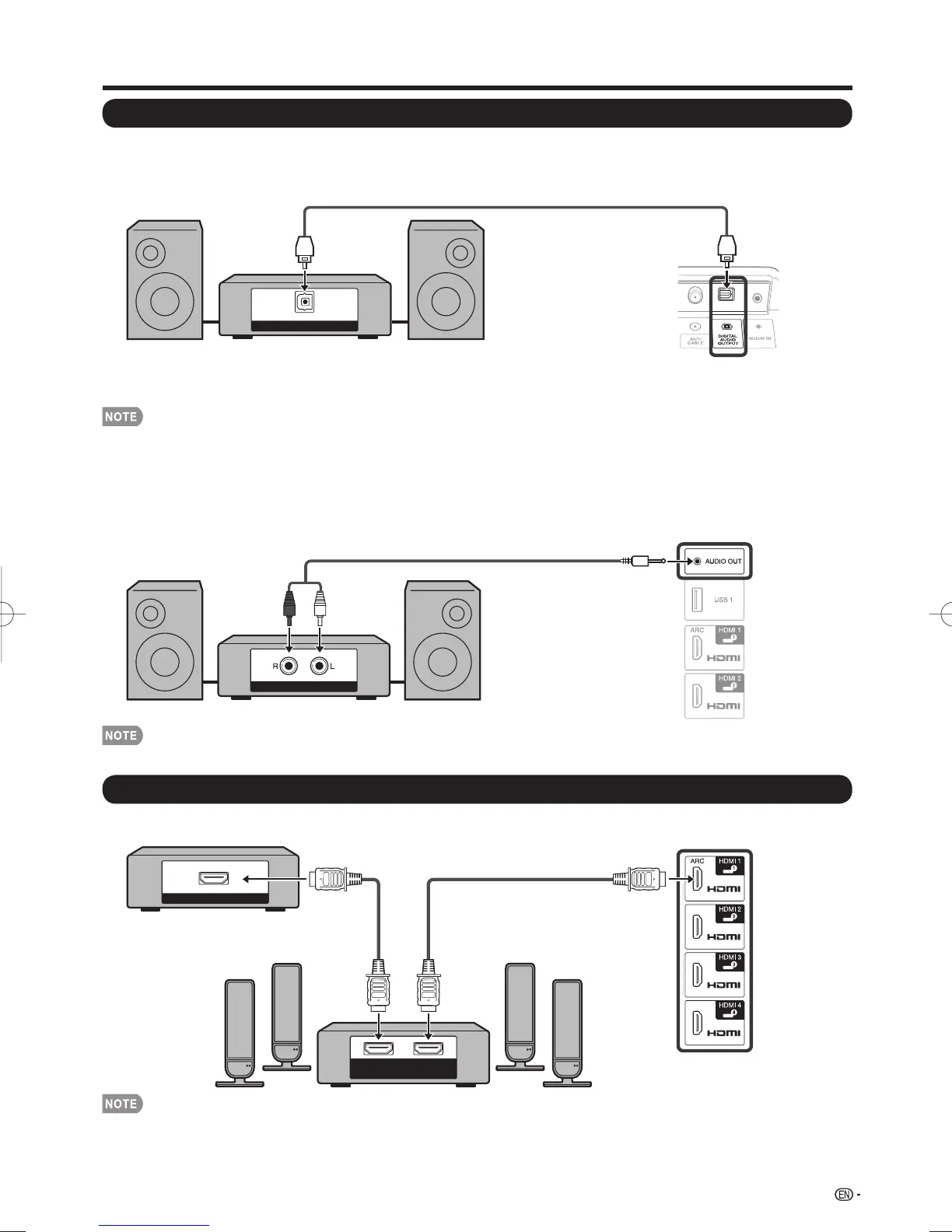

Connecting an Audio Amplifi er
■
When using optical fi ber cable:
It is possible to output audio through the DIGITAL AUDIO OUTPUT terminal. (See page 31 for details.) PCM audio
outputs from the terminal.
DIGITAL AUDIO INPUT
OPTICAL
Optical fiber cable
Back panel
horizontal inputs
• Depending on the connected equipment, audio will not output from the DIGITAL AUDIO OUTPUT terminal in HDMI
connection. In this case, set the audio formats of the connected equipment to PCM, 32/44.1/48 kHz.
•
Optical digital audio will be output in 2-ch stereo when it is from the external equipment connected to the TV using an HDMI cable.
■
When using audio cable:
ANALOG AUDIO IN
Back panel
vertical inputs
Audio cable
• See page 31 for details on the Output Select function.
Connecting an AV Amplifi er
Back panel
vertical inputs
HDMI OUT
HDMI
IN
HDMI
OUT
HDMI-certified cable
HD Cable/Satellite set-top box
• If the image is not in sync with the audio, check the settings of the connected surround system.
• Letting the TV output the audio to an AV amplifi er:
-
When you connect ARC-compatible equipment, use the HDMI 1 terminal.
-
If the equipment to be connected is not compatible with the ARC, connect an optical fi ber cable.
