Attaching the stand unit – 60LE940X
• Before performing work, spread cushioning over the surface
on which you will be laying the TV. This will prevent it from
being damaged.
CAUTION
• Attach the stand in the correct direction.
• Be sure to follow the instructions. Incorrect installation
of the stand may result in the TV falling over.

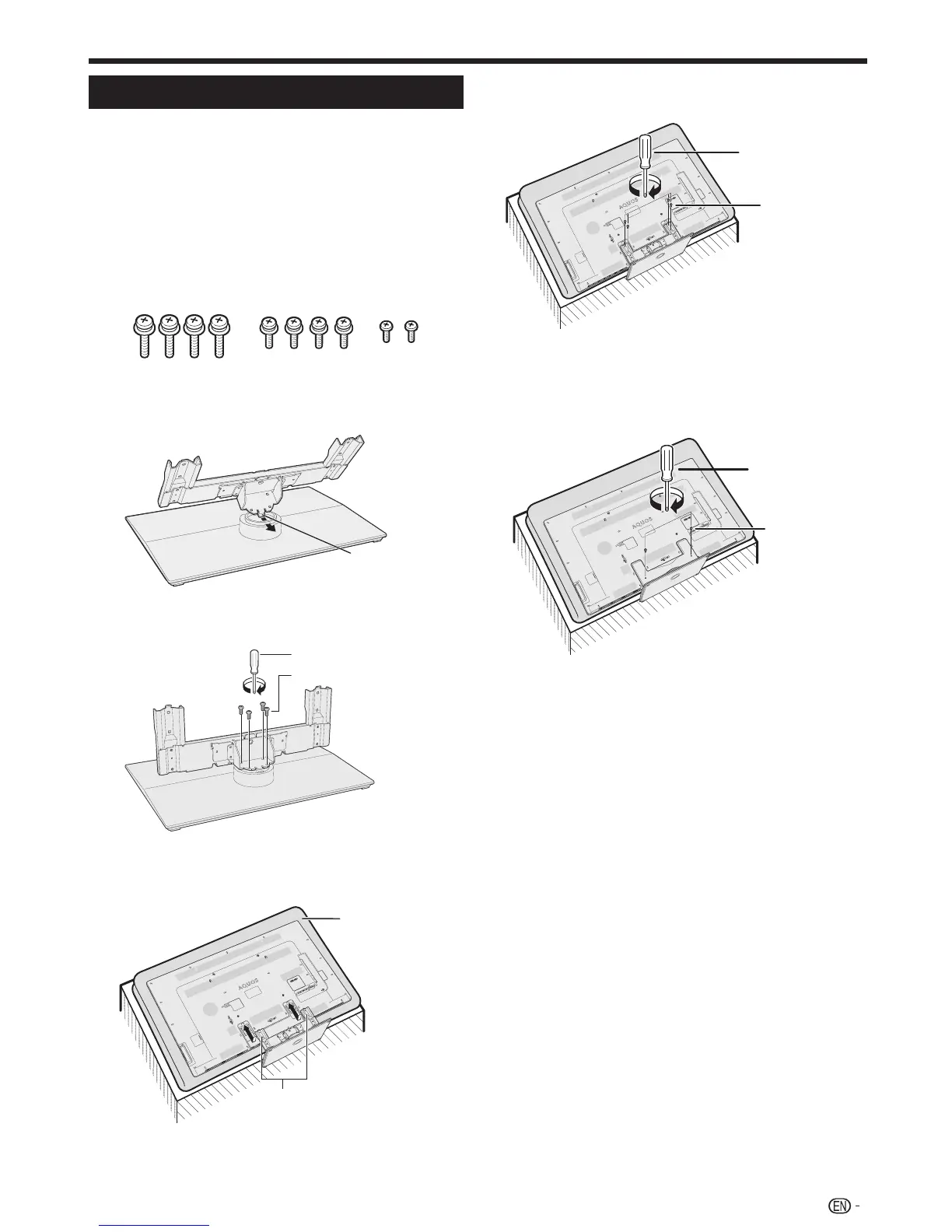

1 Confirm that there are screws with the stand unit.
For 60 inch models
(four long screws, four middle screws and two
short screws)
2 Attach the supporting post for the stand unit onto
the base using the long screws with a screwdriver
as shown.
2
1
Long screws
Screwdriver
Insert this point
3 Insert the stand into the openings on the bottom
of the TV (hold the stand so it will not drop from
the edge of the base area).
Soft cushion
Insert into the fullness
4 Insert and tighten middle screws into the holes on
the rear of the TV.
Middle screws
Screwdriver
5 Attaching the stand cover.
1
Insert the stand cover.
2
Insert and tighten two short screws into the holes of
the stand cover.
Short screws
Screwdriver
NOTE
• To detach the stand unit, perform the steps in reverse order.
• A screwdriver is not supplied with this product.
Preparation
