10

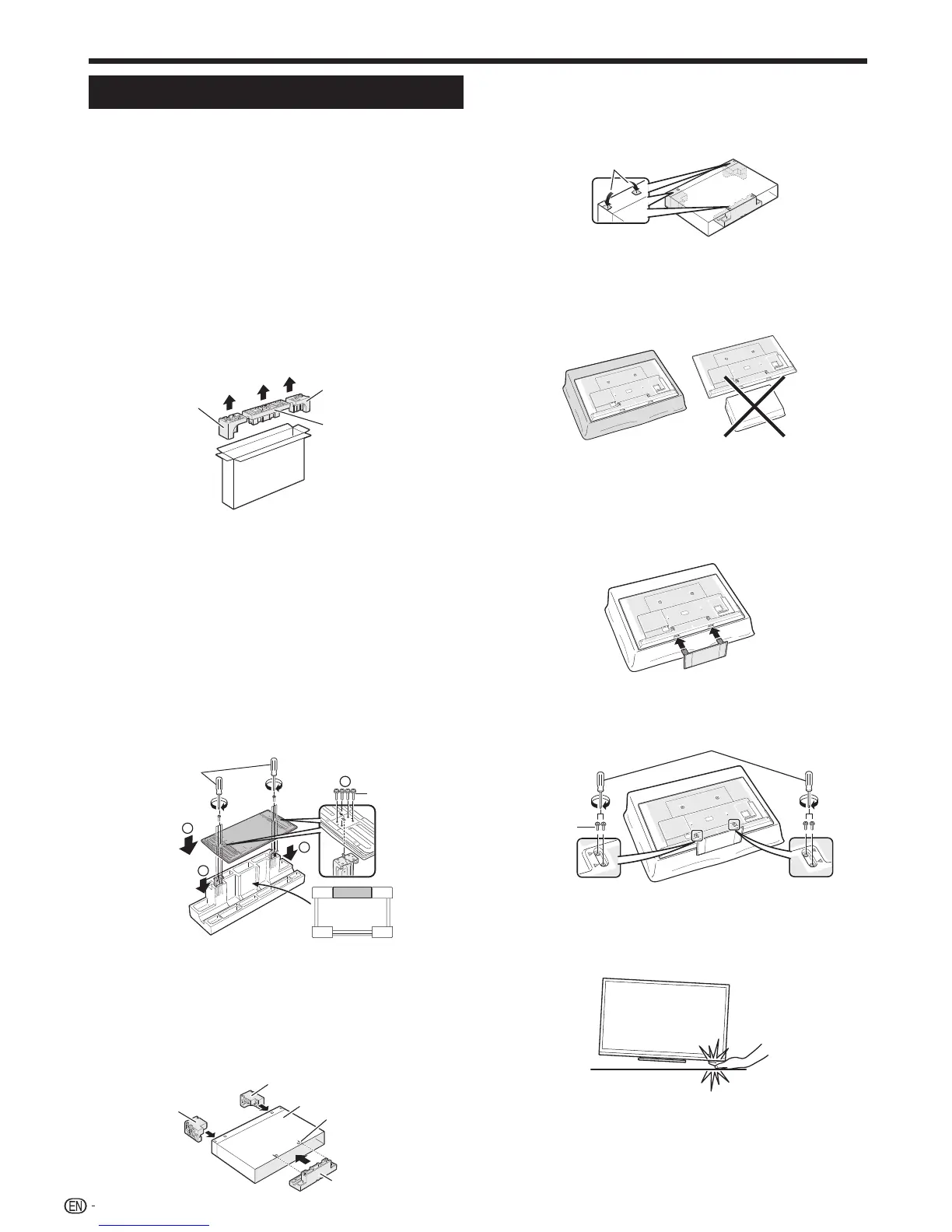

Attaching the stand unit – 80LE940X
• Before performing work, spread cushioning over the surface
on which you will be laying the TV. This will prevent it from
being damaged.
CAUTION
• Be sure to follow the instructions. Incorrect installation
of the stand may result in the TV falling over.
• After attaching the stand to the TV, do not hold the
stand when you put up, set up, move or lay down the
TV.
• Do not remove the stand from the TV unless using a
wall mount bracket to mount it.
Before attaching the stand to the TV, build a work table
on which to rest the TV.
• To build the table, use the cushioning materials used in the
packaging.
FRONT
TOP-R
TOP-L
TOP-C
• Of the cushioning materials used, TOP-C is also used during
stand unit assembly. Be sure to assemble the stand unit
before building the work table.
E
Stand Unit Assembly
1 Confirm that there are 12 screws (8 long screws
and 4 short screws) supplied with the stand unit.
2 1 Set the post for the stand unit onto the TOP-C.
2 Attach the base to the post.
3 Insert and tighten the 8 screws into the 8 holes
on the bottom of the base.
• Hold the stand unit securely with one hand, and then
tighten the screws.
FRONT
2
1
1
3
Long screws
Screwdriver
E
Building the Work Table
3 Insert each of the cushioning materials in the
respective directions shown in the figure.
• Insert TOP-L and TOP-R into the left and right sides of
the case respectively.
• Insert TOP-C to fit between the lines on the other side of
the case.
TOP-R
TOP-L
TOP-C
CASE
LINE
4 The case is equipped with push-in tabs to hold
the cushioning materials in place. Push in the
tabs (2 for each location) to secure the cushioning
materials in the case.
Push-in tabs
5 After you have built the work table, spread a
blanket or similar soft cloth over the table and then
lay the TV display down on the covered table.
• Do not use a small table for this.
E
Attaching the Stand to the TV
6 Insert the stand into the openings on the bottom
of the TV.
• Make sure that the stand is firmly inserted into the TV.
Improper installation may result in tilting of the TV set.
7 Insert and tighten 4 short screws into the 4 holes
on the rear of the TV.
Short screws
Screwdriver
NOTE
• To detach the stand unit, perform the steps in reverse order.
• A screwdriver is not supplied with this product.
• In the installation procedure, be careful not to catch your
fingers between the TV set and the floor.
Preparation
LC80LE940X_EN_book.indb 10LC80LE940X_EN_book.indb 10 8/29/2012 8:53:49 AM8/29/2012 8:53:49 AM
To Next Page
