AR-5220 EXTERNAL VIEWS AND INTERNAL STRUCTURES 4-3

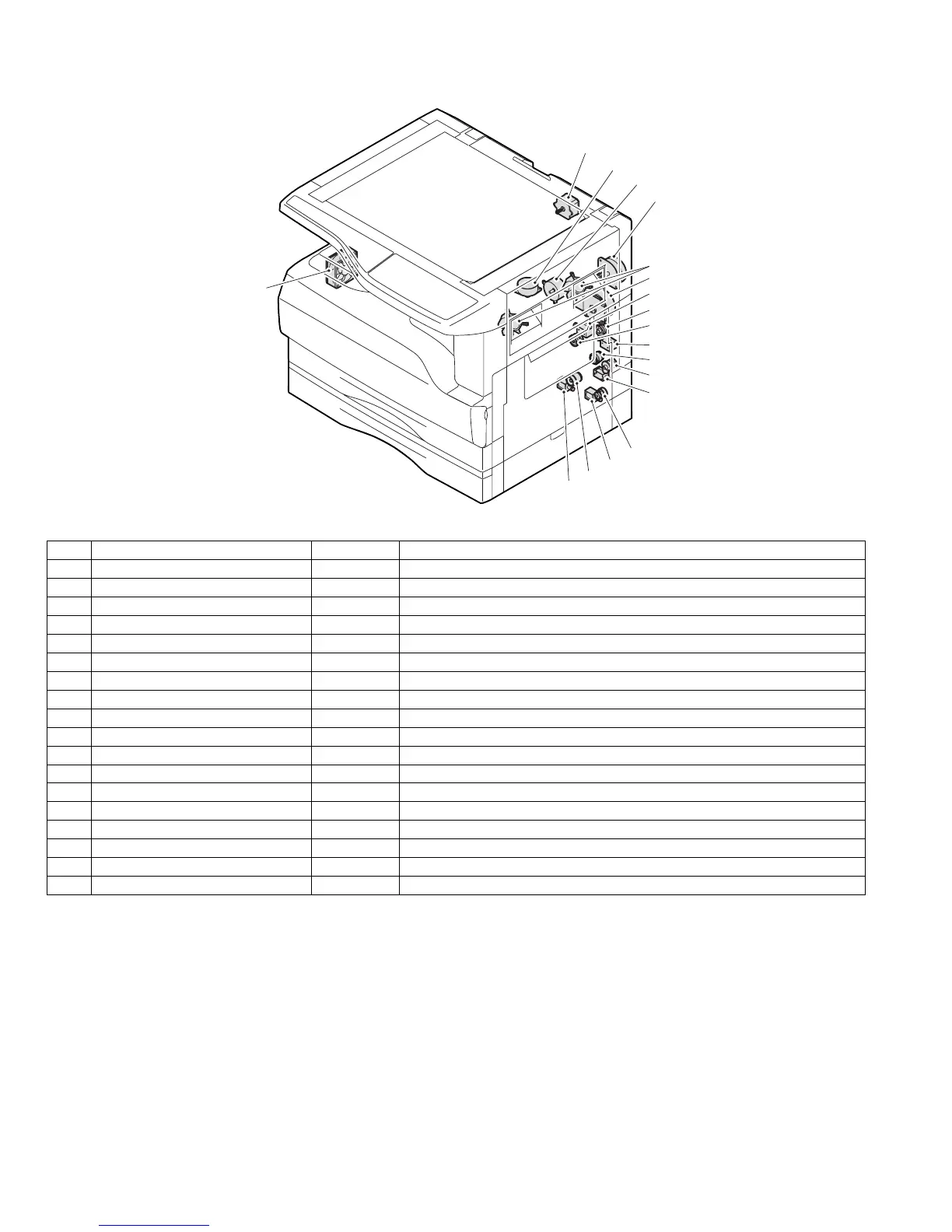

4. Motor, solenoid, clutch
No.
Name
Code
Function operation
1 Mirror motor MRM Drives the optical mirror base (scanner unit).
2 Shifter motor SHTM Shifts the paper exit tray.
3 Toner motor TM Toner supply
4 Duplex motor DPX Switchback operation and paper exit motor in duplex.
5 Cooling fan motor CFM Cools the inside of the machine.
6 Main motor MM Drives the machine.
7 1st tray paper feed clutch CPFC1 Drive the pick up roller
8 PS clutch RRC Drives the resist roller
9 Paper feed solenoid CPSOL1 Solenoid for paper feed from cassette
10 Resist roller solenoid RRS Resist roller rotation control solenoid
11 Manual paper transport clutch MPTC Drives the manual paper transport roller.
12 Manual paper feed clutch MPFC Drives the manual paper feed roller.
13 Manual paper feed solenoid MPFS Manual paper feed solenoid
14 2nd tray transport clutch CPFC2 Drives the 2nd tray transport roller.
15 2nd tray transport solenoid FSOL1 2nd tray transport solenoid
16 2nd tray paper feed clutch CPFC1 Drives the 2nd tray paper feed roller.
17 2nd tray paper feed solenoid PSOL2 2nd tray transport solenoid
18 Exhaust fan motor VFM Cools the inside of the machine.
1
4
6
7
8
9
10
11
12
13
18
14
15
16
17
5
3
2
' !"#$%
