AR-5220 EXTERNAL VIEWS AND INTERNAL STRUCTURES 4-5

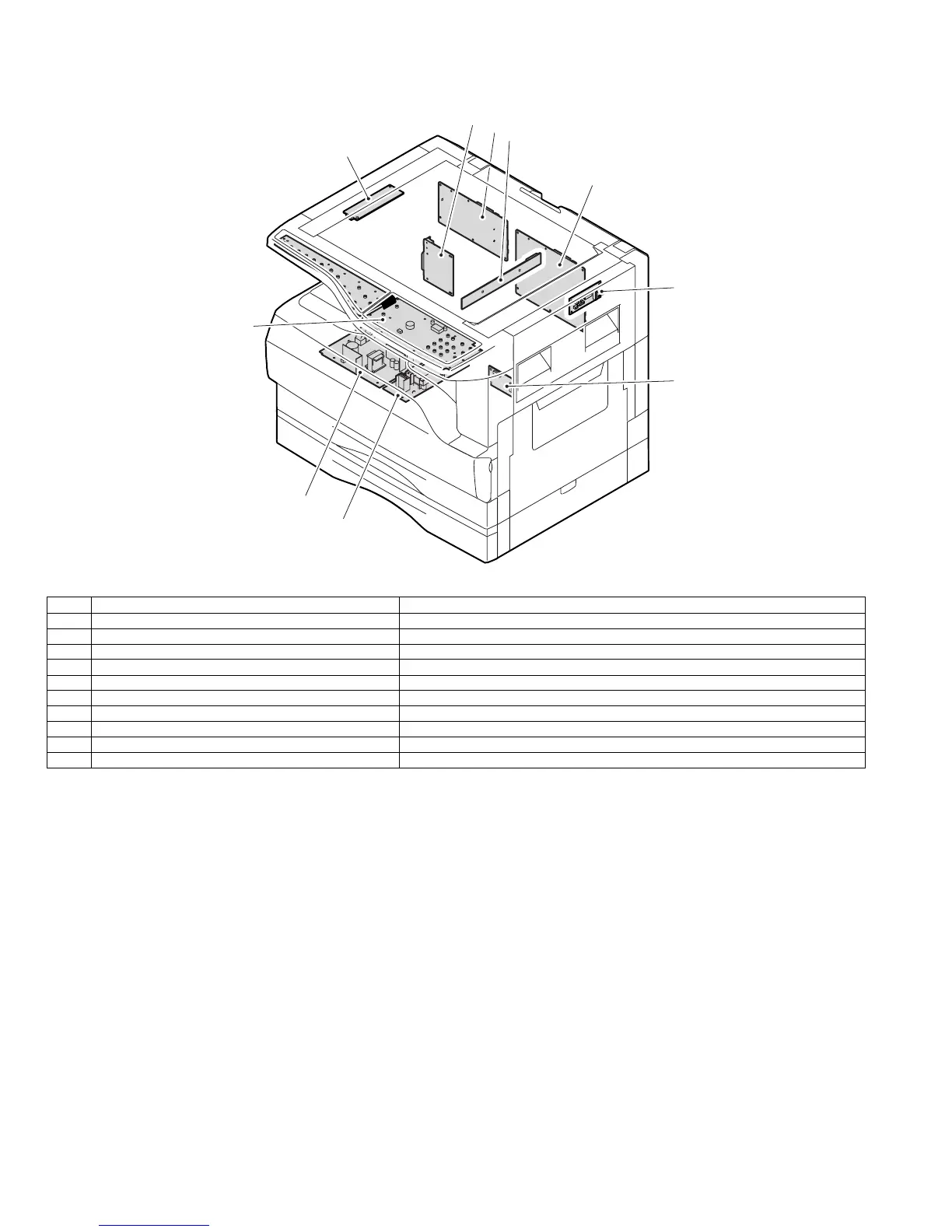

6. PWB unit
No. Name Function operation
1 Copy lamp Inverter PWB Copy lamp control
2 I / F PWB USB1.1, IEEE1284 I/F
3 CCD sensor PWB Image scanning
4 Main control PWB Main control PWB
5 Tray PWB Shifter motor control
6 IMC2 PWB Electronic sort, USB2.0 << Option:AR-EB7>>
7 2nd cassette PWB 2nd cassette control
8 High voltage PWB High voltage control
9 Power PWB AC power input/DC power control
10 Operation main PWB Operation panel input/Display, operation panel section control
1
10
9
8
2
4
5
7
3
6
( !"#$%
