Sharp AR-5316 - TROUBLESHOOTING

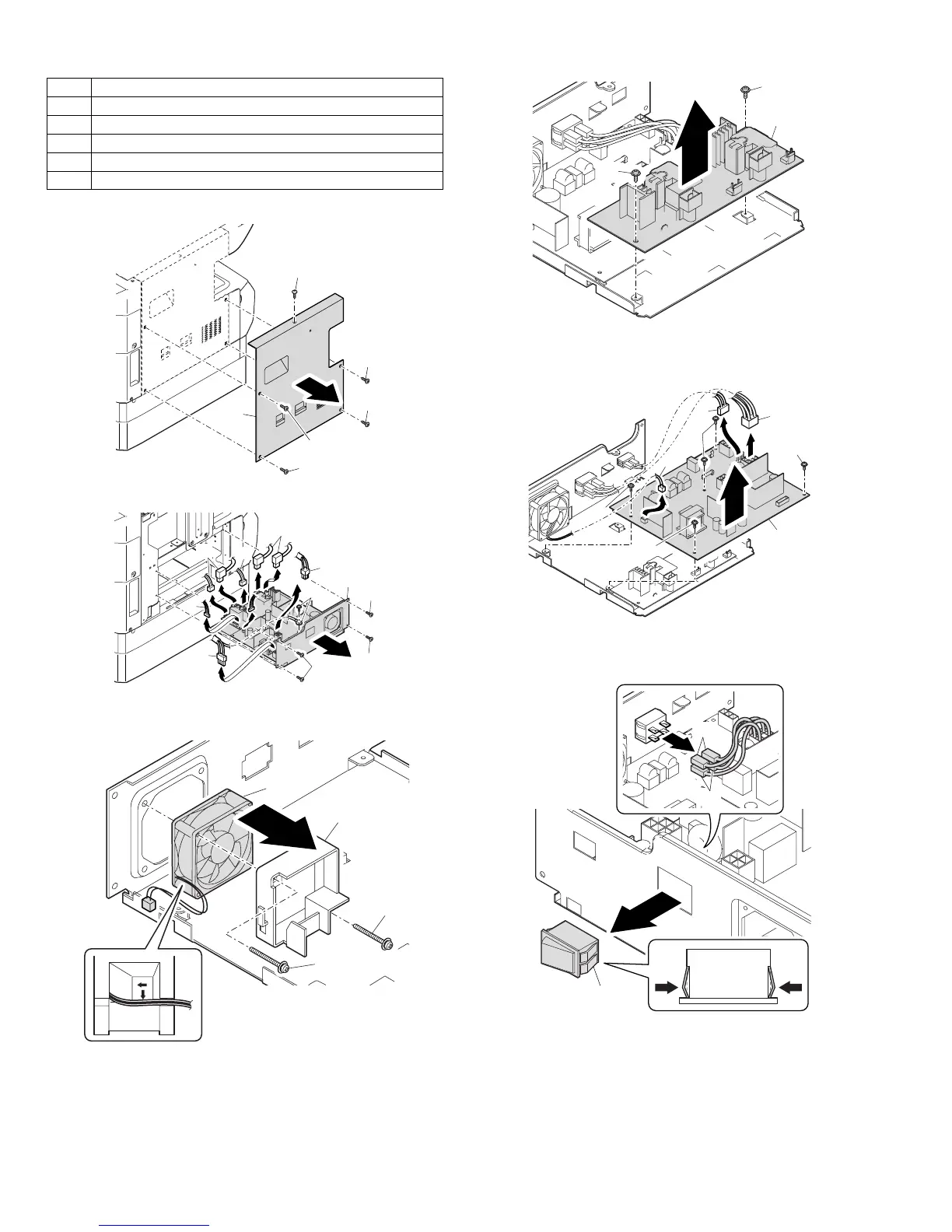

AR-5316 DISASSEMBLY AND ASSEMBLY 11-13
10.Power section
A.Power unit
B. Power fan
C. High voltage P.W.B.
D. Power P.W.B.
E. Power switch
No. Content
A Power unit
BPower fan
C High voltage P.W.B.
DPower P.W.B.
EPower switch
