AR-6020V DISASSEMBLY AND ASSEMBLY 10 – 17

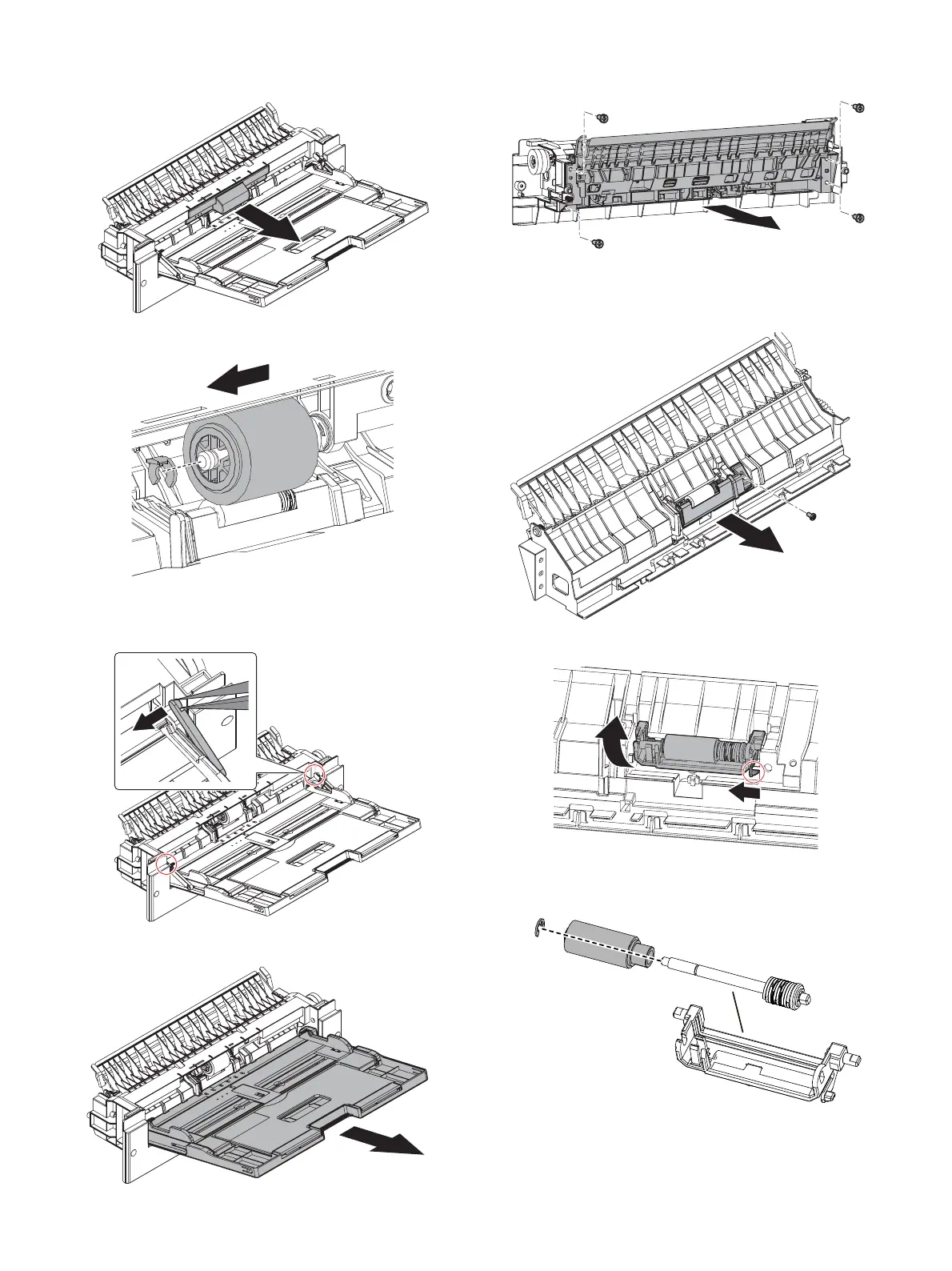

(2) Bypass tray paper feed roller
1) Remove the service cover.
2) Remove the resin E-ring, and remove the bypass tray paper
feed roller.
(3) Bypass tray separation roller
1) Remove the tray arms.
2) Remove the bypass tray.
3) Remove the bypass frame unit.
4) Remove the separation roller cover.
5) Remove the separation roller unit.
6) Remove the E-ring, and remove the paper feed roller.
To Next Page
