AR-6020V DISASSEMBLY AND ASSEMBLY 10 – 7

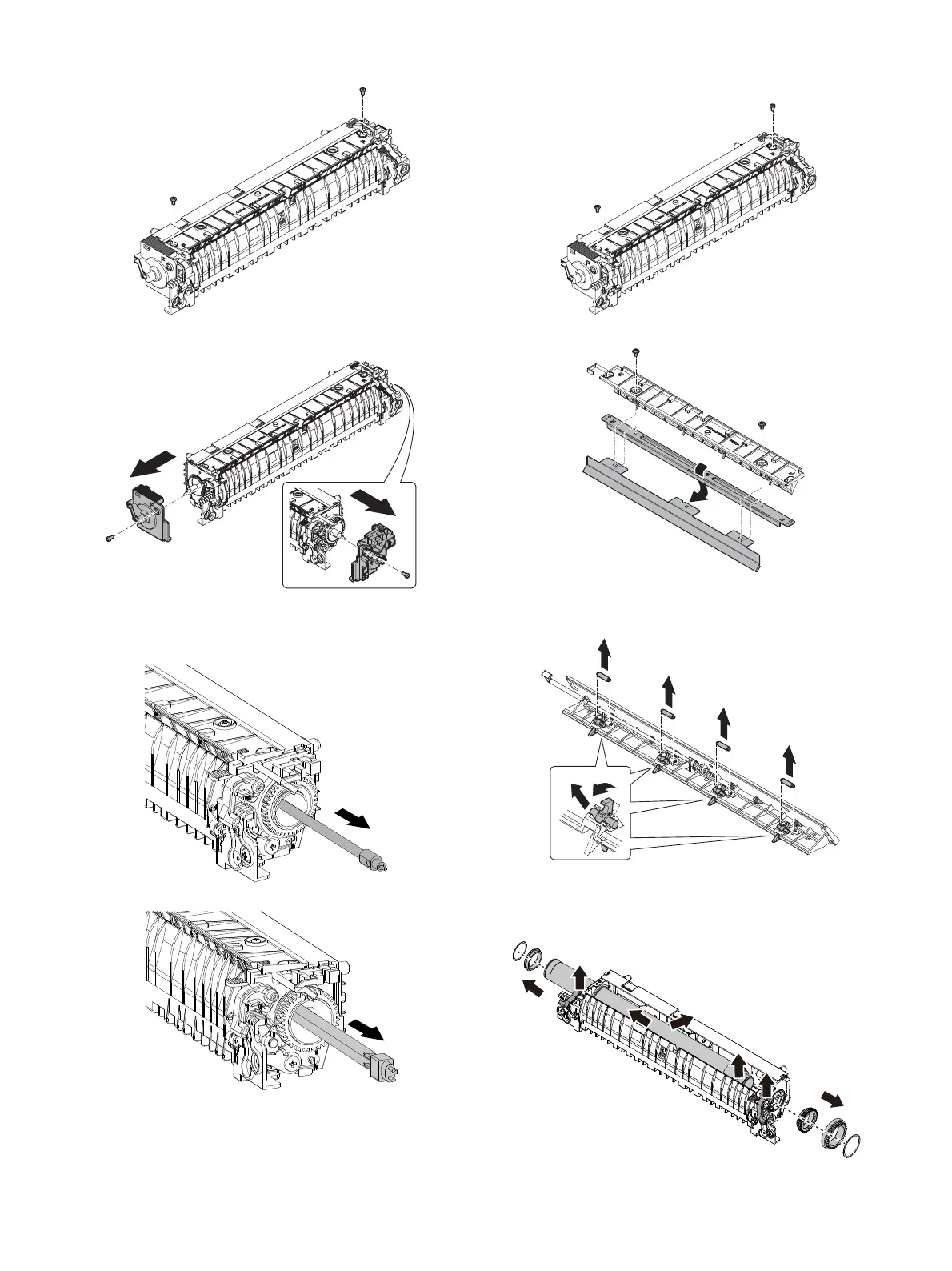

2) Remove the screws fixing the upper fusing PG.
3) Remove the Front/Rear lamp fixing plates.
4) Remove the heat lamp.
(7) Cleaning felt
1) Remove the fusing cleaning plate unit.
2) Remove the cleaning felt.
(8) Upper separation pawl
1) Remove the upper separation pawl.
(9) Heat roller
1) Remove the heat roller by removing the parts in order as
shown in the figure.
To Next Page
