Sharp AR-6020DV

AR-6020V DISASSEMBLY AND ASSEMBLY 10 – 9

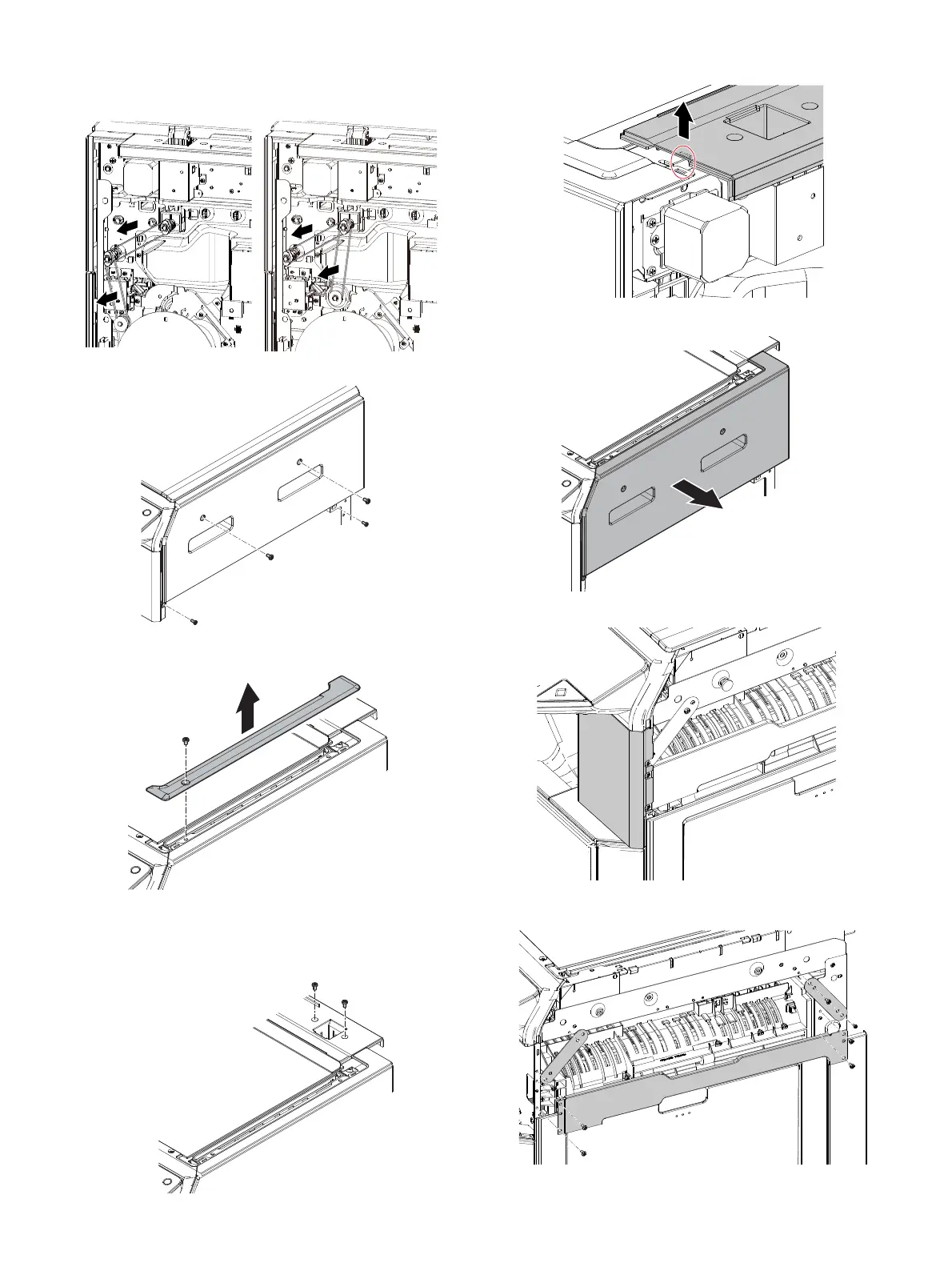

(3) Paper exit unit
1) Remove the duplex drive belts.
2) Remove the screws of right cover.
3) Remove the right OC glass fixing plate.
4) Remove the screws from the upper outside cover rear.
5) Lift up the upper outside cover rear.
6) Remove the right cover.
7) Remove the right front cover.
8) Remove the corner reinforce plate and the right connection
plate.
<D/N model> <S model>
