AR-6020V EXTERNAL VIEWS AND INTERNAL STRUCTURES 4-2

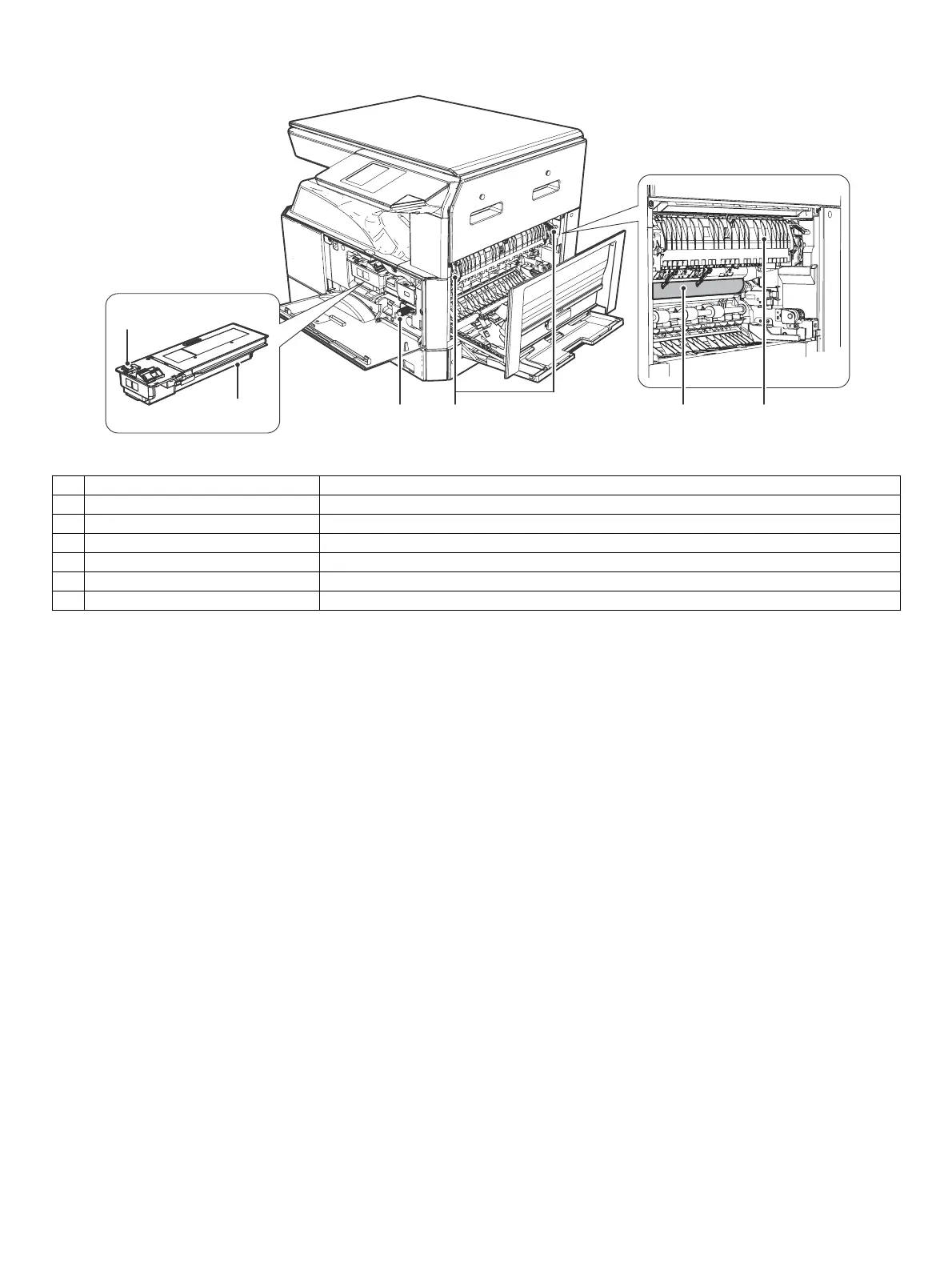

2. Internal view
No. Name Function/Operation
1 Toner cartridge lock release lever To replace the toner cartridge, pull out the toner cartridge while pushing on this lever.
2 Toner cartridge Contains toner.
3 Fusing unit release levers To remove the paper misfeed in the fusing unit, push down on these levers and remove the paper.
4 Roller rotating knob Rotate to remove misfeed paper.
5 Photoconductive drum Images are formed on the photoconductive drum.
6 Fusing unit paper guide Open to remove misfeed paper.
