(10) Pressure roller

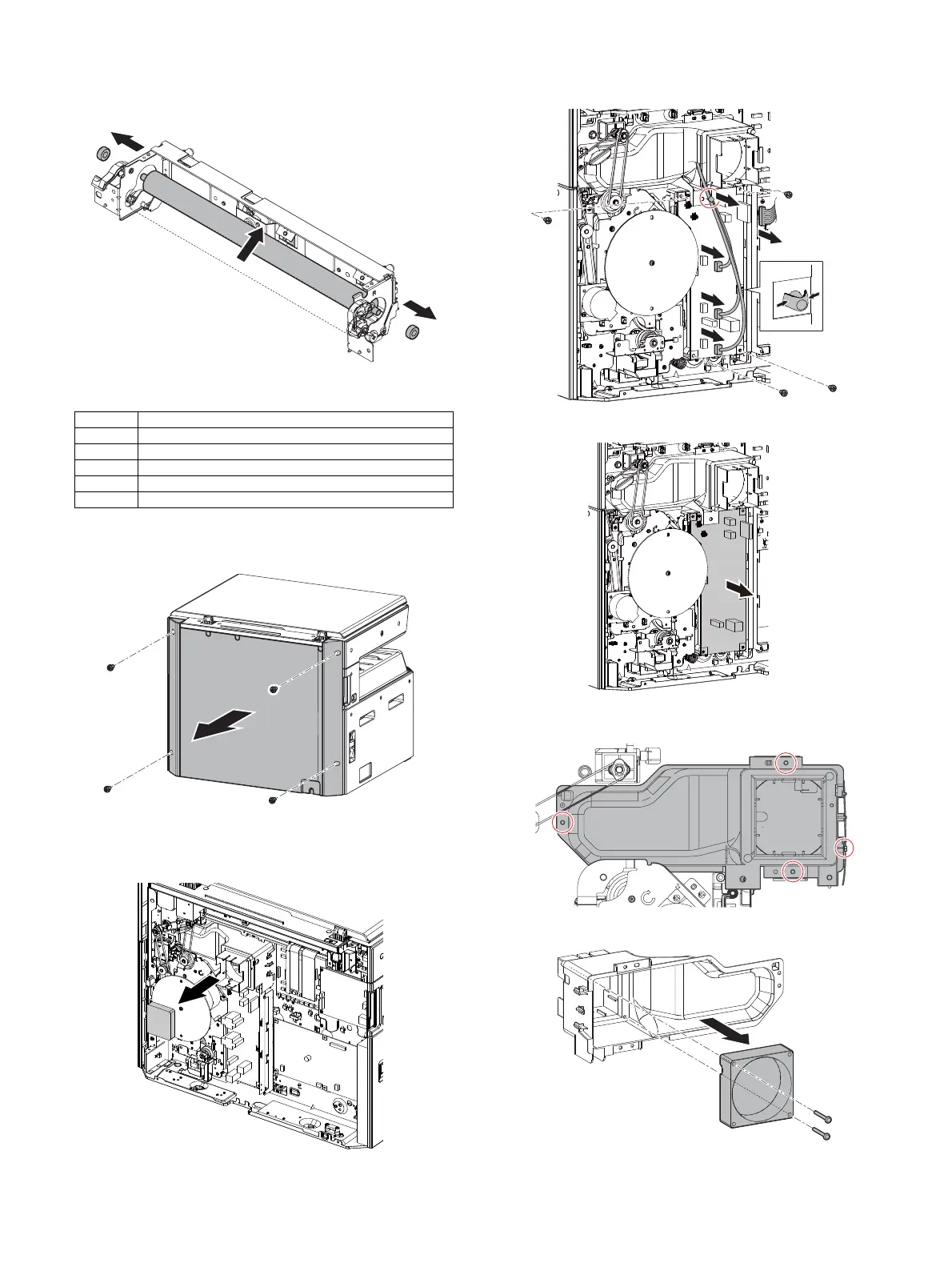

1) Remove the pressure roller.
D. Paper exit section
(1) Ozone filter
1) Remove the rear cabinet.
2) Remove the ozone filter.
(2) Cooling fan
1) Remove the harnesses from the power unit.
2) Remove the HV PWB.
3) Disconnect the harness and remove the cooling fan with the
fan duct.
4) Remove the cooling fan from the fan duct.
No. Contents
1 Ozone filter
2 Cooling fan
3 Paper exit unit
4 Transport roller
5 Paper exit roller
