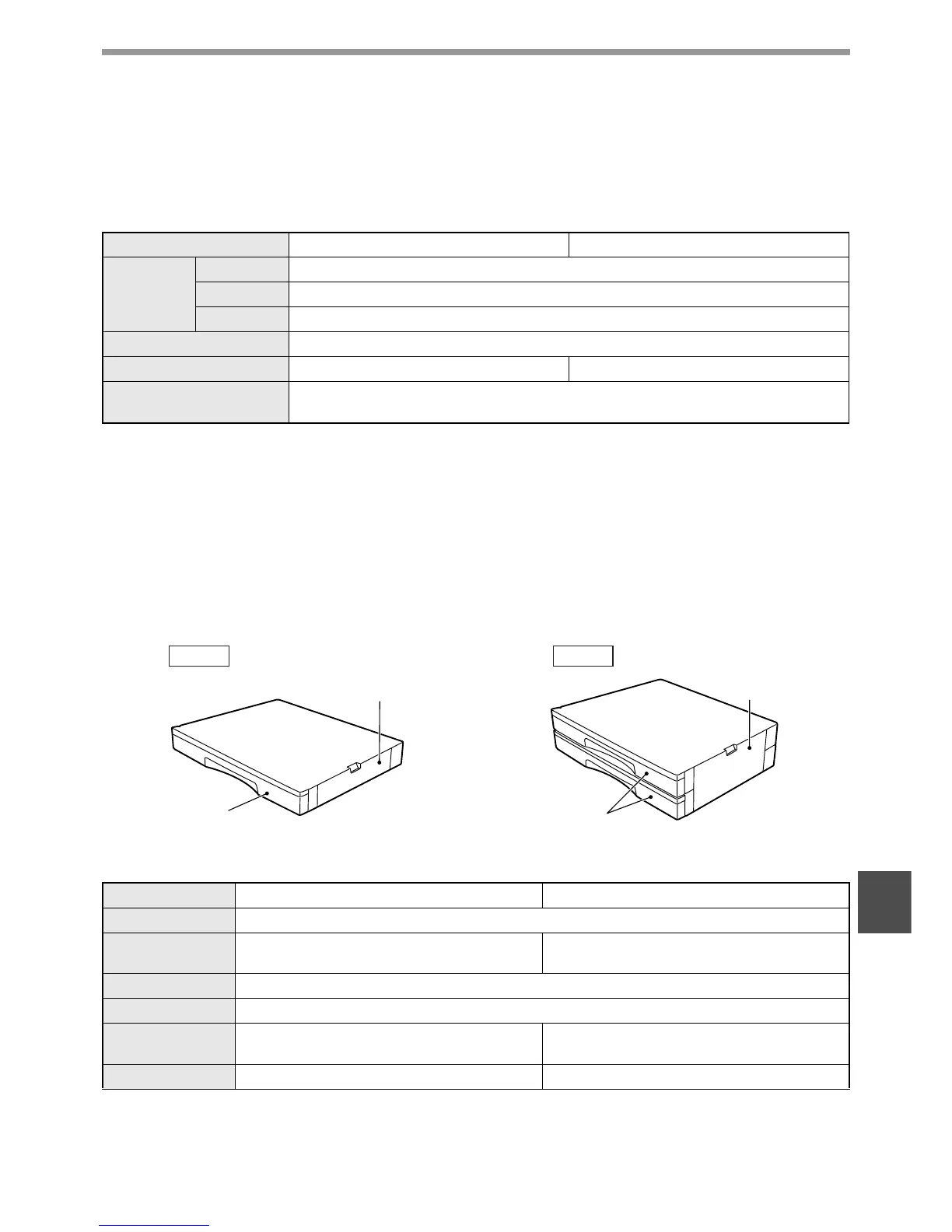

SINGLE PASS FEEDER/
REVERSING SINGLE PASS FEEDER
For the names of the parts of the SPF/RSPF, see "PART NAMES AND FUNCTIONS". (p.8)
Specifications
250-SHEET PAPER FEED UNIT/
2 X 250-SHEET PAPER FEED UNIT
These paper feed units provide the convenience of increased paper capacity for the copier and a greater choice of
paper sizes readily available for copying.
The AR-D24 contains one 250-sheet paper tray and the AR-D25 contains two 250-sheet paper trays.
Part names
Specifications
AR-SP6 AR-RP6
Acceptable
original
Weight 15 lbs. to 24 lbs. (56 g/m
2
to 90 g/m
2
)
Size 5-1/2" x 8-1/2" to 11" x 17"
Capacity Up to 40 sheets (Thickness 5/32" (4mm) and below)
Detectable original sizes 5-1/2" x 8-1/2", 8-1/2" x 11", 8-1/2" x 11"R, 8-1/2" x 14", 11" x 17"
Weight 11.1 lbs. (5.0 kg)12.0 lbs. (5.4 kg)
Dimensions
22-61/64" (W) x 17-9/64" (D) x 5-1/4" (H)
(583 mm (W) x 435 mm (D) x 133 mm (H))
Trays
Side cover
Side cover
Tray
AR-D24
250-sheet paper feed unit
AR-D25
2 x 250-sheet paper feed unit
AR-D24 AR-D25
Paper size 8-1/2" x 11" to 11" x 17"
Paper capacity
One tray with capacity for 250 sheets of
24 lbs. (90 g/m
2
) bond paper
Two trays with capacity for 250 sheets of
24 lbs. (90 g/m
2
) bond paper
Paper weight 15 lbs. to 24 lbs. (56 g/m
2
to 90 g/m
2
)
Power supply Drawn from the machine
Dimensions
23-15/64" (W) x16-27/64" (D) x 3-15/32" (H)
(590 mm (W) x 471 mm (D) x 88 mm (H))
23-15/64" (W) x16-27/64" (D) x 6-27/32" (H)
(590 mm (W) x 471 mm (D) x 173.5 mm (H))
Weight 10.4 lbs. (4.7 kg) 20.1 lbs. (9.1 kg)
