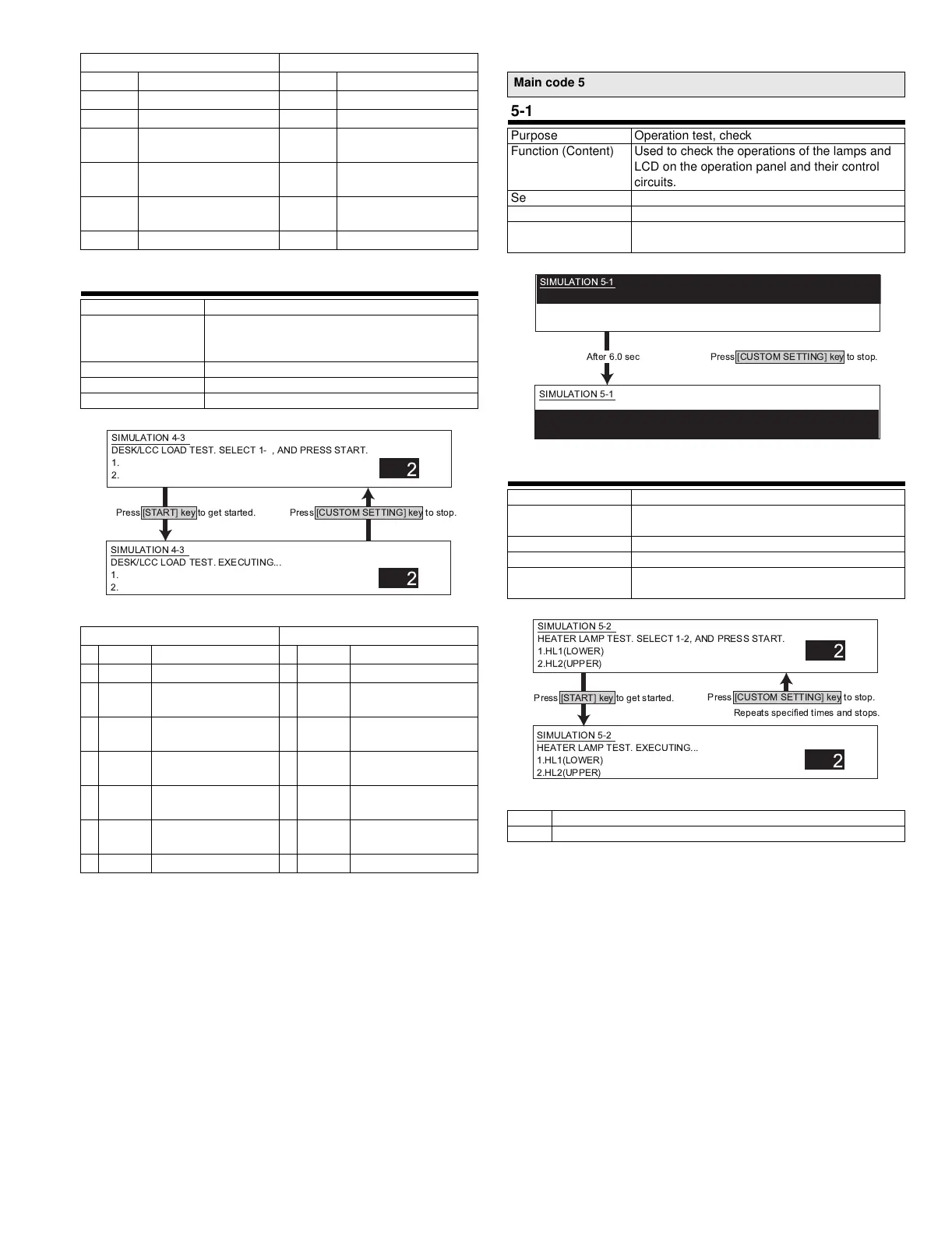

AR-M350 SIMULATIONS 10-13
<List of set values>
<List of set values>
MCSS3 MP tray size detection 3
MCSS2 MP tray size detection 2
MCSS1 MP tray size detection 1
MCSPD MP tray remaining quantity
detection
MCLUD MP tray upper limit
detection
MCPED MP tray paper empty
detection
DPFD1 MP tray transport detection
4-3
Purpose Operation test, check
Function (Content) Used to check the operation under load in the
paper feed section (desk paper feed/large
capacity trays) and their control circuits.
Section Paper feed
Item Operation
Operation/Procedure Select with 10 digit key pad.
3-tray desk LCC
1 DLUM2 Desk lift-up motor 2 1 TLUM2 LCC lift-up motor 2
2 DLUM1 Desk lift-up motor 1 2 TLUM1 LCC lift-up motor 1
3 MCLUM Desk multi lift-up
motor
3 MCLUM LCC multi lift-up
motor
4 DPFCL Desk paper transport
clutch
4 TPFCL LCC transport clutch
5 DPCL2 Desk paper feed
clutch 2
5 TPCL2 LCC paper feed
clutch 2
6 DPCL1 Desk paper feed
clutch 1
6 TPCL1 LCC paper feed
clutch 1
7 MCPCL Desk multi paper feed
clutch
7 MCPCL LCC multi paper feed
clutch
8 DMM Desk transport motor 8 TMM LCC transport motor
3-tray desk LCC
SIMULATION 4-3
DESK/LCC LOAD TEST. SELECT 1- , AND PRESS START.
1.
2.
2
SIMULATION 4-3
DESK/LCC LOAD TEST. EXECUTING...
1.
2.
2
Press [START] key to get started.
Press [CUSTOM SETTING] key to stop.
Main code 5
5-1
Purpose Operation test, check
Function (Content) Used to check the operations of the lamps and
LCD on the operation panel and their control
circuits.
Section Operation (display, operation)
Item Operation
Operation/Procedure All LEDs are ON. The LCD contrast changes
Max/Min every 2sec.
5-2
Purpose Operation test, check
Function (Content) Used to check the operations of the heater lamp
and its control circuit.
Section Fusing
Item Operation
Operation/Procedure Select with 10 digit key pad. The lamp repeat
ON/OFF every 500ms 5 times.
1 Heater lamp 1 (Lower)
2 Heater lamp 2 (Upper)
SIMULATION 5-1
SIMULATION 5-1
After 6.0 sec
Press [CUSTOM SETTING] key to stop.
SIMULATION 5-2
HEATER LAMP TEST. SELECT 1-2, AND PRESS START.
1.HL1(LOWER)
2.HL2(UPPER)
2
SIMULATION 5-2
HEATER LAMP TEST. EXECUTING...
1.HL1(LOWER)
2.HL2(UPPER)
2
Press [START] key to get started.
Press [CUSTOM SETTING] key to stop.
Repeats specified times and stops.
        !"# $%&
