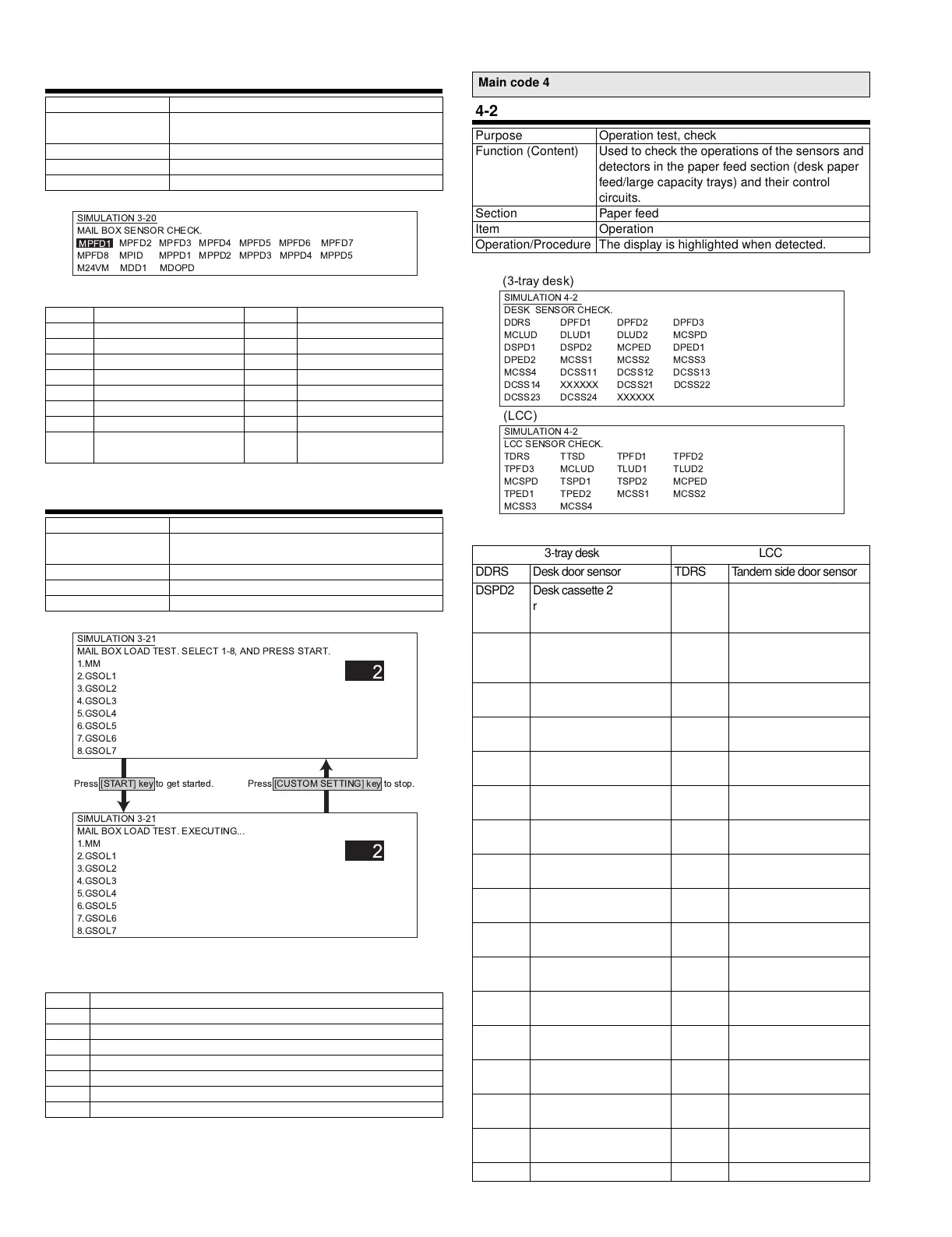

AR-M350 SIMULATIONS 10-12
<List of display values>
<List of set values>
<List of display values>
3-20
Purpose Operation test, check
Function (Content) Used to check the mail bin stacker (AR-MS1)
sensor.
Section Mail bin stacker
Item Operation
Operation/Procedure The display is highlighted when detected.
MPFD1 Tray 1 paper full detection MPPD1 Paper transport sensor 1
MPFD2 Tray 2 paper full detection MPPD2 Paper transport sensor 2
MPFD3 Tray 3 paper full detection MPPD3 Paper transport sensor 3
MPFD4 Tray 4 paper full detection MPPD4 Paper transport sensor 4
MPFD5 Tray 5 paper full detection MPPD5 Paper transport sensor 5
MPFD6 Tray 6 paper full detection M24VM 24V power supply
MPFD7 Tray 7 paper full detection MDD1 Jam cancel door
MPFD8 Tray 8 paper full detection MDOPD Interface unit door
MPID Interface unit paper entry
detection
3-21
Purpose Operation test, check
Function (Content) Used to check the operations of the mail bin
stacker loads.
Section Mail bin stacker
Item Operation
Operation/Procedure Select with 10 digit key pad.
1 Main motor
2 Gate solenoid 1
3 Gate solenoid 2
4 Gate solenoid 3
5 Gate solenoid 4
6 Gate solenoid 5
7 Gate solenoid 6
8 Gate solenoid 7
SIMULATION 3-20
MAIL BOX SENSOR CHECK.
MPFD1 MPFD2 MPFD3 MPFD4 MPFD5 MPFD6 MPFD7
MPFD8 MPID MPPD1 MPPD2 MPPD3 MPPD4 MPPD5
M24VM MDD1 MDOPD
MPFD1
SIMULATION 3-21
MAIL BOX LOAD TEST. SELECT 1-8, AND PRESS START.
1.MM
2.GSOL1
3.GSOL2
4.GSOL3
5.GSOL4
6.GSOL5
7.GSOL6
8.GSOL7
2
SIMULATION 3-21
MAIL BOX LOAD TEST. EXECUTING...
1.MM
2.GSOL1
3.GSOL2
4.GSOL3
5.GSOL4
6.GSOL5
7.GSOL6
8.GSOL7
2
Press [START] key to get started.
Press [CUSTOM SETTING] key to stop.
Main code 4
4-2
Purpose Operation test, check
Function (Content) Used to check the operations of the sensors and
detectors in the paper feed section (desk paper
feed/large capacity trays) and their control
circuits.
Section Paper feed
Item Operation
Operation/Procedure The display is highlighted when detected.
3-tray desk LCC
DDRS Desk door sensor TDRS Tandem side door sensor
DSPD2 Desk cassette 2
remaining paper quantity
sensor
TTSD Tandem tray sensor
DSPD1 Desk cassette 1
remaining paper quantity
sensor
TLUD2 Tandem tray 2
upper limit sensor
DCSS24 Desk cassette 2
paper rear edge sensor 4
TLUD1 Tandem tray 1
upper limit sensor
DCSS23 Desk cassette 2
paper rear edge sensor 3
TSPD2 Tandem tray 2
remaining quantity sensor
DCSS22 Desk cassette 2
paper rear edge sensor 2
TSPD1 Tandem tray 1
remaining quantity sensor
DCSS21 Desk cassette 2
paper rear edge sensor 1
TPED2 Tandem tray 2
paper sensor
DLUD2 Desk cassette 2
upper limit sensor
TPED1 Tandem tray 1
paper sensors
DPED2 Desk cassette 2
paper sensor
TPFD3 Tandem paper transport
sensor 3
DPFD3 Desk paper transport
sensor 3
TPFD2 Tandem paper transport
sensor 2
DCSS14 Desk cassette 1
paper rear edge sensor 4
MCSS4 MP tray size detection 4
DCSS13 Desk cassette 1
paper rear edge sensor 3
MCSS3 MP tray size detection 3
DCSS12 Desk cassette 1
paper rear edge sensor 2
MCSS2 MP tray size detection 23
DCSS11 Desk cassette 1
paper rear edge sensor 1
MCSS1 MP tray size detection 1
DLUD1 Desk cassette 1
upper limit sensor
MCSPD MP tray remaining quantity
detection
DPED1 Desk cassette 1
paper sensor
MCLUD MP tray upper limit
detection
DPFD2 Desk paper transport
sensor 2
MCPED MP tray paper empty
detection
MCSS4 MP tray size detection 4 TPFD1 MP tray transport detection
SIMULATION 4-2
DESK SENSOR CHECK.
DDRS DPFD1 DPFD2 DPFD3
MCLUD  DLUD1 DLUD2 MCSPD
DSPD1 DSPD2 MCPED DPED1
DPED2 MCSS1 MCSS2 MCSS3
MCSS4 DCSS11 DCSS12 DCSS13
DCSS14 XXXXXX DCSS21 DCSS22
DCSS23 DCSS24 XXXXXX
SIMULATION 4-2
LCC SENSOR CHECK .
TDRS TTSD TPFD1 TPFD2
TPFD3 MCLUD TLUD1 TLUD2
MCSPD TSPD1 TSPD2 MCPED
TPED1 TPED2 MCSS1 MCSS2
MCSS3 MCSS4
(3-tray desk)
(LCC)
 '       !"# $%&
