AR-M350 SIMULATIONS 10-36
<List of set values 1>
<List of display values 1>
<List of set values 2>
<List of set values 3>
Main code 46
46-2
Purpose Adjustment
Function (Content) Used to adjust the copy density in the copy mode
(binary, auto, text, text/photo, photo mode).
An adjustment with this simulation affects all the
reading density adjustment values.
Section
Item Picture quality
Operation/Procedure The exposure mode to be set is selected.
(Auto adjustment)
1) The current set value is highlighted on the
right side of each item. In this screen, be sure
to select "1: COPY START." (Set value: 1)
2) Set the exposure level with 10 digit key pad.
Press P to store the set value.
(Default: 50, set range: 0 - 99)
3) Press START, and copying is started and the
set value is stored. (Display value 1)
4) Select a paper feed tray. (Set value 2)
5) Select an exposure level. (Set value 3)

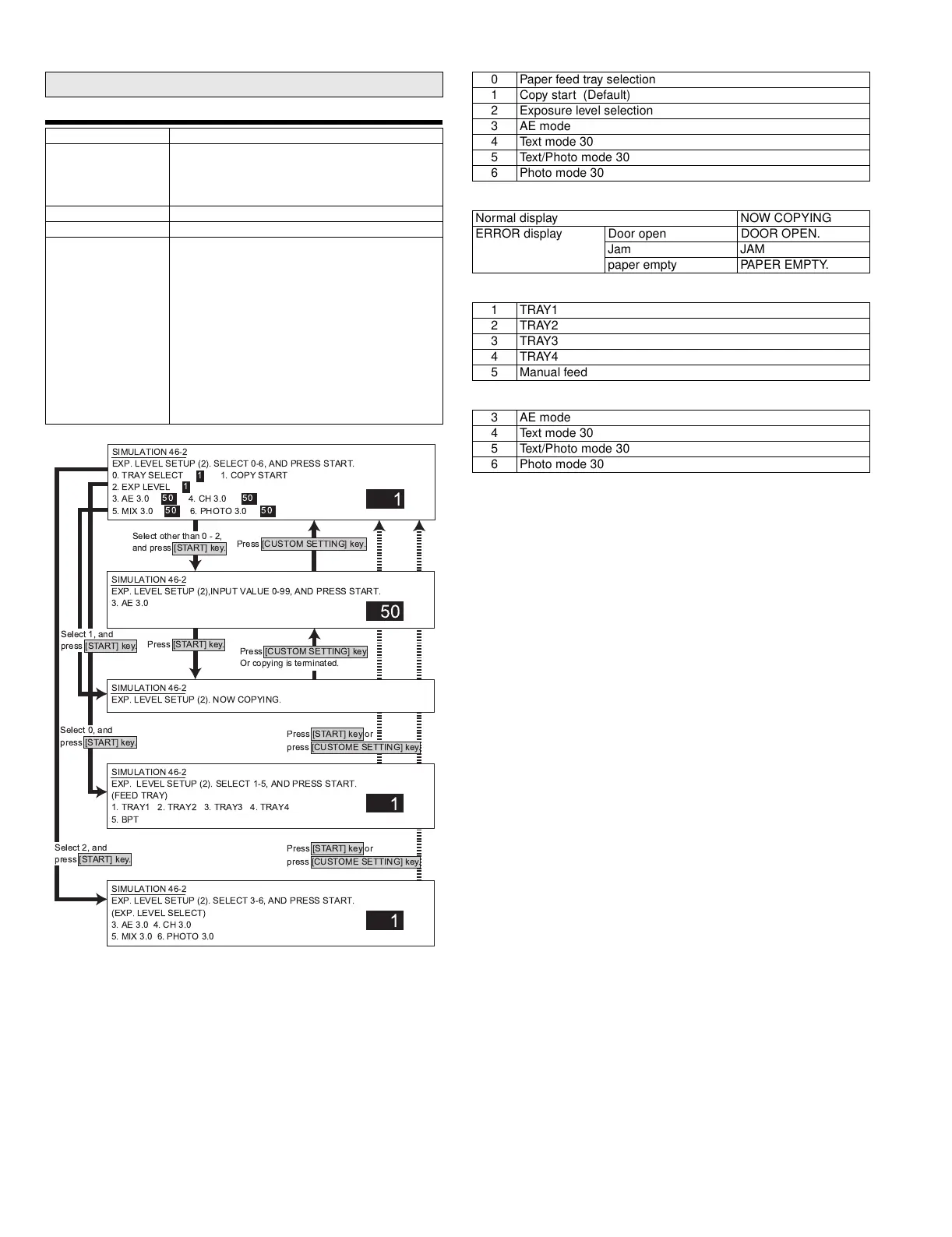

SIMULATION 46-2
EXP. LEVEL SETUP (2). SELECT 0-6, AND PRESS START.
0. TRAY SELECT 1. COPY START
2. EXP LEVEL
3. AE 3.0 4. CH 3.0
5. MIX 3.0 6. PHOTO 3.0
1
50
SIMULATION 46-2
EXP. LEVEL SETUP (2). SELECT 1-5, AND PRESS START.
(FEED TRAY)
1. TRAY1 2. TRAY2 3. TRAY3 4. TRAY4
5. BPT
1
SIMULATION 46-2
EXP. LEVEL SETUP (2). NOW COPYING.
SIMULATION 46-2
EXP. LEVEL SETUP (2). SELECT 3-6, AND PRESS START.
(EXP. LEVEL SELECT)
3. AE 3.0 4. CH 3.0
5. MIX 3.0 6. PHOTO 3.0
1
50 50
1
1
50 50
SIMULATION 46-2
EXP. LEVEL SETUP (2),INPUT VALUE 0-99, AND PRESS START.
3. AE 3.0
Press [CUSTOM SETTING] key.
Select other than0-2,
and press [START] key.
Select 1, and
press [START] key.
Select 2, and
press [START] key.
Select 0, and
press [START] key.
Press [START] key.
Press [START] key or
press [CUSTOME SETTING] key.
Press [START] key or
press [CUSTOME SETTING] key.
Press [CUSTOM SETTING] key.
Or copying is terminated.
0 Paper feed tray selection
1 Copy start (Default)
2 Exposure level selection
3 AE mode
4 Text mode 30
5 Text/Photo mode 30
6 Photo mode 30
Normal display NOW COPYING
ERROR display Door open DOOR OPEN.
Jam JAM
paper empty PAPER EMPTY.
1TRAY1
2TRAY2
3TRAY3
4TRAY4
5 Manual feed
3 AE mode
4 Text mode 30
5 Text/Photo mode 30
6 Photo mode 30
!" #$%&
