AR-M350 SIMULATIONS 10-48
<List of set values 1>
<List of display values 1>
<List of set values 2>
<List of set values 3>

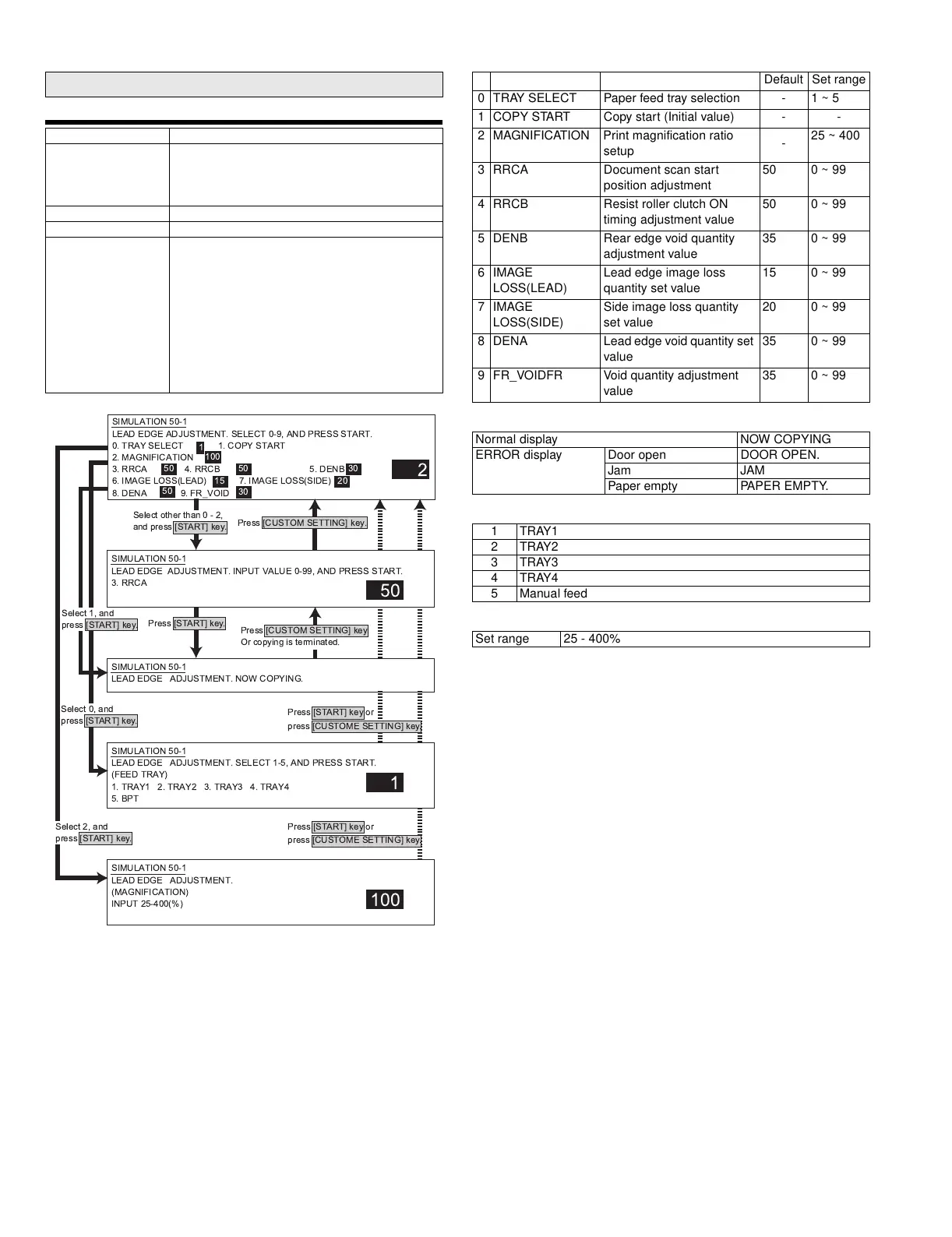

Main code 50
50-1
Purpose Adjustment
Function (Content) Used to adjust the copy image position and the
void area (image loss) on print paper in the copy
mode. (A similar adjustment can be made with
SIM 50-2 (simple method).)
Section
Item Picture quality
Operation/Procedure Perform the copy lead edge adjustment.
1) The current set value is highlighted on the
right of each item. In this screen, be sure to
select "1: COPY START." (Set value: 1)
2) Enter the correction value with 10 digit key
pad.
Press P to store the set value.
3) Press START to start copying and store the
set value. (Display value: 1)
4) Set the scan magnification ratio. (Set value: 3)
SIMULATION 50-1
LEAD EDGE ADJUSTMENT. SELECT 0-9, AND PRESS START.
0. TRAY SELECT 1. COPY START
2. MAGNIFICATION
3. RRCA 4. RRCB 5. DENB
6. IMAGE LOSS(LEAD) 7. IMAGE LOSS(SIDE)
8. DENA 9. FR_VOID
2
SIMULATION 50-1
LEAD EDGE ADJUSTMENT. INPUT VALUE 0-99, AND PRESS START.
3. RRCA
50
SIMULATION 50-1
LEAD EDGE ADJUSTMENT. SELECT 1-5, AND PRESS START.
(FEED TRAY)
1. TRAY1 2. TRAY2 3. TRAY3 4. TRAY4
5. BPT
1
SIMULATION 50-1
LEAD EDGE ADJUSTMENT. NOW COPYING.
SIMULATION 50-1
LEAD EDGE ADJUSTMENT.
(MAGNIFICATION)
INPUT 25-400(%)
100
15 20
100
1
50
50
50 30
30
Press [CUSTOM SETTING] key.
Select other than0-2,
and press [START] key.
Select 1, and
press [START] key.
Select 2, and
press [START] key.
Select 0, and
press [START] key.
Press [START] key.
Press [START] key or
press [CUSTOME SETTING] key.
Press [START] key or
press [CUSTOME SETTING] key.
Press [CUSTOM SETTING] key.
Or copying is terminated.
Default Set range
0 TRAY SELECT Paper feed tray selection - 1 ~ 5
1 COPY START Copy start (Initial value) - -
2 MAGNIFICATION Print magnification ratio
setup
-
25 ~ 400
3 RRCA Document scan start
position adjustment
50 0 ~ 99
4 RRCB Resist roller clutch ON
timing adjustment value
50 0 ~ 99
5 DENB Rear edge void quantity
adjustment value
35 0 ~ 99
6IMAGE
LOSS(LEAD)
Lead edge image loss
quantity set value
15 0 ~ 99
7IMAGE
LOSS(SIDE)
Side image loss quantity
set value
20 0 ~ 99
8 DENA Lead edge void quantity set
value
35 0 ~ 99
9 FR_VOIDFR Void quantity adjustment
value
35 0 ~ 99
Normal display NOW COPYING
ERROR display Door open DOOR OPEN.
Jam JAM
Paper empty PAPER EMPTY.
1TRAY1
2TRAY2
3TRAY3
4TRAY4
5 Manual feed
Set range 25 - 400%
 (   !" #$%&'
