AR-M350 SIMULATIONS 10-49
<List of set values 1>
<List of display values 1>
<List of set values 2>
<List of set values 3>
50-2
Purpose Adjustment
Function (Content) Used to adjust the copy image position and the
void area (image loss) on print paper in the copy
mode.
(This simulation is a simpler procedure compared
the similar adjustment using SIM 50-1.)
Section
Item Picture quality
Operation/Procedure Perform the copy lead edge adjustment.
1) The current set value is highlighted on the
right of each item. In this screen, be sure to
select "1: COPY START." (Set value: 1)
2) Enter the correction value with 10 digit key
pad.
Press P to store the set value.
3) Press START to start copying and store the
set value. (Display value: 1)
4) Set the scan magnification ratio.
(Set value: 3)

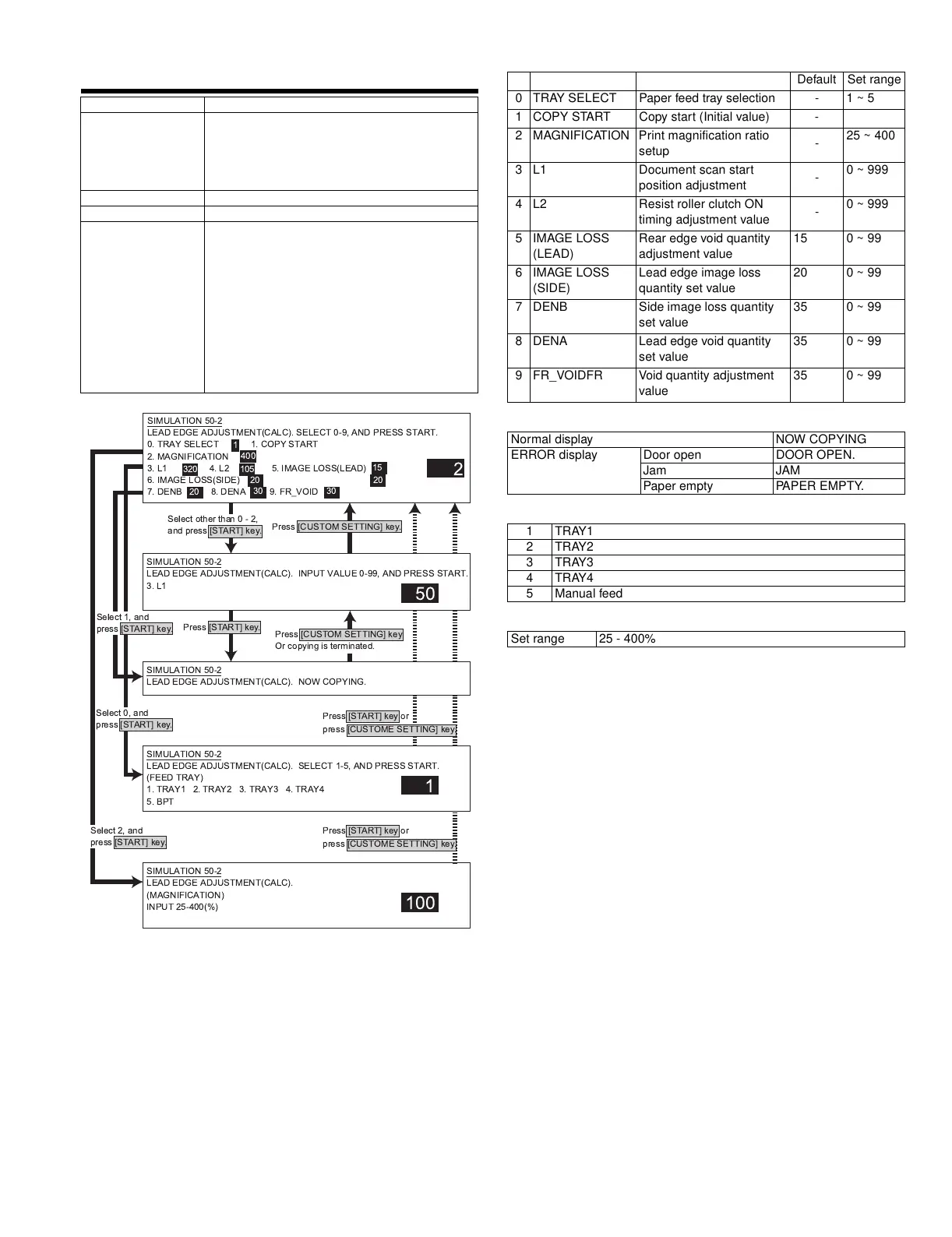

SIMULATION 50-2
LEAD EDGE ADJUSTMENT(CALC). SELECT 0-9, AND PRESS START.
0. TRAY SELECT 1. COPY START
2. MAGNIFICATION
3. L1 4. L2 5. IMAGE LOSS(LEAD)
6. IMAGE LOSS(SIDE)
7. DENB 8. DENA 9. FR_VOID
2
SIMULATION 50-2
LEAD EDGE ADJUSTMENT(CALC). INPUT VALUE 0-99, AND PRESS START.
3. L1
50
SIMULATION 50-2
LEAD EDGE ADJUSTMENT(CALC). SELECT 1-5, AND PRESS START.
(FEED TRAY)
1. TRAY1 2. TRAY2 3. TRAY3 4. TRAY4
5. BPT
1
SIMULATION 50-2
LEAD EDGE ADJUSTMENT(CALC). NOW COPYING.
SIMULATION 50-2
LEAD EDGE ADJUSTMENT(CALC).
(MAGNIFICATION)
INPUT 25-400(%)
100
20
20
20
400
1
320 105
15
30 30
Press [CUSTOM SETTING] key.
Select other than0-2,
and press [START] key.
Select 1, and
press [START] key.
Select 2, and
press [START] key.
Select 0, and
press [START] key.
Press [START] key.
Press [START] key or
press [CUSTOME SETTING] key.
Press [START] key or
press [CUSTOME SETTING] key.
Press [CUSTOM SETTING] key.
Or copying is terminated.
Default Set range
0 TRAY SELECT Paper feed tray selection - 1 ~ 5
1 COPY START Copy start (Initial value) -
2 MAGNIFICATION Print magnification ratio
setup
-
25 ~ 400
3 L1 Document scan start
position adjustment
-
0 ~ 999
4 L2 Resist roller clutch ON
timing adjustment value
-
0 ~ 999
5 IMAGE LOSS
(LEAD)
Rear edge void quantity
adjustment value
15 0 ~ 99
6 IMAGE LOSS
(SIDE)
Lead edge image loss
quantity set value
20 0 ~ 99
7 DENB Side image loss quantity
set value
35 0 ~ 99
8 DENA Lead edge void quantity
set value
35 0 ~ 99
9 FR_VOIDFR Void quantity adjustment
value
35 0 ~ 99
Normal display NOW COPYING
ERROR display Door open DOOR OPEN.
Jam JAM
Paper empty PAPER EMPTY.
1TRAY1
2TRAY2
3TRAY3
4TRAY4
5 Manual feed
Set range 25 - 400%
 )   !" #$%&'
