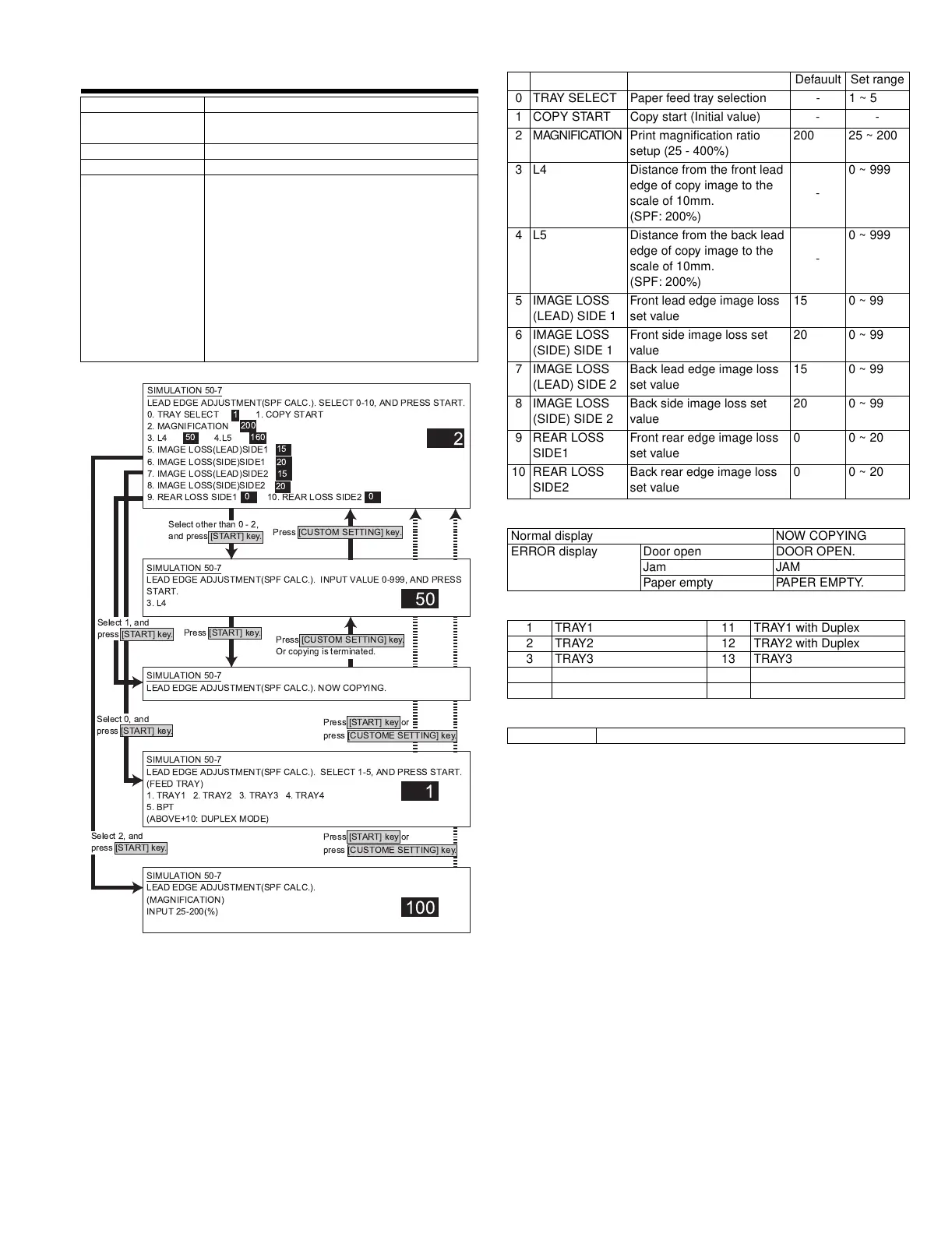

AR-M350 SIMULATIONS 10-51
<List of set values 1>
<List of display values 1>
<List of set values 2>
<List of set values 3>
50-7
Purpose Adjustment
Function (Content) Copy lead edge adjustment (Simple method)
(DSPF)
Section
Item Picture quality
Operation/Procedure Perform the SPF copy lead edge adjustment.
(Simple method)
1) The current set value is highlighted on the
right of each item. In this screen, be sure to
select "1: COPY START." (Set value: 1)
2) Enter the correction value with 10 digit key
pad.
Press P to store the set value.
3) Press START to start copying and store the
set value. (Display value: 1)
4) Select a paper feed tray. (Set value 2)
5) Set the scan magnification ratio. (Set value: 3)
SIMULATION 50-7
LEAD EDGE ADJUSTMENT(SPF CALC.). SELECT 0-10, AND PRESS START .
0. TRAY SELECT 1. COPY START
2. MAGNIFICATION
3. L4 4.L5
5. IMAGE LOSS(LEAD)SIDE1
6. IMAGE LOSS(SIDE)SIDE1
7. IMAGE LOSS(LEAD)SIDE2
8. IMAGE LOSS(SIDE)SIDE2
9. REAR LOSS SIDE1 10. REAR LOSS SIDE2
2
SIMULATION 50-7
LEAD EDGE ADJUSTMENT(SPF CALC.). INPUT VALUE 0-999, AND PRESS
START.
3. L4
50
SIMULATION 50-7
LEAD EDGE ADJUSTMENT(SPF CALC.). SELECT 1-5, AND PRESS START.
(FEED TRAY)
1. TRAY1 2. TRAY2 3. TRAY3 4. TRAY4
5. BPT
(ABOVE+10: DUPLEX MODE)
1
SIMULATION 50-7
LEAD EDGE ADJUSTMENT(SPF CALC.). NOW COPYING.
SIMULATION 50-7
LEAD EDGE ADJUSTMENT(SPF CALC.).
(MAGNIFICATION)
INPUT 25-200(%)
100
20
200
160
1
15
20
15
50
0 0
Press [CUSTOM SETTING] key.
Select other than0-2,
and press [START] key.
Select 1, and
press [START] key.
Select 2, and
press [START] key.
Select 0, and
press [START] key.
Press [START] key.
Press [START] key or
press [CUSTOME SETTING] key.
Press [START] key or
press [CUSTOME SETTING] key.
Press [CUSTOM SETTING] key.
Or copying is terminated.
Defauult Set range
0 TRAY SELECT Paper feed tray selection - 1 ~ 5
1 COPY START Copy start (Initial value) - -
2 MAGNIFICATION Print magnification ratio
setup (25 - 400%)
200 25 ~ 200
3 L4 Distance from the front lead
edge of copy image to the
scale of 10mm.
(SPF: 200%)
-
0 ~ 999
4 L5 Distance from the back lead
edge of copy image to the
scale of 10mm.
(SPF: 200%)
-
0 ~ 999
5 IMAGE LOSS
(LEAD) SIDE 1
Front lead edge image loss
set value
15 0 ~ 99
6 IMAGE LOSS
(SIDE) SIDE 1
Front side image loss set
value
20 0 ~ 99
7 IMAGE LOSS
(LEAD) SIDE 2
Back lead edge image loss
set value
15 0 ~ 99
8 IMAGE LOSS
(SIDE) SIDE 2
Back side image loss set
value
20 0 ~ 99
9 REAR LOSS
SIDE1
Front rear edge image loss
set value
00 ~ 20
10 REAR LOSS
SIDE2
Back rear edge image loss
set value
00 ~ 20
Normal display NOW COPYING
ERROR display Door open DOOR OPEN.
Jam JAM
Paper empty PAPER EMPTY.
1 TRAY1 11 TRAY1 with Duplex
2 TRAY2 12 TRAY2 with Duplex
3 TRAY3 13 TRAY3 with Duplex
4 TRAY4 14 TRAY4 with Duplex
5 Manual feed 15 Manual feed with Duplex
Set range 25 - 200%
 *   !" #$%&'
