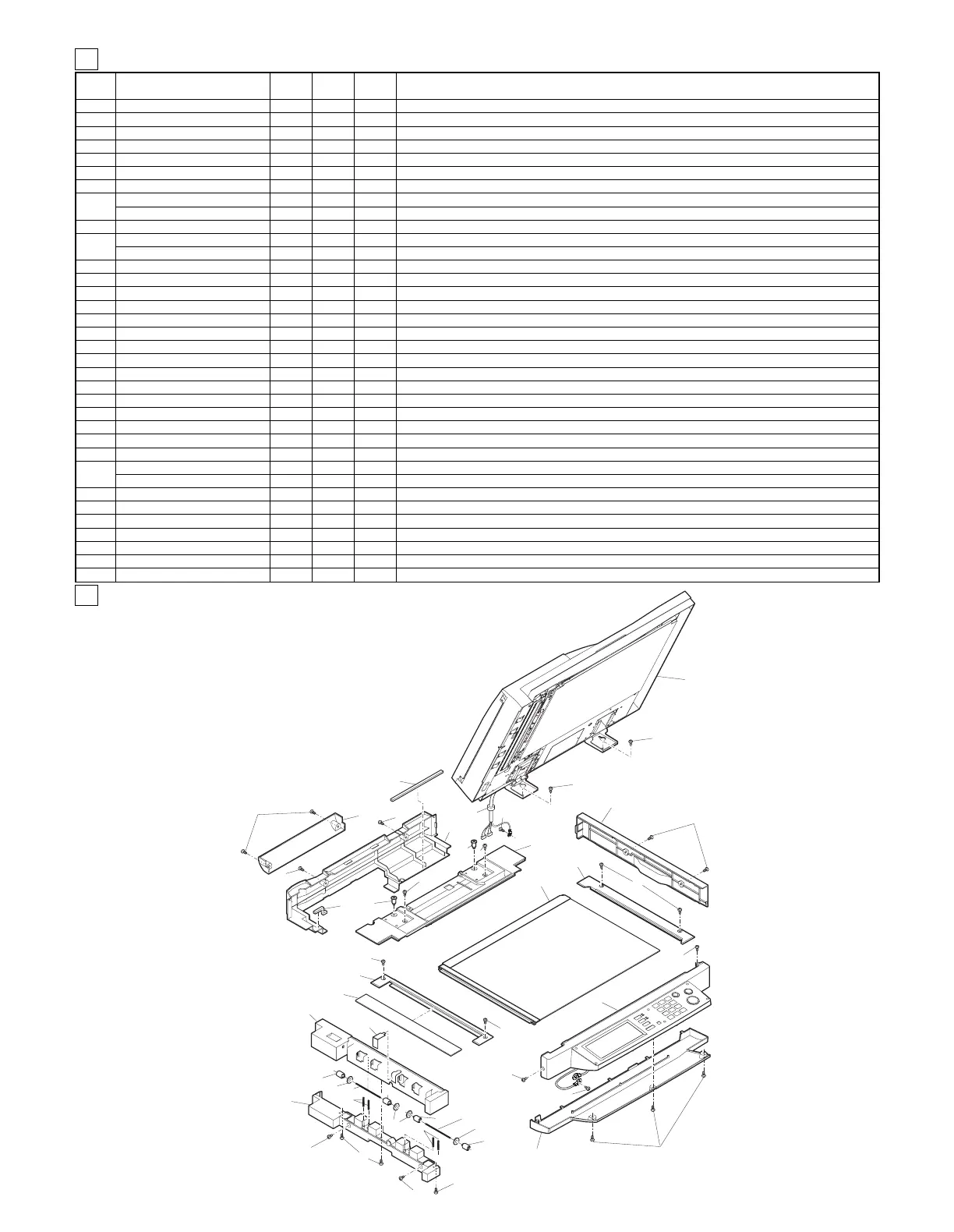

27 Exteriers[AR-EF1]
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
RANK
DESCRIPTION
1
GCAB-0943FCZZ AK
N D Rear lower cabinet
2
XHBSE40P08000 AA
CScrew (4×8)
3
PCOVP1566FCZZ AS
N D Upper cabinet rear cover
4
LX-BZ0842FCZZ AG
C SPF screw
5
GCAB-0942FCZZ AP
N D Upper cabinet rear
6
LX-BZ0776FCZZ AG
C Screw R
7
GCAB-0945FCZZ AR
N D Upper cabinet right
8
DUNT-7133DSZZ CZ
N E DSPF unit
DUNT-7132DSZZ CY
N E SPF unit
9
LFIX-0544FCZZ AG
N D Glass fixing right
10
CGLSP0003RS51 BC
N B Table glass (Japan)
CGLSP0003RS52 BF
N B Table glass EX (Except Japan)
11
XBTSC50P16000 AA
CScrew (5×16)
12
LFIX-0543FCZZ AG
N D Glass fixing left
13
CGLSP0102DS51 BF
N B White datum glass unit
14
XHBSD30P06000 AA
CScrew (3×6)
15
XBTSE40P06000 AA
CScrew (4×6)
16
PGIDM1900FCZZ AR
N C Delivery upper PG SPF
17
PGIDM1901FCZZ AQ
N C Delivery lower PG
18
NROLP0011QSZZ AD
C Delivery support roller
19
PSPO-0001QSZZ AB
C Sponge
20
NSFTZ2601FCZZ AH
N C Delivery support roller shaft 1
21
MSPRC2865FCZ1 AB
N C Delivery support spring
22
XEBSE30P08000 AA
CScrew (3×8)
23
PCOVP1624FCZZ AC
N D Stanp cover
24
LX-BZ0465FCZZ AA
CScrew (4×6)
25
XHBSD30P08000 AA
CScrew (3×8)
26
CPNLC0244DS51 CV
N D MFP operation panel (Japan)
CPNLC0244DS52 CT
N D MFP operation panel (Except Japan)
27
LDAIU0627FCZZ AZ
N D Operation base
28
XEBSE40P08000 AA
CScrew (4×8)
29
PMLT-1256FCZZ AC
N C Dustproof cushion 1
30
PMLT-1257FCZZ AB
N C Dustproof cushion 2
31
RCORF0041FCZZ AH
N C Core (UFR25-12-15)
