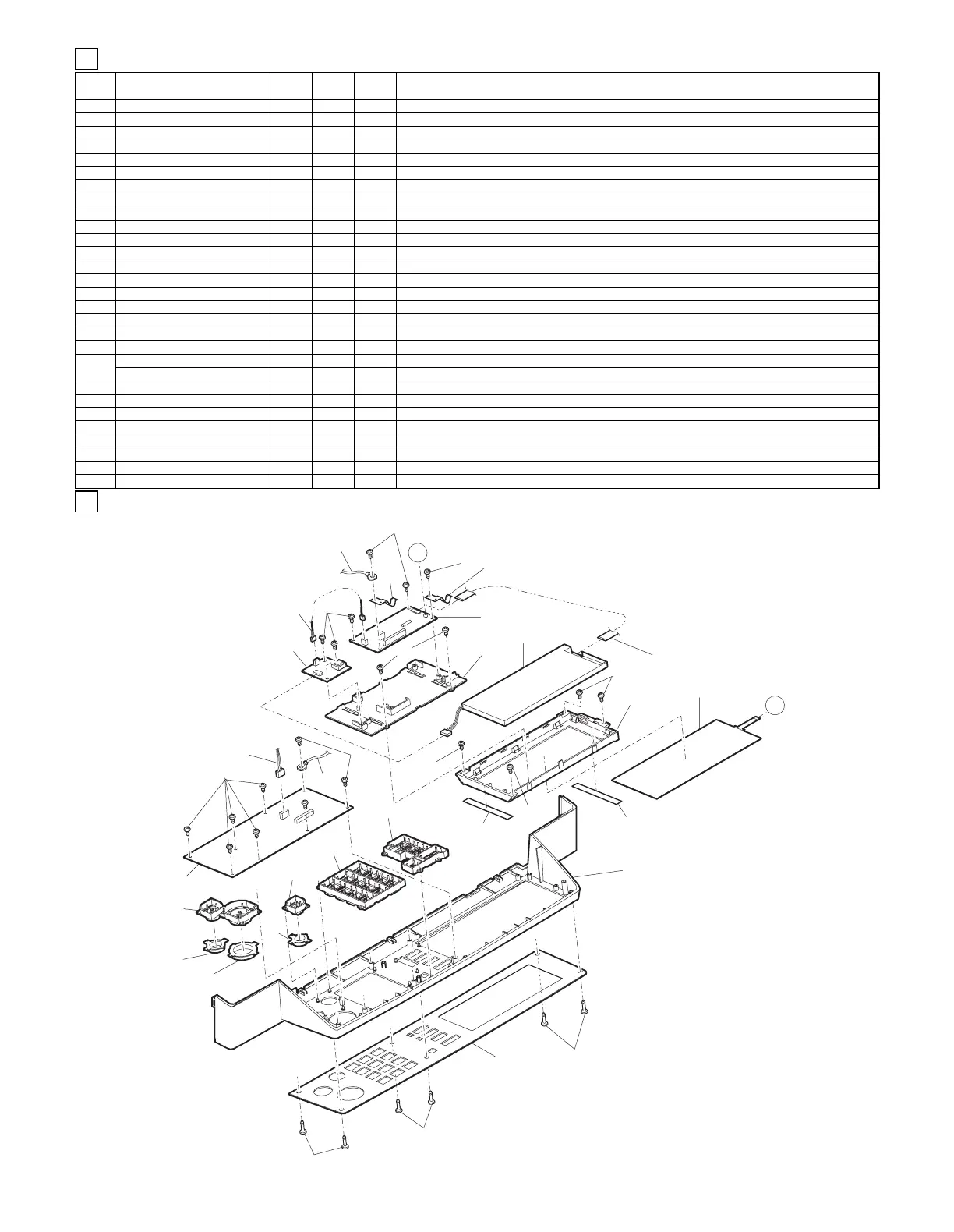

29 Operation panel unit[AR-EF1]
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
RANK
DESCRIPTION
1
CPWBN1471FCE1 BF
N E LVDS PWB
2
MSPRP3009FCZZ AD
N C LCD earth plate spring
3
XEPSD30P08000 AA
CScrew (3×8)
4
CPWBF1470DS51 BN
N E Inverter PWB
5
DHAI-3192FCZZ AD
N C INV interface harness
6
DHAI-3191FCZZ AF
N C ORS PD harness
7
LHLDZ1459FCZZ AE
N C LCD holder B
8
VVLLM065HB1-1 CB
N B LCD mojule
9
LHLDZ1458FCZZ AF
N C LCD holder A
10
HPNLH0246FCZZ BF
N D Touch panel
11
CPWBF1469FCE1 BN
N E MFP OPE PWB
12
CBTN-0253FC01 AN
N E Change key Assy
13
CBTN-0252FC01 AP
N E Ten key Assy
14
CFILW0284FC01 AF
N D C key smoke Assy
15
CBTN-0251FC01 AF
N E C key Assy
16
CFILW0282FC01 AF
N D Copy key smoke Assy
17
CFILW0283FC01 AF
N D CA key smoke Assy
18
CBTN-0250FC01 AH
N E Copy key Assy
19
HPNLC0244FCZZ AZ
N D Operation panel A
20
CPNLC0245FC01 AY
N D Operation panel B (Japan)
CPNLC0245FC02 AY
N D Operation panel B EX-E (Except Japan)
21
LPINS0014QSGZ AC
N C Fixing pin C
22
DHAI-3193FCZZ AC
N C Panel earth harness
24
PSHEZ4906FCZZ AC
N C Touch panel sheet
25
QCNW-0166FCZZ AE
N C LCD interface FFC
