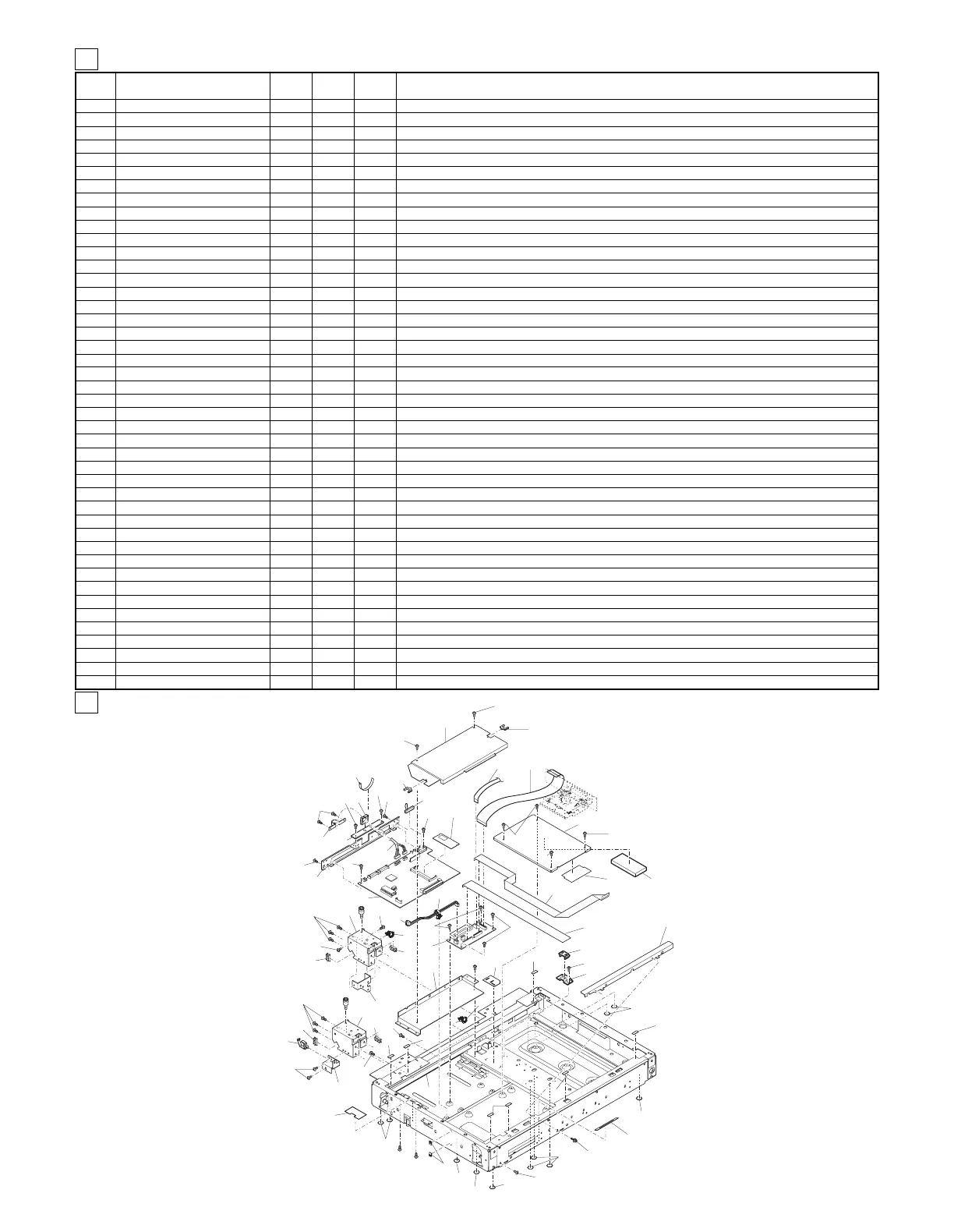

30 Optical unit 1[AR-EF1]
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
RANK
DESCRIPTION
1
PCOVP1599FCZZ AG
N D Harness cover B
2
XHBSD30P04000 AA
CScrew (3×4)
3
LHLDW1115FCZZ AD
C Edge bushing
4
QCNW-0168FCZZ AE
N C CL interface FFC
5
QCNW-0167FCZZ AM
N C CCD interface FFC
6
PCOVP1600FCZZ AF
N D Harness cover C
7
PSHEP4932FCZZ AD
N C Harness fixing sheet 4
9
XBBSE30P06000 AA
CScrew (3×6)
10
LPLTM5723FCZZ AG
N C SCN PWB fixing plate
11
XHBSE40P08000 AA
CScrew (4×8)
12
VHI28F081L02C BB
N B Scanner flash unit
13
CPWBN1450FCE1 BF
N E Scanner control PWB
14
LHLDW1115FCZZ AD
C Edge bushing
15
QCNW-0165FCZZ AH
N C MFPOP interface FFC
16
QCNW-0181FCZZ AH
N C LVDS interface FFC
17
XBBSD40P06000 AA
CScrew (4×6)
18
CPWBN1451DS51 BF
N E Scanner interface PWB
19
DHAI-3152FCZZ AF
N C Stanp interface harness
20
LPLTM5720FCZZ AK
N C OC fixing plate
22
LPLTM5927FCZZ AF
N C Dry heater fixing plate
24
LPLTM5877FCZZ AE
N C Base rainforce plate
25
XHBSD30P06000 AA
CScrew (3×6)
26
PCOVP1598FCZZ AL
N D Harness cover A
27
PSHEZ4842FCZZ AD
N C Harness fixing sheet 2
28
DHAI-3303FCZZ BC
N C MFP interface cable
29
PGUMS0283FCZ1 AA
N C Table glass cushion
30
LDAIU0610FCZZ AE
D Harness fixing base
31
LRALM0183FCZZ AG
N C MB-B rail F
32
PSHEZ4843FCZZ AC
N C Harness fixing sheet 3
34
LHLDW1007LCZZ AD
C Mini clamp (MN-1)
35
LHLDW0595FCZZ AC
C Edge holder (EDS2)
36
LHLDW1264FCZZ AD
C Wire holder (LWS-8S-2.5W)
37
LBNDJ0043FCZZ AA
C Snap band (SG-130)
38
DHAI-3153FCZZ AC
N C PNC harness
39
LFIX-0537FCZZ AD
C Harness fixing plate
40
PSHEZ4841FCZ1 AD
N C Harness fixing sheet 1
41
LRALM0184FCZZ AG
N C MB-B rail R
42
LX-BZ0004QSZZ AB
CScrew
43
PSHEZ4836FCZZ AB
N C Screw protect sheet
44
LPLTP5960FCZZ AE
N C SCN cable fixing plate
45
LHLDW1201CCZZ AA
C SK holder
46
LFIX-0569FCZZ AD
N C SCN fixing cable
47
PMLT-1282FCZZ AE
N C FFC fixing cushion
