Sharp AR-M350U - Page 252

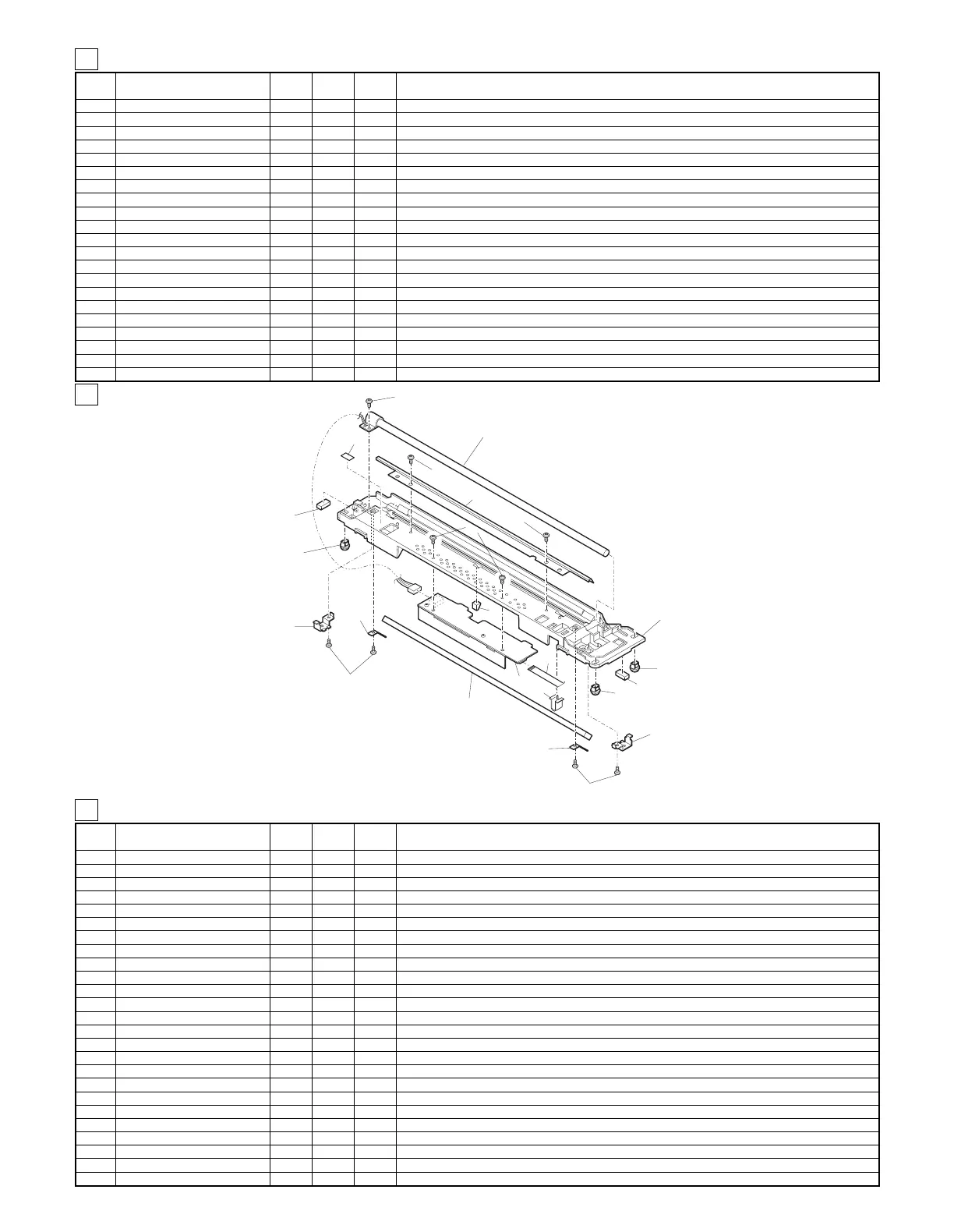

32 Lamp unit[AR-EF1]
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
RANK
DESCRIPTION
1
! RLMPD0658FCZZ BA
N B Lamp
2
XEBSD30P08000 AA
CScrew (3×8)
3
PREFL0172FCZZ AK
B Reflector
4
XBBSD30P12000 AA
CScrew (3×12)
5
LDAIU0619FCZZ AT
N C Lamp base
6
PCUSU0203FCZZ AE
C Protection cushion
7
QCNW-0168FCZZ AE
N C CL interface FFC
8
MSLI-0138FCZZ AC
C Slider
9
CPWBF1449FC31 BH
N E Inverter PWB
10
PCUSF0334FCZZ AP
C Mirror cushion
11
LSTYM0261FCZZ AB
N C Wire support plate
12
LFIX-0545FCZZ AC
N C CL read harness fixing
13
PMIR-0164FCZZ AP
N B 1st mirror
14
MSPRP2825FCZZ AC
N C Mirror spring
15
TLABZ4335FCZZ AB
D HV caution label
(Unit)
901
! CDAIU0619DS51 BF
N E Lamp unit
32 Lamp unit[AR-EF1]
33 DSPF Assembly section[AR-EF1]
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
RANK
DESCRIPTION
1
PSHEZ4845FCZZ AV
N C OC mat
2
PMLT-1286FCZZ AD
N C OC cushion
3
PCOVP1595FCZZ AG
N D Rack cover
4
XHBSE30P06000 AA
CScrew (3×6)
5
PCOVP1615FCZZ AE
N D Length detect cover N
6
XEBSE40P10000 AA
CScrew (4×10)
7
MHNG-0208FCZZ BA
N C SPF hinge R
9
PCOVP1518FCZZ AE
D ICU ROM cover
10
LPLTM5887FCZZ AL
N C Hinge joint plate
11
XHBSE40P08000 AA
CScrew (4×8)
12
LFIX-0568FCZZ AC
N C Original detect fixing
13
PTPE-0265FCZZ AC
N C Cover tape
14
PCOVP1644FCZZ AD
N C F cover L
15
PGUMS0298FCZZ AC
N C Cover rubber L
16
CPWBF1501DS51 BN
N E SPF VR PWB
17
LPLTP5743FCZZ AF
C Width detect fixing plate
18
XEBSD30P08000 AA
CScrew (3×8)
19
MSPRP2830FCZZ AA
C Width detect spring
20
PGUMS0296FCZZ AD
N C Cushion
21
NGERR1386FCZZ AE
C Width detect rack
22
NGERP1385FCZZ AF
C Width detect pinion
23
XEPSD30P06X00 AA
CScrew (3×6X)
24
PCOVP1645FCZZ AH
N C F cover R
25
PGUMS0299FCZZ AH
N C Cover rubber R
26
CPWBF1459DS51 BN
N E SPF PWB
1
2
3
4
5
6
8
9
11
13
14
15
2
2
6
8
2
2
11
14
8
7
12
10
FCP05051
– 11 –
