Sharp AR-M350U - Page 253

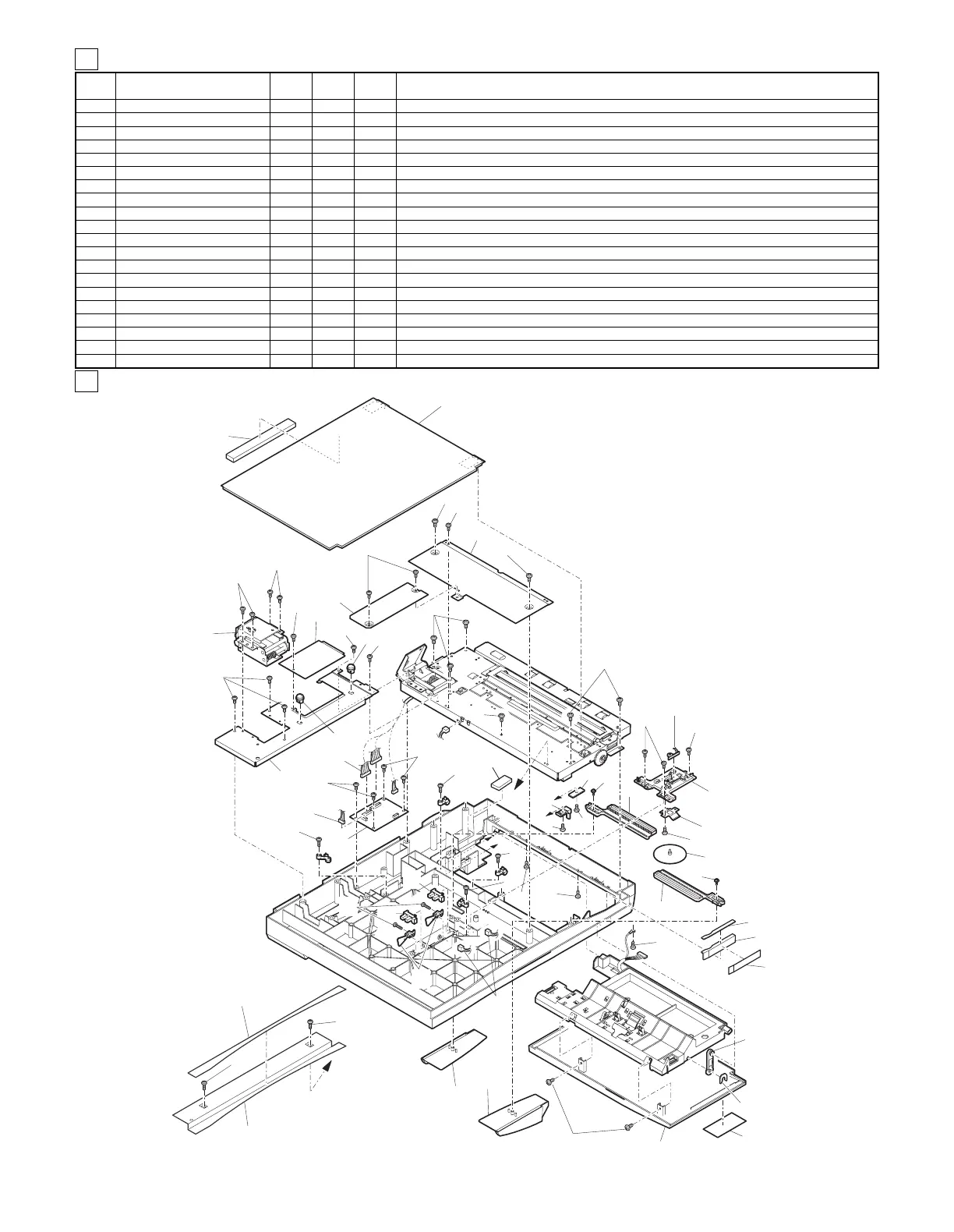

33 DSPF Assembly section[AR-EF1]
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
RANK
DESCRIPTION
27
DHAI-3166FCZZ AY
N C DSPF body interface harness
28
XESSE30P08000 AA
CScrew (3×8)
29
DHAI-3161FCZZ AK
N C SPF size detect harness
30
XEBSE30P10000 AA
CScrew (3×10)
33
VHPGP1A73A+-1 AG
B Photo sensor (GP1A73A)
34
MLEVP0794FCZZ AC
N C Length detect actuator
35
XEBSD40P16000 AA
CScrew (4×16)
37
LPLTP5778FCZZ AG
N D Adjust plate R
38
LPLTP5777FCZZ AG
N D Adjust plate F
39
PCOVP1549FCZZ AU
N D Upper cover
40
XEBSE30P08000 AA
CScrew (3×8)
41
MARMP0243FCZZ AD
C Manual feeding tray arm
42
PRNGP0090FCZZ AA
C Ring (E5)
43
LPLTM2573FCZ1 AD
C ADF MG plate
44
LPLTP5938FCZZ AC
N C Shading plate N
45
TLABH4440FCZZ AF
D Original read label (Japan)
