Sharp AX-1100R Service Manual

AX1100(R)
5 – 2

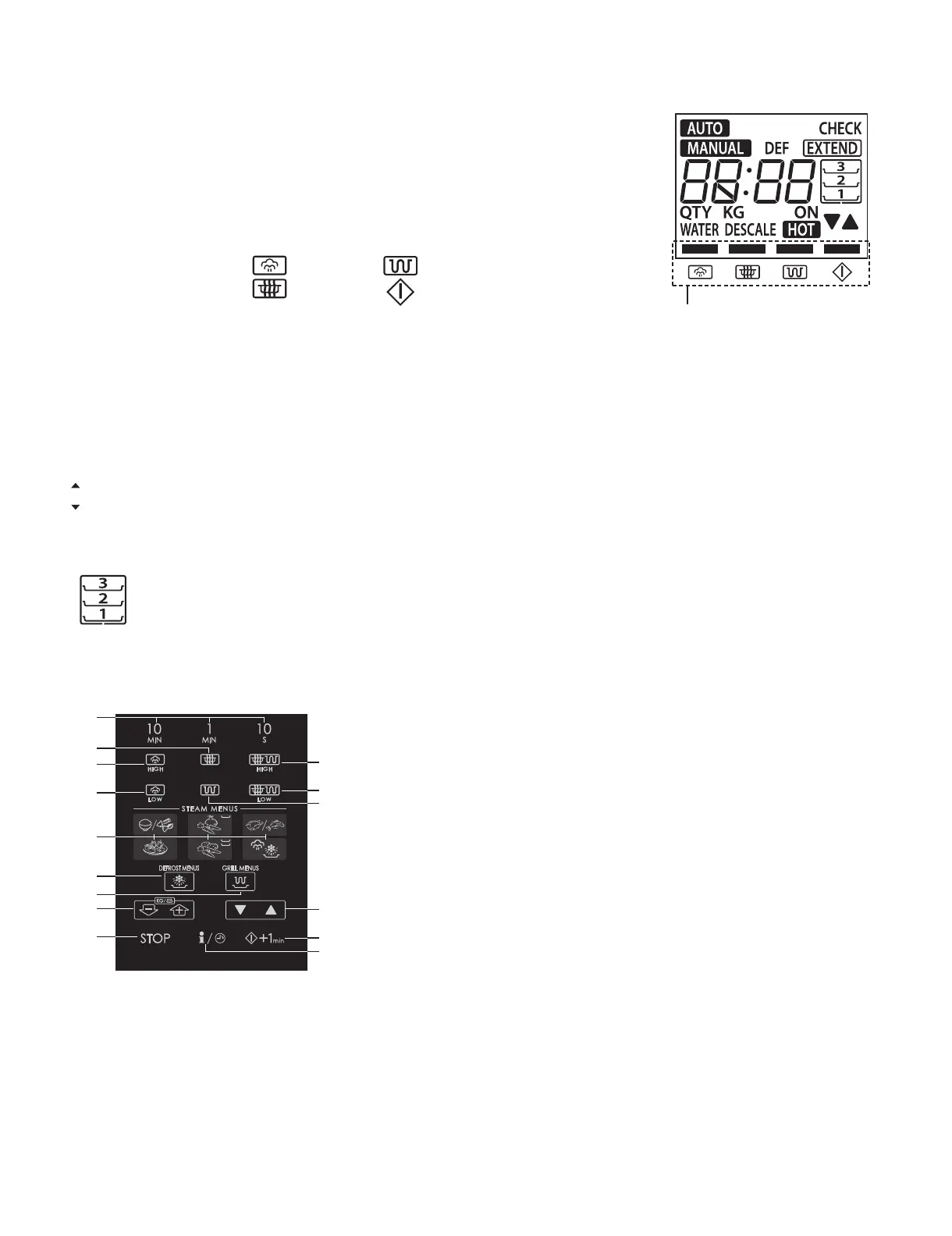

[2] CONTROL PANEL
1. Display information:
The display shows useful information including cooking time and cooking mode.
1. Cooking mode & START indicators
The indicator, just above each symbol, will fl ash or light up during the operation.
You can press a concerned key when the indicators are flashing.
When the indicators light up on the display, they mean that each cooking mode is selected or the oven
is operating in each cooking mode.
AUTO: Automatic cooking is selected or in progress.
MANUAL: Manual cooking is selected or in progress.
CHECK: Some action is necessary (e.g. turn over, stir).
DEF: Steam Defrost or Auto Defrost Menus is selected or in progress.
ON: The oven is in operation.
EXTEND: Cooking time can be extended.
HOT: The oven is very hot.
(MORE): More time adjustment is selected for automatic cooking.
(LESS): Less time adjustment is selected for automatic cooking.
DESCALE: Descaling is necessary.
WATER: Water is necessary. When this indicator is appeared on the display, the oven is operating in the menu using water.
Tray position indicators: The position of the tray(s) for automatic cooking and manual steam cooking.
3: Upper position
2: Lower position
1: Oven Floor
2. Operating keys:
1.TIME keys
2.MICROWAVE POWER LEVEL* key
3.STEAM HIGH key
4.STEAM LOW key
5.COMBI HIGH* key
6.COMBI LOW* key
7.GRILL* key
8.STEAM MENUS keys
9.AUTO DEFROST MENUS* key
10.AUTO GRILL MENUS* key
11.WEIGHT DOWN/UP keys
12.STOP/CLEAR key
13.LESS/MORE keys
14.START/AUTO MINUTE key
15.INFO/KITCHEN TIMER key
* This mode does not use steam.
1
: Steam
: Microwave
:Grill
: Start
8
1
2
3
4
5
6
7
9
10
11
12
15
14
13
