AX1
100(R)
6 – 1
AX1
100(R)
Service Manual
CHAPTER 6.
OPERA
TION

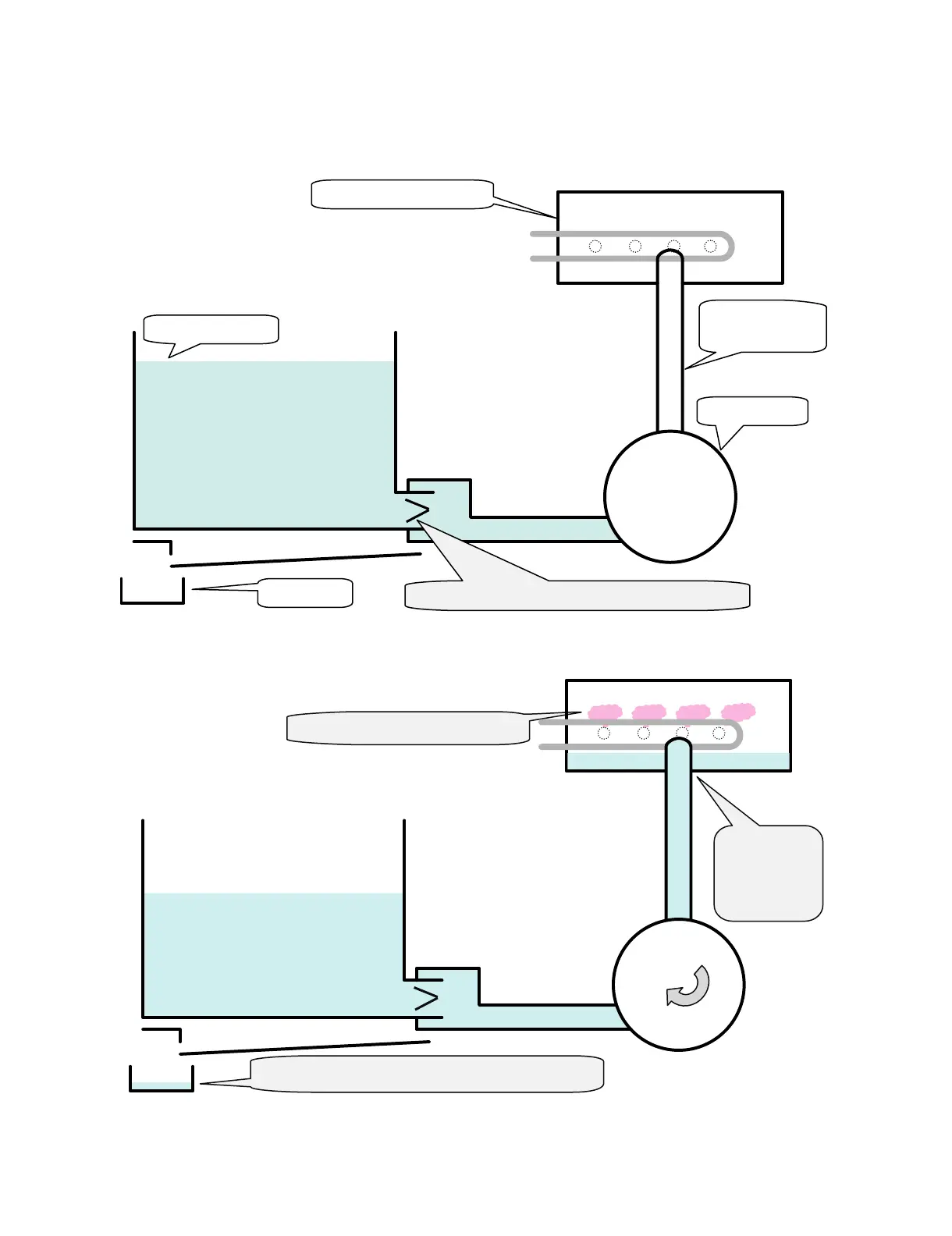

[1] W
ater supply/drainage schematic
1. When in
stalling the water tank
2. When steaming operations
FEED-WATER
TANK
ENGINE
UNIT
ASSEMBLY
PUMP
MOTOR
DRIP
TRAY
Water
supply
tube
to
the
engine
as-
sembly
Inserting
the
water
tank
delivers
water
to
the
tank
joint.
Turning
the
heater
ON
generates
steam.
Dew
condensation
water
in
the
oven
cavity
and
the
steam
exhaust
duct
is
discharged
to
the
drip
tray
Activation
of
the
pump
delivers
water
to
the
engine
through
the
tube.
13
15
Table of Contents
Default Chapter
2
Table of Contents
2
Chapter 1. Before Servicing
3
Chapter 2. Warning to Service Personnel
5
Chapter 3. Precautions for Using Lead- Free Solder
8
Chapter 4. Product Description
9
Specifications
9
Test Data at a Glance
9
Oven Diagram
10
Control Panel
11
Important Instructions
12
Chapter 6. Operation
14
Water Supply/Drainage Schematic
14
Operation of Electric Parts in each Heating Mode
16
Off Condition
16
Chapter 7. Function of Important Com
17
Door Open Mechanism
17
Switch
17
Fuse
17
Asymmetric Rectifier
17
Thermal Cut-Out
18
Noise Filter
18
Heating Element
18
Motor
18
Thermistor
18
Chapter 8. Troubleshooting Guide
19
Chapter 9. Test Procedures
21
A: Magnetron Test
21
B: High Voltage Transformer Test
22
C: High Voltage Rectifier Test
22
D: High Voltage Capacitor Test
22
E: Switch Test
23
F: Monitor Switch Test
23
G: Thermistor Test
23
H: Thermal Cut-Out Test
23
I: Blown Fuse (F1) 20A
23
J: Blown Fuse (F2) F8A (Noise Filter)
24
K: Noise Filter Test
24
L: Grill Heating Elements (Top) and Engine Heating Element Test
24
M: Control Unit Test
24
N: Key Unit (Membrane Switch) Test
25
Chapter 10. Error List
26
Error List
26
How to Check in the Event of an Error
27
Chapter 11. Test Mode
32
Chapter 12. Component Replacement and Adjustment Procedure before Operating
33
Outer Case Cabinet Removal
33
High Voltage Components Removal
34
High Voltage Transformer Removal
34
Magnetron Removal
34
Antenna Motor Replacement
34
Fan Motor Replacement
34
Pump Motor Removal
35
Intake Damper Motor and Intake Damper Switch Removal
35
Back Plate Removal
35
Bottom Plate Removal
35
Engine Unit Assembly Removal
36
Shakedown Operation of New Engine Unit Assembly
36
Thermistor (Engine) Removal
36
Oven Lamp Removal
36
Power Supply Cord Replacement
37
Control Unit Removal
37
Key Sheet and Membrane Switch Replacement
37
Monitored Interlock Switch, Monitor Switch and Door Sensing Switch Removal
38
Monitored Interlock Switch, Door Sensing Switch and Monitor Switch Adjustment
38
Door Replacement
39
Installation of Door Packing
40
Plumbing
41
Chapter 13. Microwave Measurement
42
Chapter 14. Circuit Diagrams Pictorial Diagram
43
Control Unit Circuit
46
Parts List
47
Other manuals for Sharp AX-1100R
Operation Manual With Cookbook
104 pages
4
Based on 1 rating
Ask a question
