Sharp AY-AP9FHR Service Manual

AYAP7FHR
4

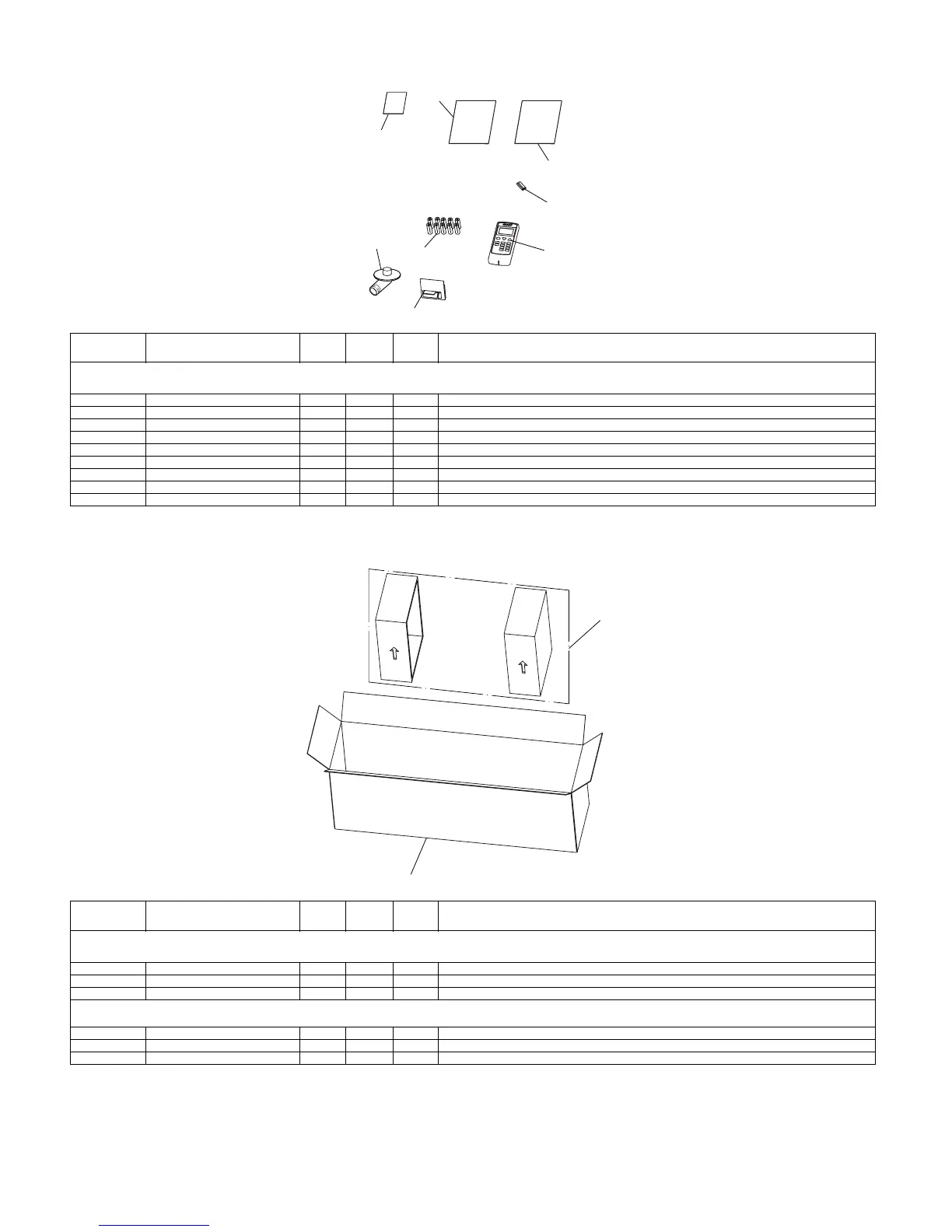

[2] ACCESSORY PARTS
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
RANK
DESCRIPTION
[3] INDOOR PACKING PARTS
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
RANK
DESCRIPTION
[2] ACCESSORY PARTS
4-1 CRMC-A665JBEZ AZ Remote control
4-2 UBATUA027JBE0 AE Battery pack
4-3 LHLD-A721JBFA A K Cord holder
4-5 LX-NZA207JBEZ AE Special nut
4-6 TLAB-C800JBEZ AK EU energy label[AYAP7FHR]
4-6 TLAB-C801JBEZ AK EU energy label[AYAP9FHR]
4-8 TINSEA406JBRZ AX Operation manual
4-9 TINS-A876JBRZ AK Installation manual
4-10 LHLD-A484JBFA AE Drain joint
[3] INDOOR PACKING PARTS
90-1 CPADBA086JBKZ AM Packing pad ass'y
90-2 SPAKCB832JBEZ AT Packing case[AYAP7FHR]
90-2 SPAKCB822JBEZ AK Packing case[AYAP9FHR]
[4] OTHER PARTS(INDOOR UNIT)
1-2 QFS-IA001KKZZ AD Fuse
1-3 RH-IXA829JBZZ AV IC
1-4 RRMCUA003JBZZ AM Receiver unit
4-3
4-1
4-10
4-8
4-9
4-5
4-2
4-6
90-2
90-1

Sharp AY-AP9FHR Specifications

General

AC input voltage	220-240 V
AC input frequency	50 Hz
Design load (cooling)	- kW
Energy efficiency class (cooling)	A
Annual energy consumption (cooling)	410 kWh
Hourly energy consumption (cooling)	3.8 kWh
Energy efficiency class (heating) (Warmer heating season)	-
Annual energy consumption (heating) (Warmer heating season)	- kWh
Type	Split system
Multi-split	Yes
Product color	White
Hose length (max)	10 m
Refrigerating medium	R410A
Air conditioner functions	Cooling, Heating
Cooling capacity in watts (nominal)	820 W
Cooling energy efficiency (EER, W/W)	3.21
Heating energy efficiency (COP, W/W)	3.61
Heating capacity in watts (nominal) (Warmer heating season)	- W
Heating capacity in watts (nominal) (Average heating season)	855 W
Indoor unit depth	184 mm
Indoor unit width	810 mm
Indoor unit height	270 mm
Indoor unit weight	9000 g
Indoor units quantity	1
Indoor unit noise level (high speed)	55 dB
Outdoor unit depth	250 mm
Outdoor unit width	730 mm
Outdoor unit height	540 mm
Outdoor unit weight	32000 g
Outdoor unit noise level	61 dB
