28
AY-M09AE
AE-M18AE

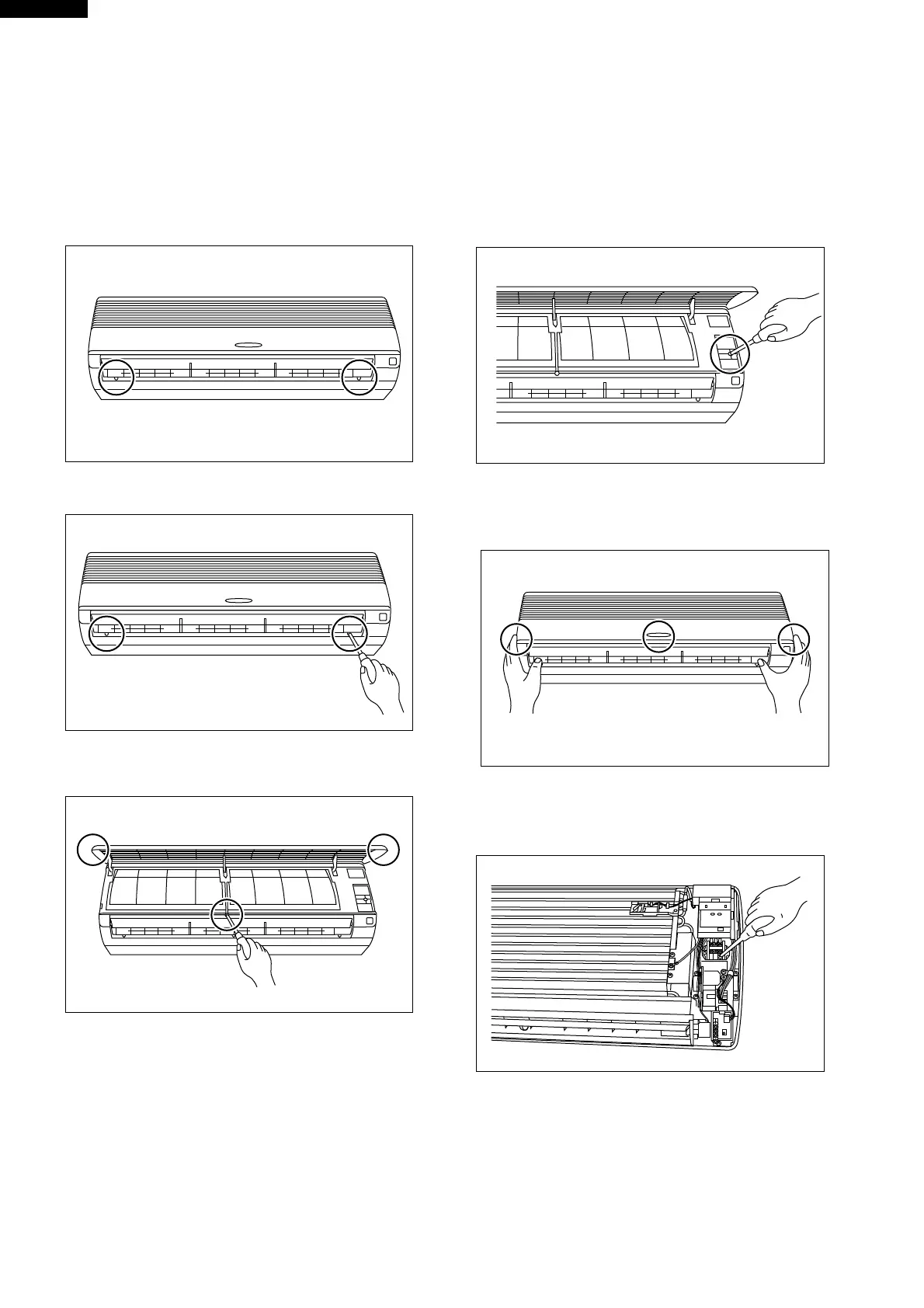

DISASSEMBLING PROCEDURE
FOR INDOOR UNIT MODEL AY-M09AE
CAUTION: TURN THE CIRCUIT BREAKER OFF BEFORE ANY SERVICING
1. Remove the 2 screw covers in the front panel.
4. Loose a cord clamp screw and take it out.
3. Pull the open panel at " A " toward you.
Remove a fixed screw.
2. Remove 2 fixed screws.
6. Loose 4 screws on the terminal board and take out
the unit-to-unit cord from it.
5. Close the open panel softly, and then press " B " and
" C " of it securely.
Remove the front panel ass'y as to lift up.
To Next Page
