LC-52/60/70LE640U/C6400U,LC-80LE633U/844U (1st Edition)
4 – 3

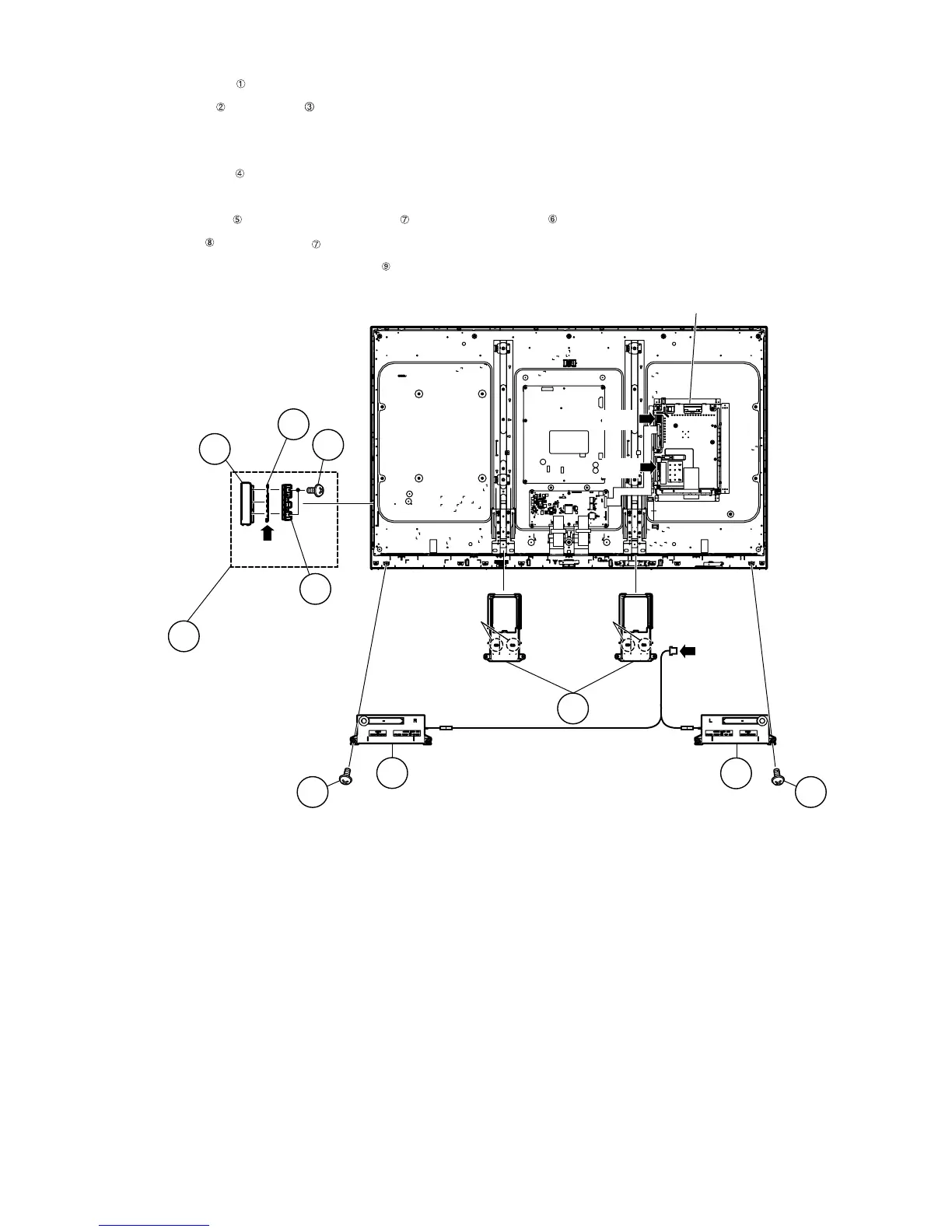

2. Removing of Speaker (L/R), KEY Unit and Bottom Cover.
1. Remove the 2 lock screws .
2. Detach the Speaker (L) , Speaker (R) .
3. Disconnect the SP wire.
4. Disconnect the RC wire.
5. Detach the KEY Unit Ass’y .
6. Disconnect the KM wire.
7. Remove the 2 lock screws and detach the Key Button from Key Button Cover .
8. Detach the KEY Unit from Key Button .
9. Remove the 4 Hooks and detach the 2 Bottom Cover .
