Sharp C6400U - Removing of Major Parts (Lc-60 Le640 U;C6400 U)

LC-52/60/70LE640U/C6400U,LC-80LE633U/844U (1st Edition)
4 – 8
[2] REMOVING OF MAJOR PARTS (LC-60LE640U/C6400U)

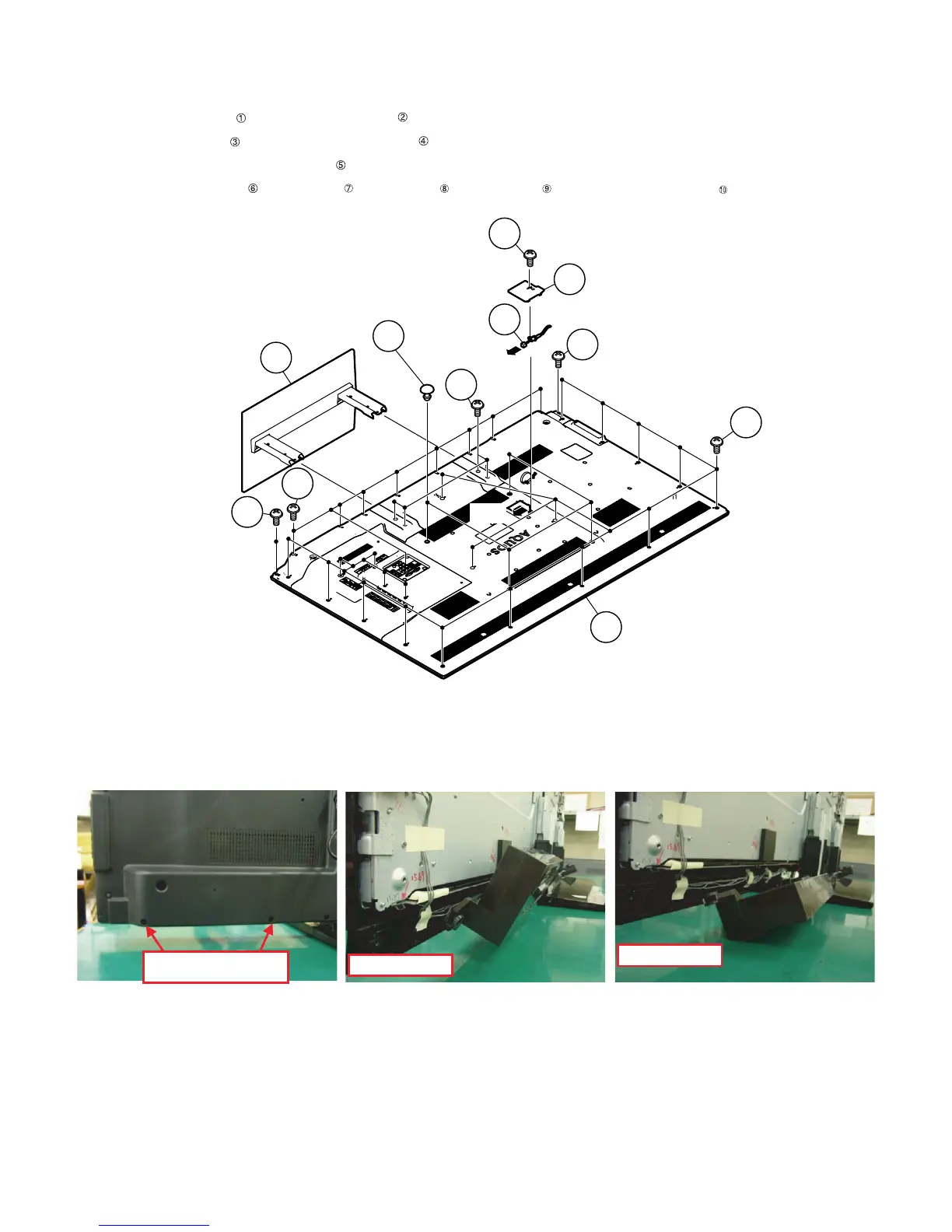

1. Removing of Stand Unit and Rear Cabinet.
1. Remove the 4 lock screws and detach the Stand Unit .
2. Remove the 1 lock screw and detach the AC Cord Cover .
3. Disconnect AC wire and detach the AC Cord .
4. Remove the 4 VESA Covers , 9 lock screws , 2 lock screws , 20 lock screws and detach the Rear Cabinet .
[Precaution when removing the rear cabinet]
If the rear cabinet is removed with the set upright, the speakers may fall; it results in connector disconnection. Therefore, never remove the rear cab-
inet with the set upright.
Be sure to remove the rear cabinet with the screen side down.
[Precaution when mounting the rear cabinet]
Put the speakers in place with the screen side down, and attach the rear cabinet.
Since the speakers are fixed by the rear cabinet, they cannot be fixed without the rear cabinet.
䎾䎤䎦䏀
䎾䎤䎦䏀
䎕
䎚
䎙
䎘
䎗
䎖
䎔䎓
䎜
䎵䏈䏄䏕䎃䎦䏄䏅䏌䏑䏈䏗
䎹䎨䎶䎤䎃䎦䏒䏙䏈䏕
䎤䎦䎃䎦䏒䏕䏇
䎤䎦䎃䎦䏒䏕䏇䎃䎦䏒䏙䏈䏕
䎶䏗䏄䏑䏇䎃䎸䏑䏌䏗
䎔
䎛
䎛
Screws for fixing Speaker
and Rear Cabinet
Speaker incline.
Speaker fall down.
