LC-52/60/70LE640U/C6400U,LC-80LE633U/844U (1st Edition)
4 – 5

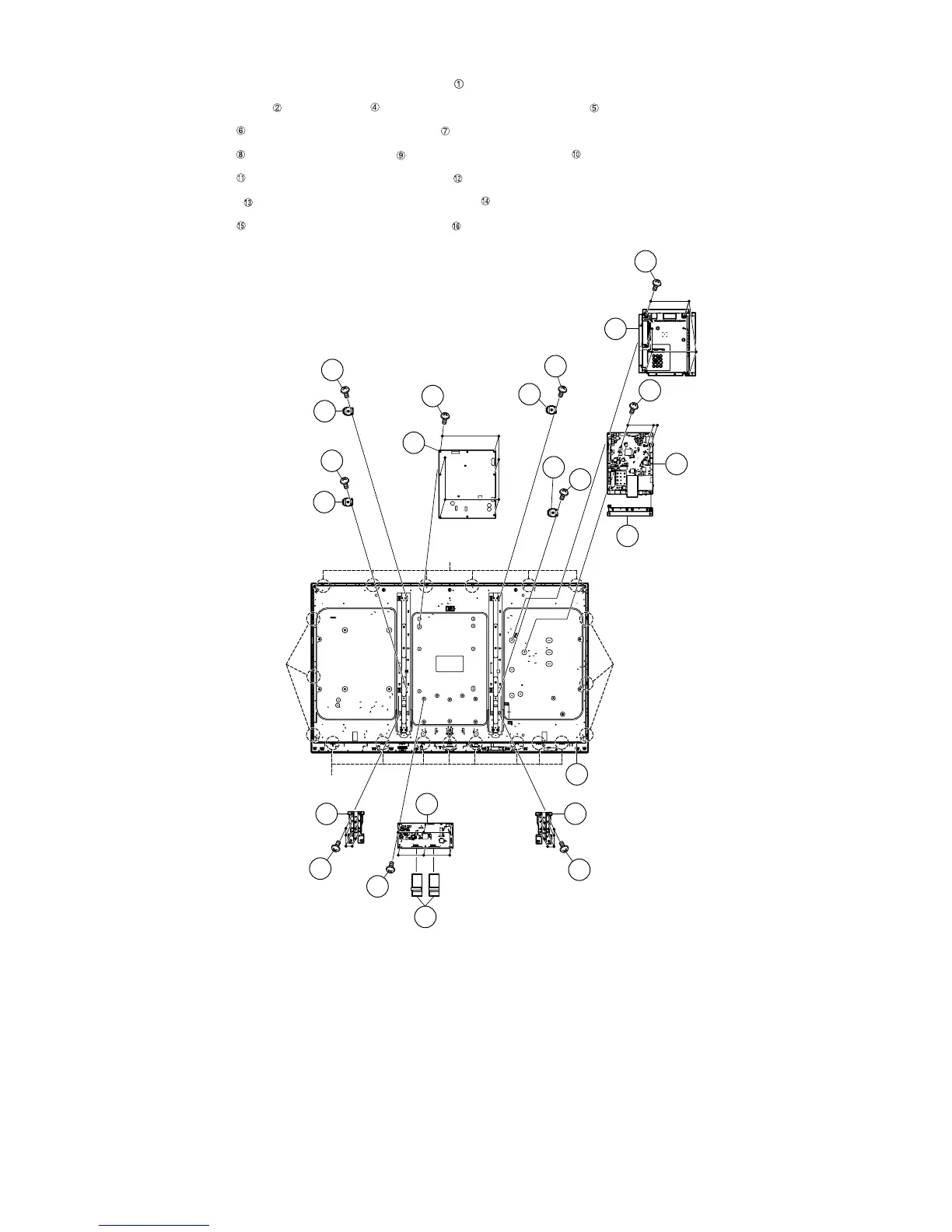

4. Removing of 52” LCD Panel Module Unit, LCD CONTROL Unit, MAIN Unit, POWER/DRIVE Unit.
1. Remove the 20 Hooks and detach the 52” LCD Panel Module Unit .
2. Remove the 2 Connecting Cords , 6 lock screws and detach the LCD CONTROL Unit .
3. Remove the 5 lock screws and detach the MAIN PWB Shield .
4. Remove the 3 lock screws and detach the MAIN Unit and Terminal Angle (Bottom) .
5. Remove the 6 lock screws and detach the POWER/DRIVE Unit .
6. Remove the 12 lock screws and detach the 2 Stand Fix Angle Ass’y .
7. Remove the 4 lock screws and detach the 4 VESA Angle Ass’y .
