LC-52/60/70LE640U/C6400U,LC-80LE633U/844U (1st Edition)
4 – 34

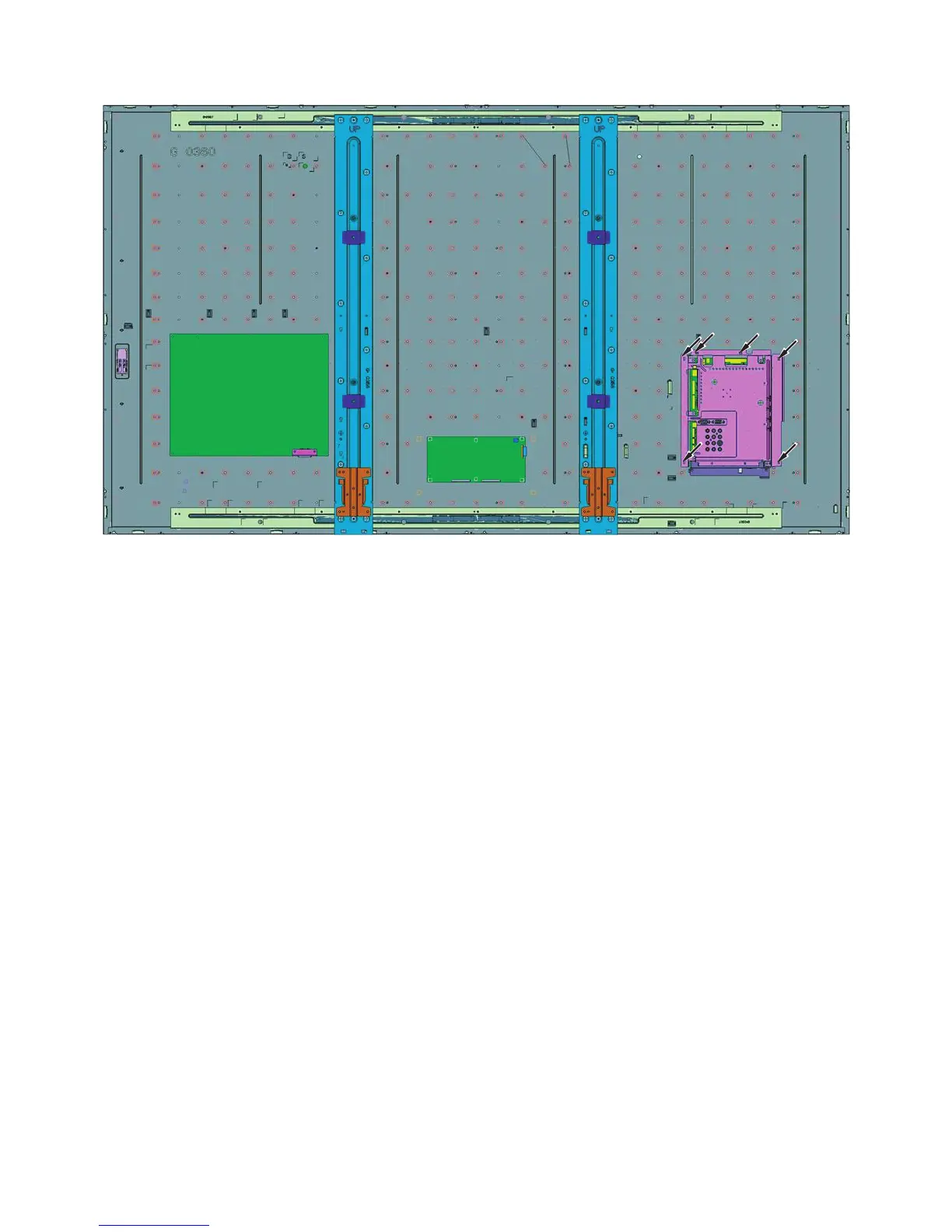

The following is a drawing mounting the main PWB Ass’y on the backlight chassis. (The parts indicated by -> are the access holes for confirmation.)
(Main PWB Ass’y => State where the shielded case and RF terminal angle are mounted on the main PWB)
