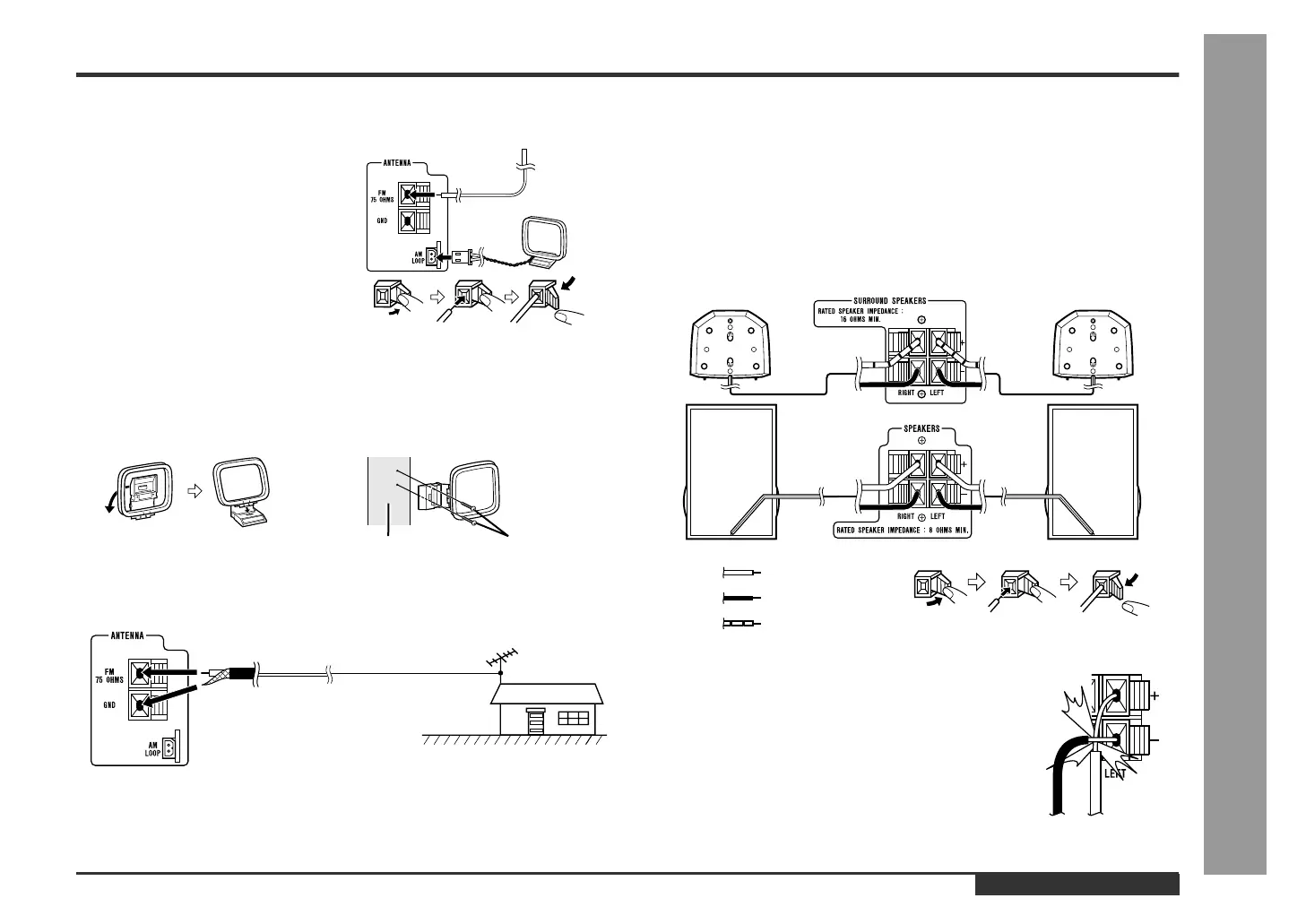

Preparation for Use
- System Connections -
„
Aerial connection
Note:
Placing the aerial on the unit or near the AC power lead may cause noise pickup.
Place the aerial away from the unit for better reception.
Installing the AM loop aerial:
External FM aerial:
Use an external FM aerial if you require better reception. Consult your dealer.
Note:
When an external FM aerial is used, disconnect the supplied FM aerial wire.
„
Speaker connection
Front speakers
Connect the black wire to the SPEAKERS (-) terminal, and the red wire to the
SPEAKERS (+) terminal.
Surround speakers
Connect the black wire to the SURROUND SPEAKERS (-) terminal, and the green
wire to the SURROUND SPEAKERS (+) terminal.
Caution:
Supplied FM aerial:
Connect the FM aerial wire to the FM 75
OHMS terminal and position the FM aerial
wire in the direction where the strongest
signal can be received.
Supplied AM loop aerial:
Connect the AM loop aerial wire to the AM
LOOP socket. Position the AM loop aerial
for optimum reception. Place the AM loop
aerial on a shelf, etc., or attach it to a stand
or a wall with screws (not supplied).
< Assembling > < Attaching to the wall >
Wall Screws (not supplied)
External
FM aerial
75 ohm
coaxial
cable
z
If you use other speakers with impedance lower than that
specified, the unit may be damaged. Front speakers: 8
ohms Surround speakers: 16 ohms
z
Do not mistake the right and the left channels. The right
speaker is the one on the right side when you face the unit.
z
Do not let the bare speaker wires touch each other.
z
Do not allow any objects to fall into or to be placed in the
bass reflex ducts.
z
Do not stand or sit on the speakers. You may be injured.
Incorrect
Black
Red
Front speaker (Right)
Surround speaker (Right) Surround speaker (Left)
Front speaker (Left)
Green
