General Information
- Controls and Indicators -
Controls and Indicators (continued)
„

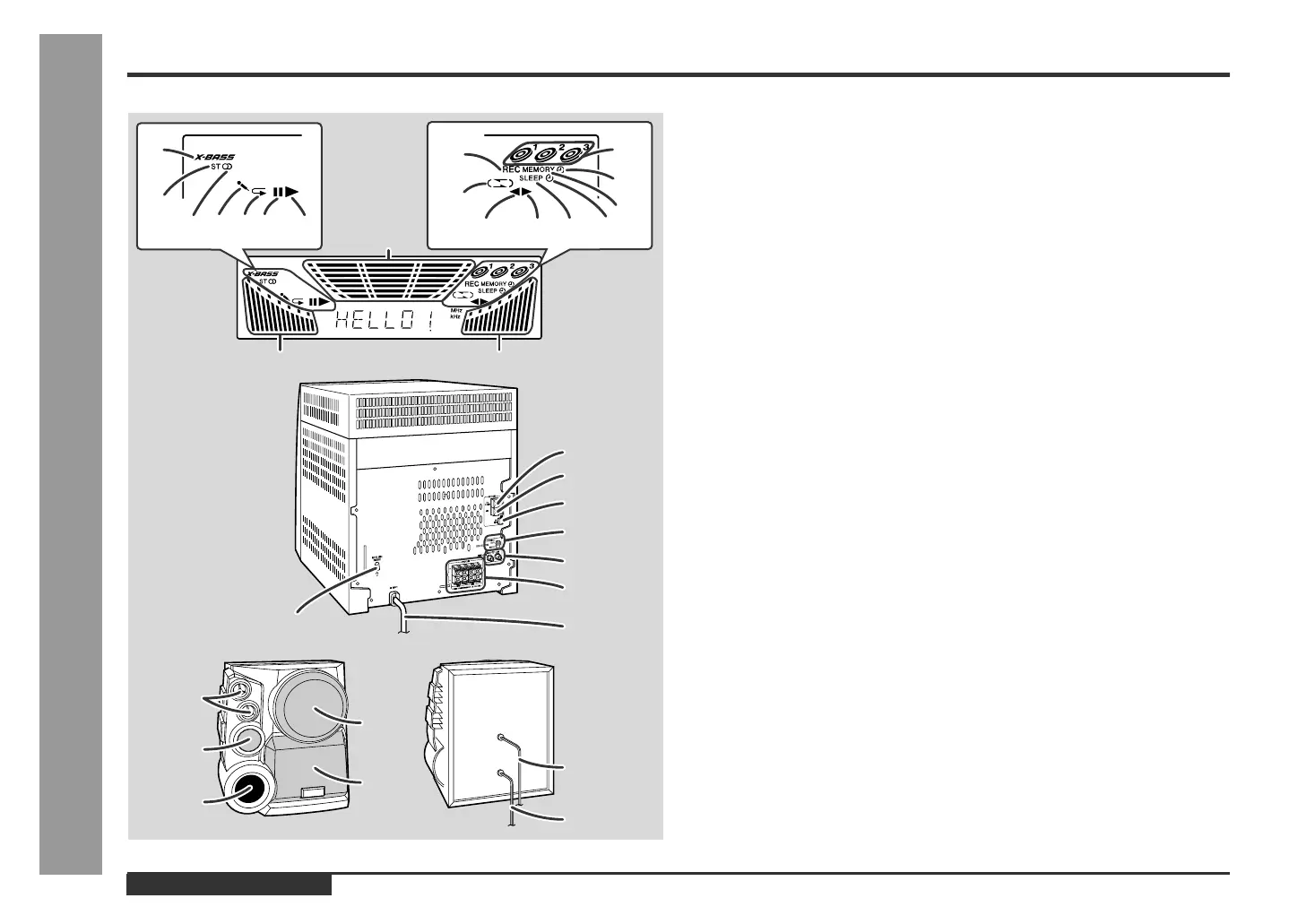

Display
1.Extra Bass Indicator
2.FM Stereo Mode Indicator
3.FM Stereo Receiving Indicator
4.Karaoke Mode Indicator
5.CD Repeat Play Indicator
6.CD Pause Indicator
7.CD Play Indicator
8.Tape 2 Record Indicator
9.Tape Reverse Mode Indicator
10.Disc Number Indicators
11.Timer Play Indicator
12.Memory Indicator
13.Tape 2 Reverse Play Indicator
14.Tape 1 Play or Tape 2 Forward Play Indicator
15.Sleep Indicator
16.Timer Recording Indicator
17.Spectrum Analyser/Volume Level Indicator
„
Rear panel
Reference page
1.FM 75 Ohms Aerial Terminal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7, 8
2.FM Aerial Earth Terminal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7, 8
3.AM Loop Aerial Socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7, 8
4.Span Selector Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
5.Video/Auxiliary (Audio Signal) Input Sockets . . . . . . . . . . . . . . . . .29
6.Speaker Terminals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7, 8
7.AC Power Lead . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
8.AC Voltage Selector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
„
Speaker system
1.Super Tweeters
2.Tweeter
3.Bass Reflex Duct
4.Woofer
5.Subwoofer
6.Speaker wire for MAIN terminals
7.Speaker wire for SUBWOOFER terminals
1
3
2
4
5
6
7
8
1
2
34 6
8
17
17
17
9
13 14 15 16
7
10
11
12
5
6
7
4
5
3
2
1
