E-8
ENGLISH
Preparation for Use
- System Connections -
„

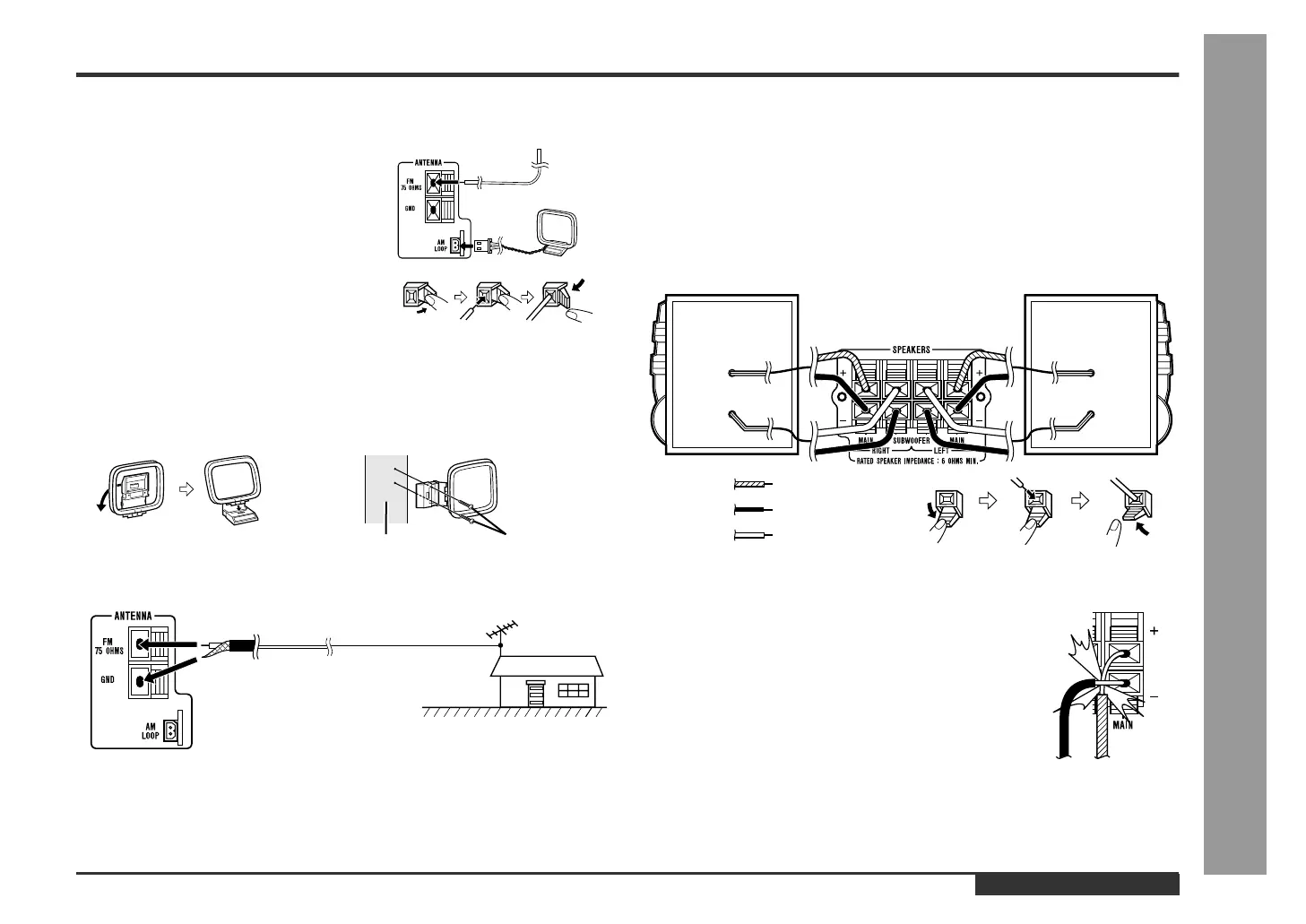

Aerial connection
Note:
Placing the aerial on the unit or near the AC power lead may cause noise pickup.
Place the aerial away from the unit for better reception.
Installing the AM loop aerial:
External FM aerial:
Use an external FM aerial if you require better reception. Consult your dealer.
Note:
When an external FM aerial is used, disconnect the supplied FM aerial wire.
„
Speaker connection
Main terminals:
Connect the upper black wire to the MAIN (-) terminal and the blue wire to the MAIN
(+) terminal.
Subwoofer terminals:
Connect the lower black wire to the SUBWOOFER (-) terminal and the red wire to the
SUBWOOFER (+) terminal.
Caution:
Supplied FM aerial:
Connect the FM aerial wire to the FM 75 OHMS
terminal and position the FM aerial wire in the di-
rection where the strongest signal can be re-
ceived.
Supplied AM loop aerial:
Connect the AM loop aerial wire to the AM
LOOP socket. Position the AM loop aerial for
optimum reception. Place the AM loop aerial on
a shelf, etc., or attach it to a stand or a wall with
screws (not supplied).
< Assembling > < Attaching to the wall >
Wall Screws (not supplied)
External
FM aerial
75 ohm
coaxial
cable
Right speaker Left speaker
z
Never mistake the MAIN and the SUBWOOFER terminals.
The unit or the speakers may be damaged.
z
Only the included speakers should be used with this prod-
uct. Do not use other speakers with this unit or use the sup-
plied speakers with other units.
z
Do not mistake the right and the left channels. The right
speaker is the one on the right side when you face the unit.
z
Do not let the bare speaker wires touch each other.
z
Do not allow any objects to fall into or to be placed in the
bass reflex ducts.
z
Do not stand or sit on the speakers. You may be injured.
Incorrect
Black
Red
Blue
To Next Page
