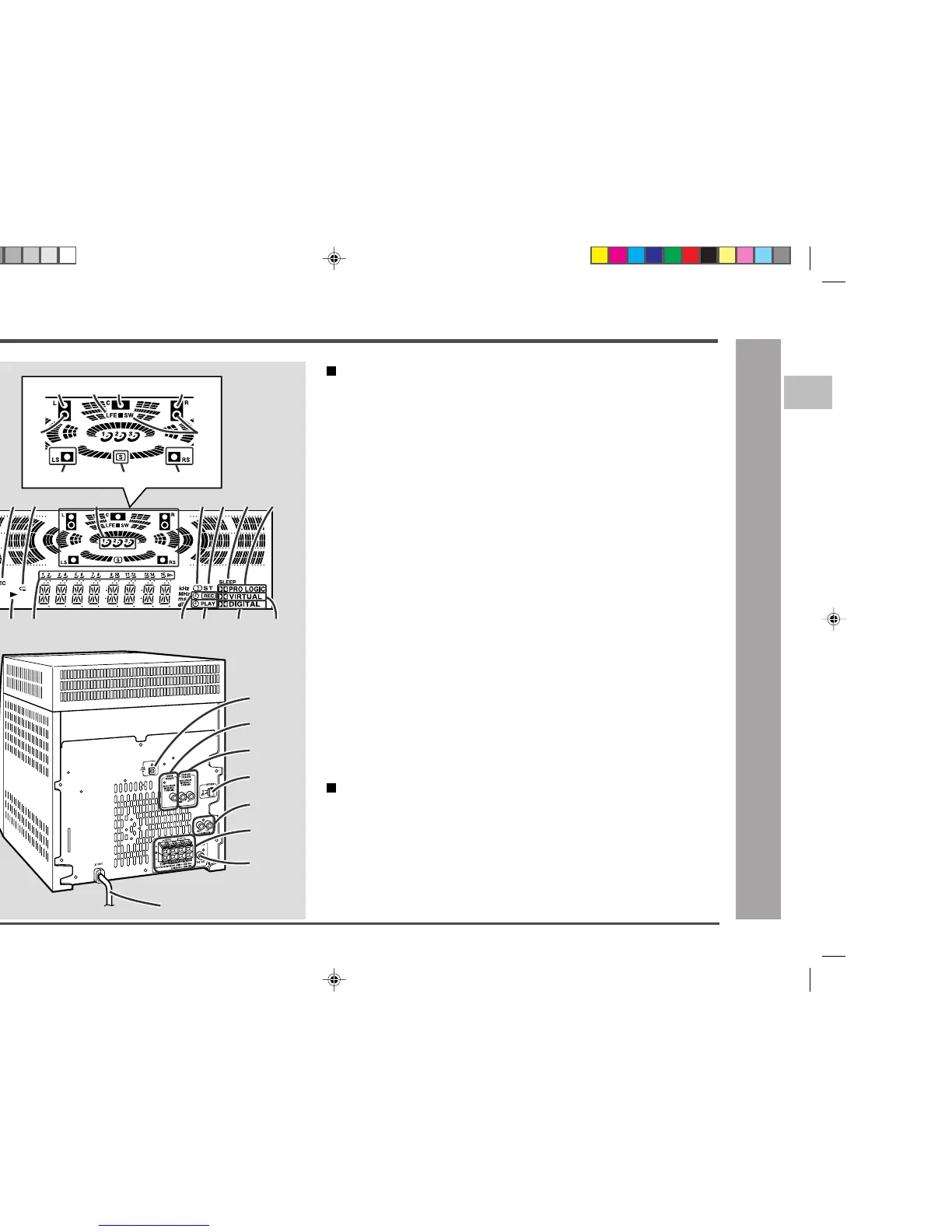

Display
01. Left Front Speaker Indicator
02. Low Frequency Effect Indicator
03. Center Speaker Indicator
04. Right Front Speaker Indicator
05. Subwoofer Indicator
06. Left Surround Speaker Indicator
07. Surround Indicator
08. Right Surround Speaker Indicator
09. Extra Bass Indicator
10. Tape 2 Record Indicator
11. CD Repeat Indicator
12. Disc Number Indicators
13. FM Stereo Receiving Indicator
14. FM Stereo Mode Indicator
15. Sleep Indicator
16. Dolby Pro Logic Indicator
17. Memory Indicator
18. CD Random Play Indicator
19. CD Play Indicator
20. CD Pause Indicator
21. Tape Play Indicator
22. CD Music Schedule Indicators
23. Timer Recording Indicator
24. Timer Play Indicator
25. Dolby Digital Indicator
26. Dolby Virtual Indicator
Rear panel Reference page
01. DVD Digital Input Jack ....................................................................38
02. Center Speaker Jacks ............................................................... 10, 11
03. Surround Speaker Jacks .......................................................... 10, 11
04. FM/AM Loop Antenna Jack ...................................................... 10, 11
05. Video/Auxiliary (Audio Signal) Input Jacks ..................................38
06. Speaker Terminals .................................................................... 10, 11
07. Subwoofer Pre Output Jack ...........................................................38
08. AC Power Cord ................................................................................10
1
8
2
3
4
5
6
7
26
9
17
18
19
20
22 2324 25
1011 13 14 15 16
21
1 23
678
55
12
4
