– 15 –
CD-E500
CD-E55/E44
• The indicated voltage in each section is the one measured
by Digital Multimeter between such a section and the chas-
sis with no signal given.
1. In the tuner section,
indicates AM
indicates FM stereo
2. In the main section, a tape is being played back.
3. In the deck section, a tape is being played back.
4. In the power section, a tape is being played back.
5. In the CD section, the CD is stopped.
• Parts marked with “ 1 ” ( ) are important for
maintaining the safety of the set. Be sure to replace these
parts with specified ones for maintaining the safety and
performance of the set.
NOTES ON SCHEMATIC DIAGRAM
• Resistor:
To differentiate the units of resistors, such symbol as K and
M are used: the symbol K means 1000 ohm and the symbol
M means 1000 kohm and the resistor without any symbol is
ohm-type resistor. Besides, the one with “Fusible” is a fuse
type.
• Capacitor:
To indicate the unit of capacitor, a symbol P is used: this
symbol P means pico-farad and the unit of the capacitor
without such a symbol is microfarad. As to electrolytic
capacitor, the expression “capacitance/withstand voltage”
is used.
(CH), (TH), (RH), (UJ): Temperature compensation
(ML): Mylar type
(P.P.): Polypropylene type
• Schematic diagram and Wiring Side of P.W.Board for this
model are subject to change for improvement without prior
notice.

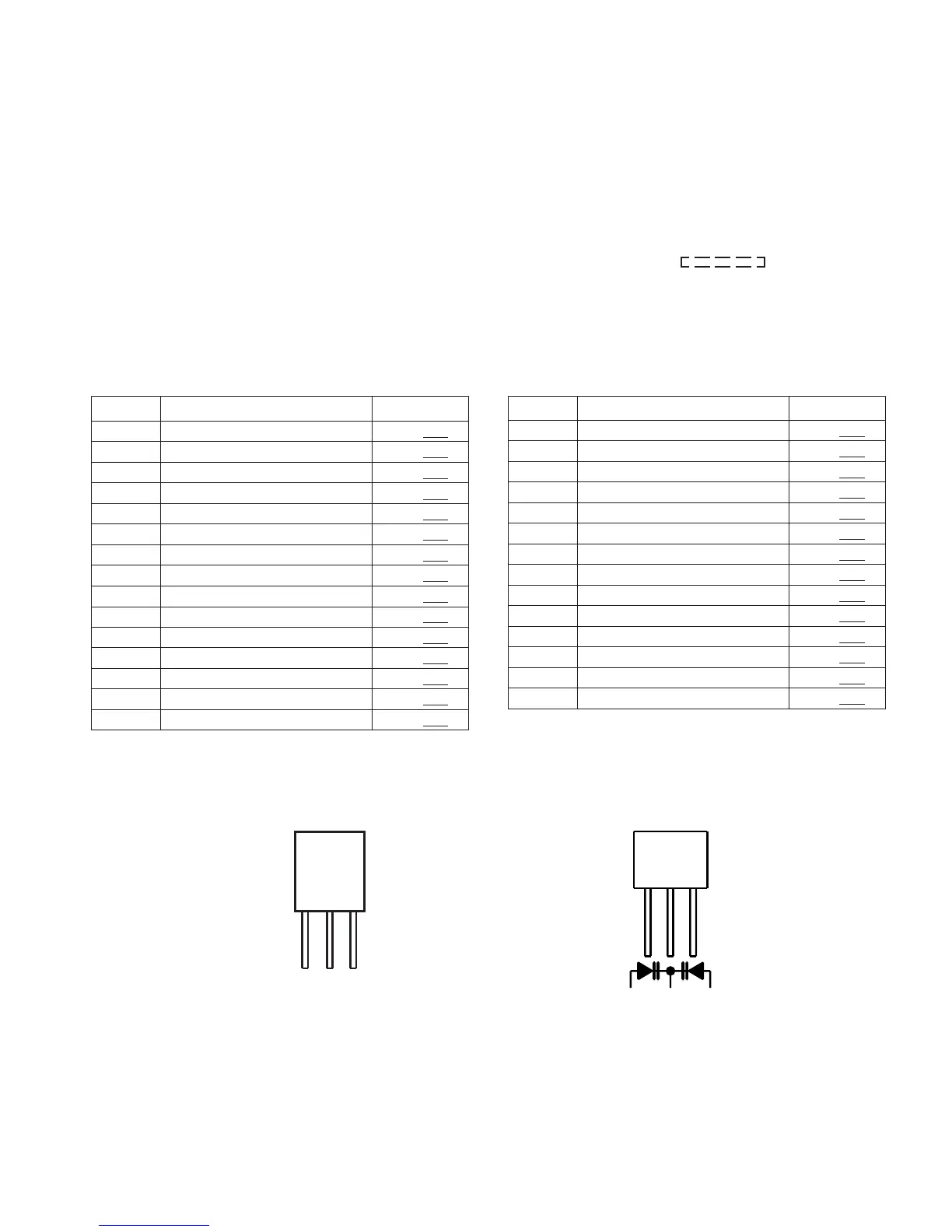

TYPES OF TRANSISTOR AND LED
REF. NO
DESCRIPTION
POSITION
SW711 MEMORY/SET ON—OFF
SW712 TUNING/TIME DOWN ON—OFF
SW713 TUNING/TIME UP ON—OFF
SW714 TIMER/SLEEP ON—OFF
SW715 CLOCK ON—OFF
SW719 EQUALIZER ON—OFF
SW720 VOLUME UP ON—OFF
SW721 VOLUME DOWN ON—OFF
SW722 TUNER(BAND) ON—OFF
SW723 CD ON—OFF
SW724 REC/PAUSE ON—OFF
SW801 TAPE2 INITIALIZE ON—OFF
SW802 TAPE1 INITIALIZE ON—OFF
SW803 TAPE2 REC ON—OFF
SW1 PICKUP IN ON—OFF
SW401 DISC UP/DOWN ON—OFF
SW402 OPEN/CLOSE ON—OFF
SW403 DISC NO. ON—OFF
SW404 DISC 1 ON—OFF
SW701 X-BASS/DEMO ON—OFF
SW702 POWER ON/STAND-BY ON—OFF
SW703 OPEN/CLOSE ON—OFF
SW704 DISK SKIP ON—OFF
SW705 VIDEO/AUX ON—OFF
SW706 TAPE ON—OFF
SW707 PRESET DOWN ON—OFF
SW708 PLAY/REPEAT ON—OFF
SW709 PRESET UP ON—OFF
SW710 STOP ON—OFF
REF. NO DESCRIPTION POSITION
(1) (2) (3)
(S) (G) (D)
E C B
FRONT
VIEW
HSB562 C
HSC1609 GR
KRA102 M
KRA107 M
KRC102 M
KRC104 M
KRC107 M
KSA1015 GR
KSA1271 Y
KSC1815 GR
KSC3203 Y
SSC1674 C
2SC2001 K
KDV147B
SVC348S
123
To Next Page
