– 9 –
CD-E500
CD-E55/E44

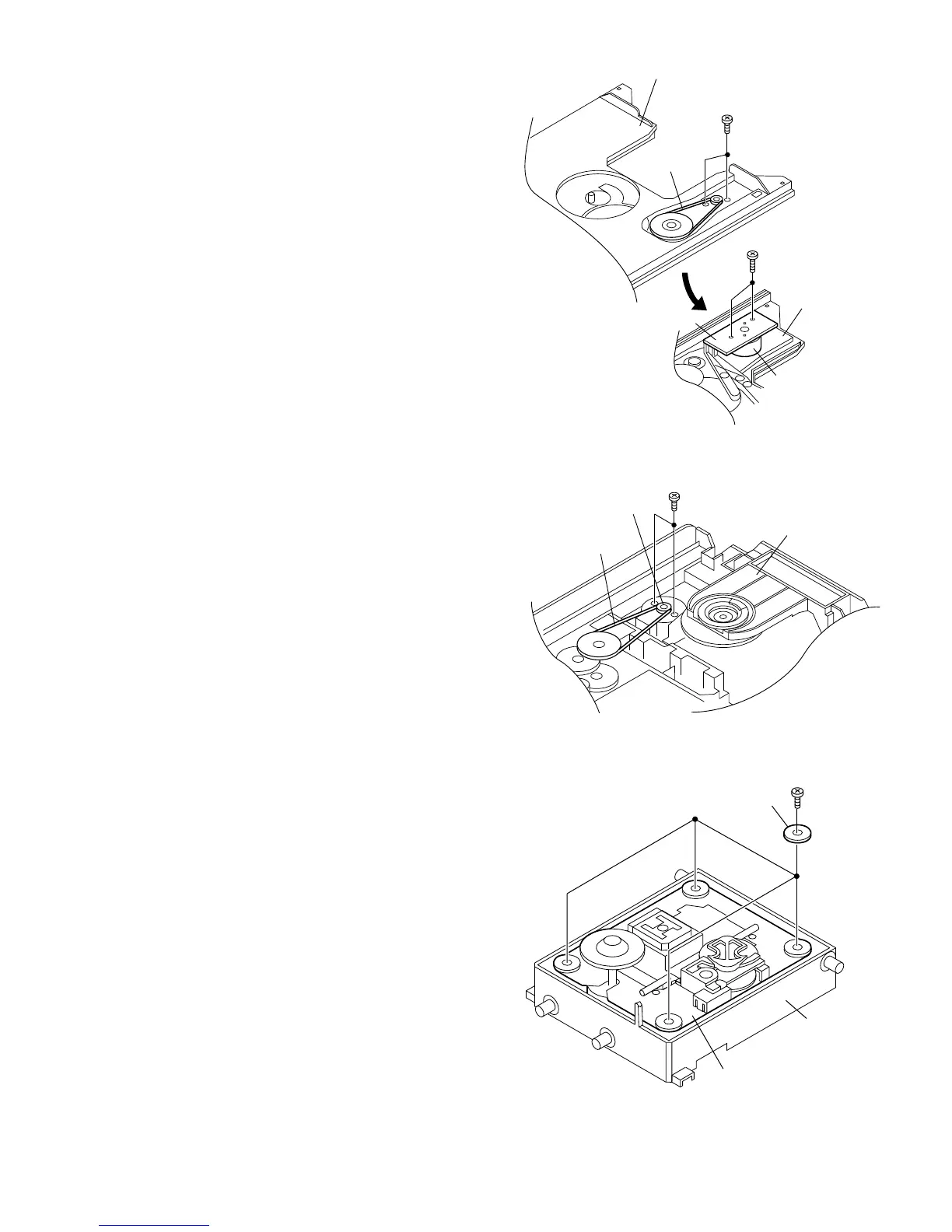

Figure 9-1
CD PLAYER SECTION
Perform steps 1, 2, 3, 10,11, and 12 of the disassembly
method to remove the CD mechanism.
How to remove the T/T rotate motor
(See Figs. 9-1)
1. Remove the screws (A1) x 2 pcs.
2. Remove the belt (A2) x 1 pc.
3. Remove the screws (A3) x 2 pcs., to remove the T/T rotate
motor.
(A1)x2
ø2.4x3mm
(A3)x2
ø3x10mm
(A2)x1
Loading Tray
(Bottom View)
Loading Tray
T/T Motor PWB
T/T Rotate Motor
(B1)x2
ø2.4x5mm
Up/Down Loading Motor
CD Player Unit
(B2)x1
Figure 9-2
How to remove the up/down loading motor
(See Figs. 9-2)
1. Remove the screws (B1) x 2 pcs.
2. Remove the belt (B2) x 1 pc.
How to remove the CD mechanism unit
(See Fig. 9-3)
Perform steps 1, 2, 3, 10and 13 of the disassembly method to
remove the CD mechanism.
1. Remove the screws (C1) x 4 pcs., to remove the mechanism
unit.
Note
After removing the connector for the optical pickup from the
connector wrap the conductive aluminium foil around the front
end of connector so as to protect the optical pickup from
electrostatic damage.
Figure 9-3
Holder
CD Mechanism Unit
Holder
PWB
(C1)x4
ø2.5x10mm
