IC601 VHiLC75341M-1: Audio Processor (LC75341M)

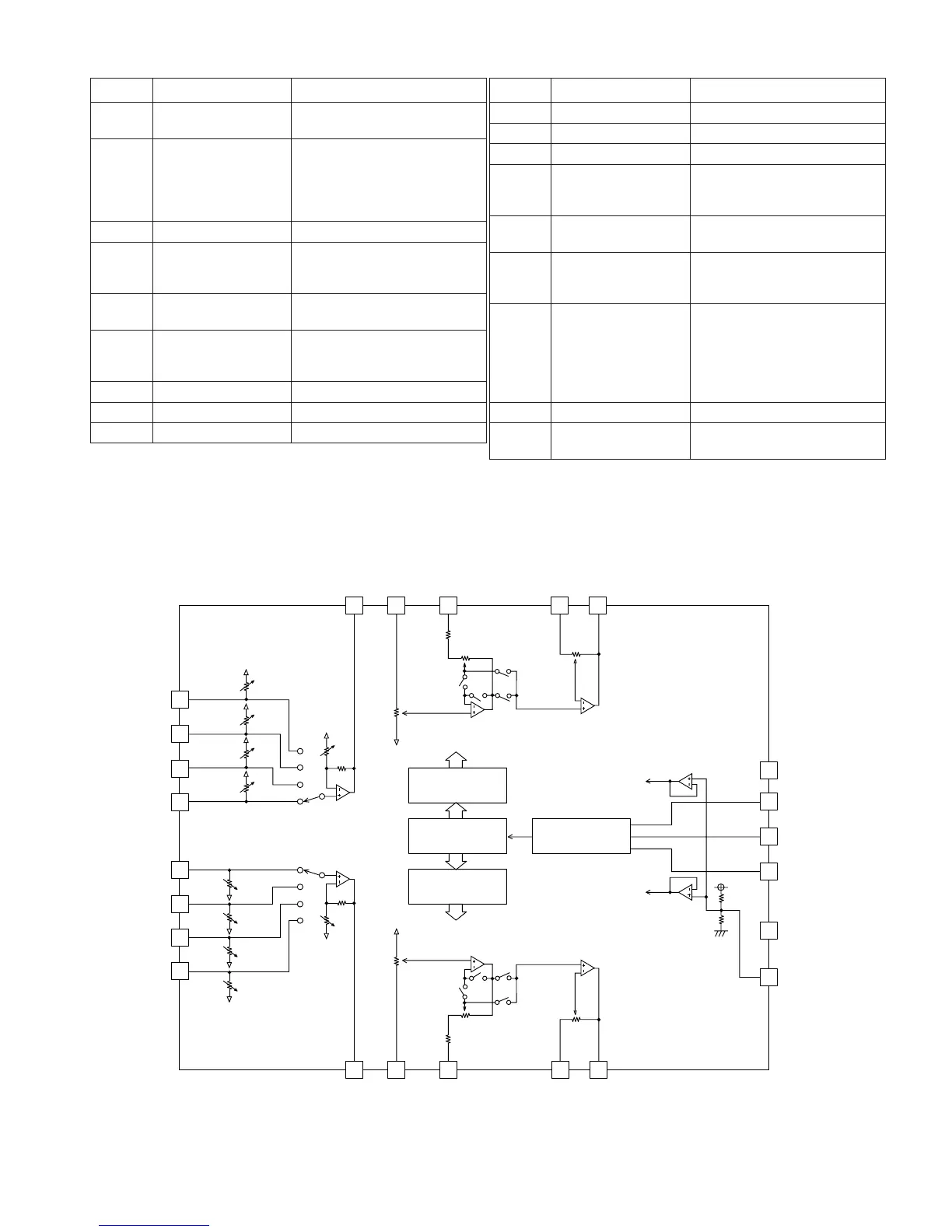

Figure 47 BLOCK DIAGRAM OF IC
19 20 21
22
23
24
1
2
3
45678
9
10
11
12
13
14
15
16
1817
LVref
RVref
CONTROL
CIRCUIT
CONTROL
CIRCUIT
CONTROL
CIRCUIT
LOUT LBASS LIN LSEL0
L4
L3
L2
L1
R1
R2
R3
R4
RSEL0
RIN
RTRE
LTRE
RBASS
ROUT
VREF
VDD
CLK
DI
CE
VSS
CCB
INTERFACE
CD
Tuner
Tape
Video
IC601 VHiLC75341M-1: Audio Processor (LC75341M)
Terminal Name
Pin No.
Function
1 DI Serial data and clock input pin
for control.
2CE Chip enable pin.
Data written into an internal latch
in a timing of "H" to "L".
Each analog switch is activated.
Data transfer enabled at "H" level.
3 VSS Ground pin.
4 LOUT Bass band filter comprising
capacitor and resistor connection
pin and bass/treble output pin.
5 LBASS Bass band filter comprisingcapacitor
and resistor connection pin.
6 LTRE Treble band filter comprising
capacitor and resistor connection
pin.
7 LIN Volume + equaliser output pin
8 LSEL0 Input selector output pin.
9-12 L4-1 Input signal pin.
Terminal Name
Pin No.
Function
13-16 R1-4 Input signal pin.
17 RSEL0 Input selector output pin.
18 RIN Volume + equaliser output pin
19 RTRE Treble band filter comprising
capacitor and resistor connection
pin.
20 RBASS Bass band filter comprisingcapacitor
and resistor connection pin.
21 ROUT Bass band filter comprising
capacitor and resistor connection
pin and bass/treble output pin.
22 VREF 0.5x VDD voltage generation block
for analog ground. Capacitor of
several 10µF to be connected
between VREF and AWSS (VSS) as
a countermeasure against power
ripple.
23 VDD Supply pin
24 CLK Serial data and clock input pin
for control.
