CD-M10000W/CP-M10000
1 Woofer 1. Front Panel ............ (A1) x1 11-3
(Woofer) 2. Screw ..................... (A2) x8 11-4
2 Super Tweeter 1. Front Panel ............ (B1) x1 11-5
2. Screw ..................... (B2) x4 11-6
3 Woofer 1. Screw ..................... (C1) x8 11-6
(Main speaker)
STEP
REMOVAL PROCEDURE
FIGURE

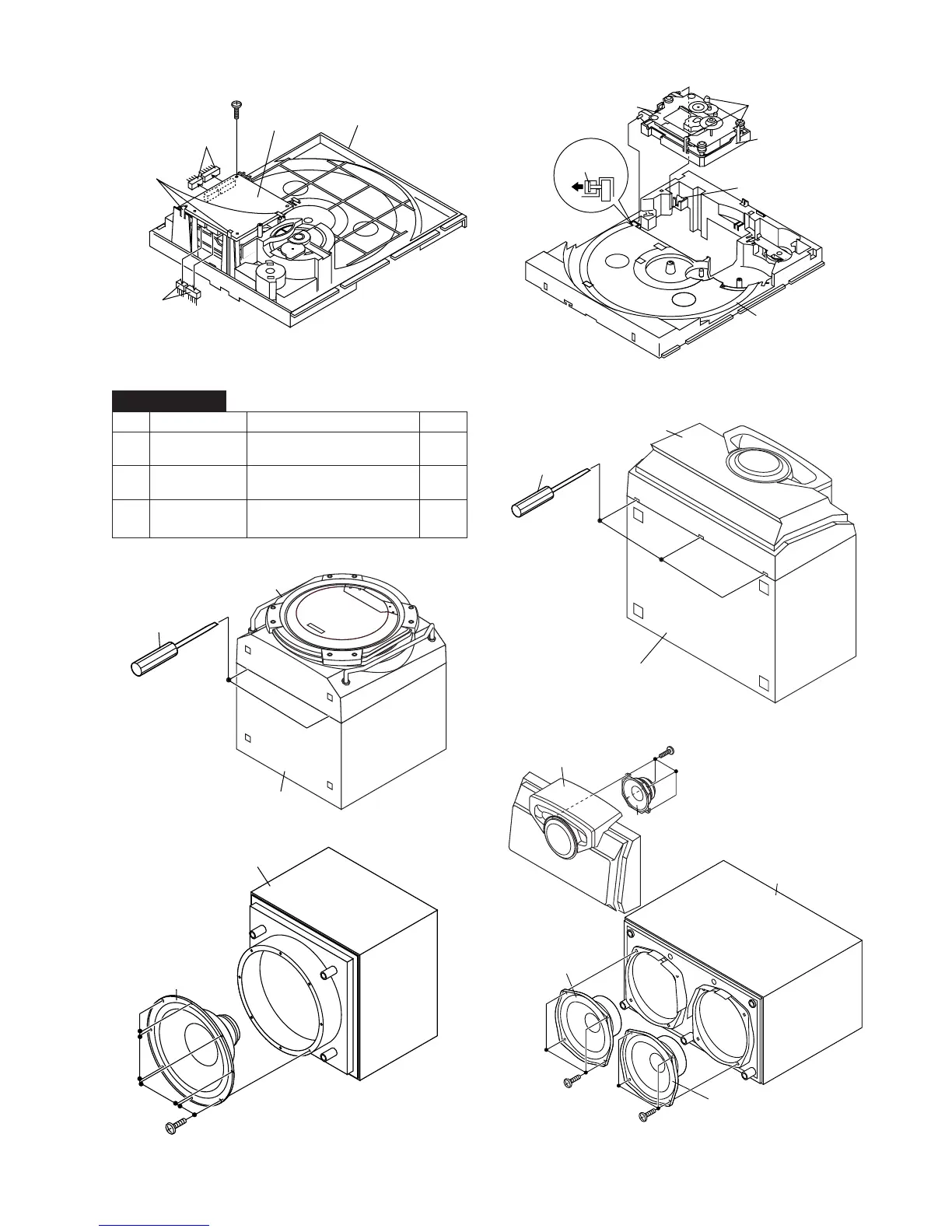

Figure 11-3
Figure 11-1
Figure 11-2
CP-M10000
Figure 11-5
Figure 11-6
(P3) x 2
(P2) x 3
(P3) x 2
CD Servo
PWB
Slide
Chassis
(P1) x 1
ø3 x 8mm
(Q2) x 3
(Q1) x 1
(Q1) x 1
CD
Mechanism
CD
Mechanism
Chassis
Slide
Chassis
Speaker Box Ass'y
(A1) x 1
Screwdriver
Driver should
be pried away
from Speaker Box.
(A2) x 8
ø4 x 16mm
Woofer
Speaker Box Ass'y
Speaker Box Ass'y
(B1) x 1
Screwdriver
Driver should
be pried away
from Speaker Box.
(C1) x 4
ø4 x 16mm
Speaker Box Ass'y
Woofer
(C1) x 4
ø4 x 16mm
Woofer
(B2) x 4
ø3 x 12mm
Tweeter
Front Panel
Figure 11-4
