CD-M10000W/CP-M10000
– 12 –
REMOVING AND REINSTALLING THE MAIN PARTS
TAPE MECHANISM SECTION
Perform steps 1 to 7 and 10 of the disassembly method to
remove the tape mechanism.
How to remove the record/playback and erase
heads (TAPE 2) (See Fig. 12-1)
1. When you remove the screws (A1) x 2 pcs., the recording/
playback head and three-dimensional head of the erasing
head can be removed.
How to remove the playback head (TAPE 1)
(See Fig. 12-2)
1. When you remove the screws (B1) x 2 pcs., the playback
head can be removed.
How to remove the pinch roller (TAPE 1/2)
(See Fig. 12-3)
1. Carefully bend the pinch roller pawl in the direction of the
arrow <A>, and remove the pinch roller (C1) x 1 pc., in the
direction of the arrow <B>.
Note:
When installing the pinch roller, pay attention to the spring
mounting position.
How to remove the belt (TAPE 2)
(See Fig. 12-4)
1. Remove the main belt (D1) x 1 pc., from the motor side.
2. Remove the FF/REW belt (D2) x 1 pc.
How to remove the belt (TAPE 1)
(See Fig. 12-4)
1. Remove the main belt (E1) x 1 pc., from the motor side.
2. Remove the FF/REW belt (E2) x 1 pc.
How to remove the motor (See Fig. 12-5)
1. Remove the screws (F1) x 2 pcs., to remove the motor.

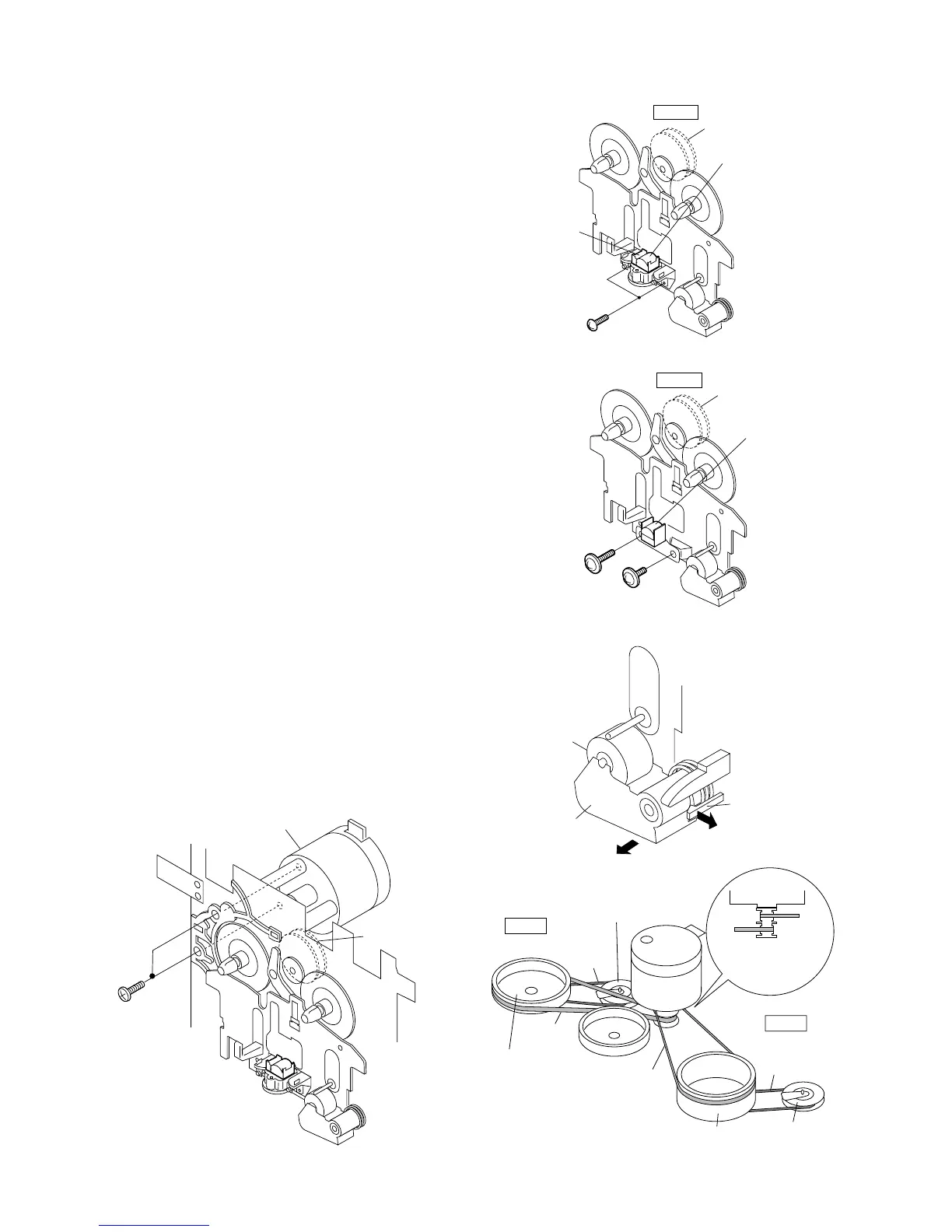

Figure 12-1
Figure 12-2
Figure 12-3
Figure 12-4Figure 12-5
(A1) x 2
Ø2 x 6mm
TAPE 2
Record/Playback
Head
Erase Head
Clutch Ass'y
(B1) x 1
Ø2 x 9mm
(B1) x 1
Ø2 x 5mm
TAPE 1
Playback
Head
Clutch Ass'y
Pinch Roller
(C1) x 1
<A>
Pull
<B>
Pull
Pinch
Roller
Pawl
TAPE 2
TAPE 1
Main Belt
(E1) x 1
TAPE 2
Main Belt
(D1) x 1
TAPE 1
FF/REW
Belt
(D2) x 1
FF/REW
Belt
(E2) x 1
Tape
Motor
Tape
Motor
Main Belt
(D1) x 1
Main Belt
(E1) x 1
FF/REW
Roller
FF/REW
Roller
Flywheel
Ass'y
Flywheel
Ass'y
(F1) x 2
Ø2.6 x 5mm
Tape
Motor
Clutch Ass'y
