Sharp CD-XP2200 User Manual

CD-XP200/CD-XP2200
– 38 –

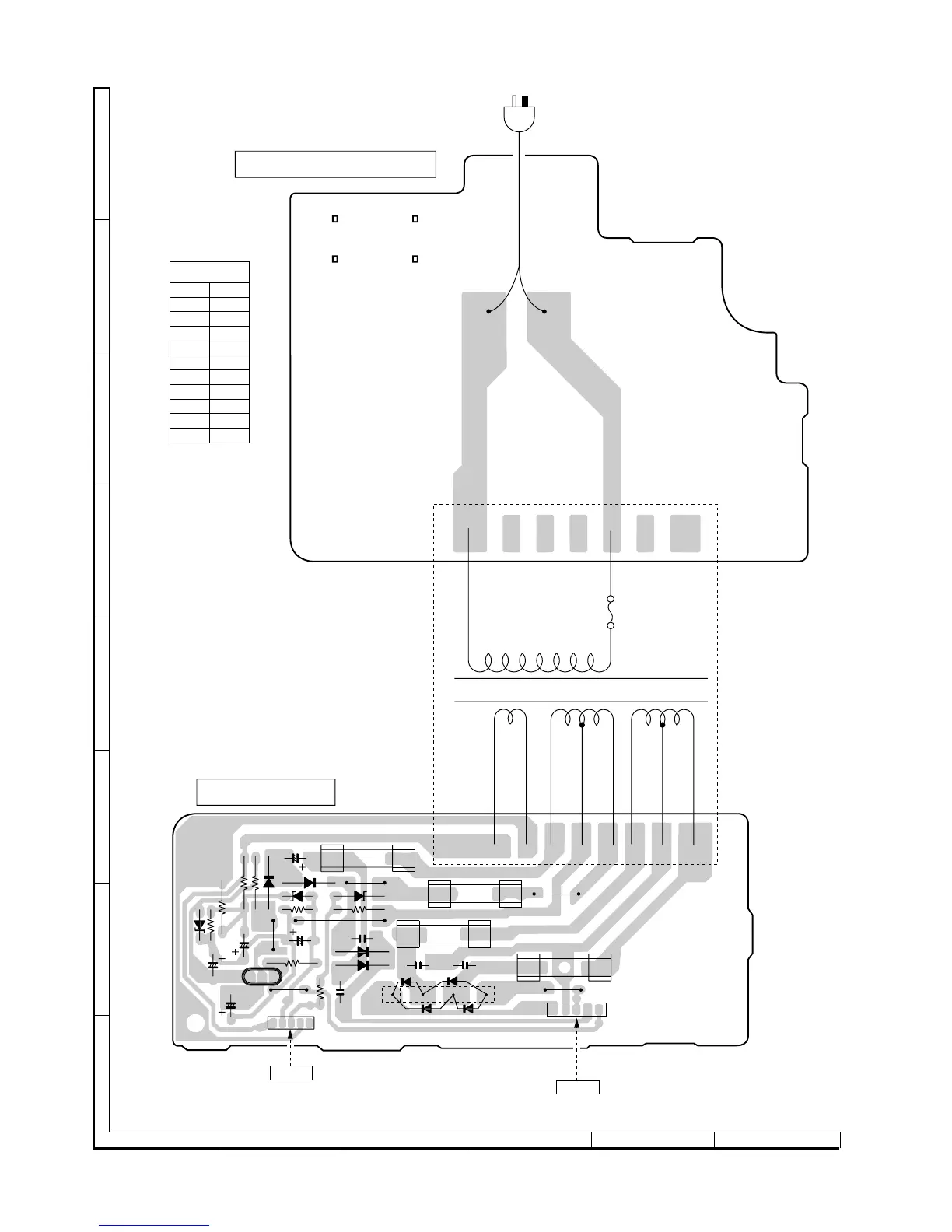

Figure 38 WIRING SIDE OF P.W.BOARD (7/7)
A
B
C
D
E
F
G
H
1
23456
C809
C808
D802
CNP801
CNP802
C804
C806
R801
Q801
C803
D804
R807
D803
C801
C802
C807
ZD803
R803
R805
R802
R806
ZD802
ZD801
D806 R808 R804
D805
C805
AC POWER
SUPPLY CORD
AC 120 V, 60 Hz
BK
WH
TRANSFORMER PWB-A3
POWER PWB-A2
T.F.
PT801
POWER TRANSFORMER
12345
12345
F804
2A/125V
F803
2A/125V
F801
4A/125V
F802
4A/125V
CNS705
P34 1 - E
FROM DISPLAY PWB
CNS801
P33 7 - H
FROM MAIN PWB
B C E
BR
COLOR TABLE
RD(R)
OR
YL
GR
BL
VL
GY
WH(W)
BK
PK
BROWN
RED
ORANGE
YELLOW
GREEN
BLUE
VIOLET
GRAY
WHITE
BLACK
PINK
