CD-XP300/CD-XP3300
– 38 –

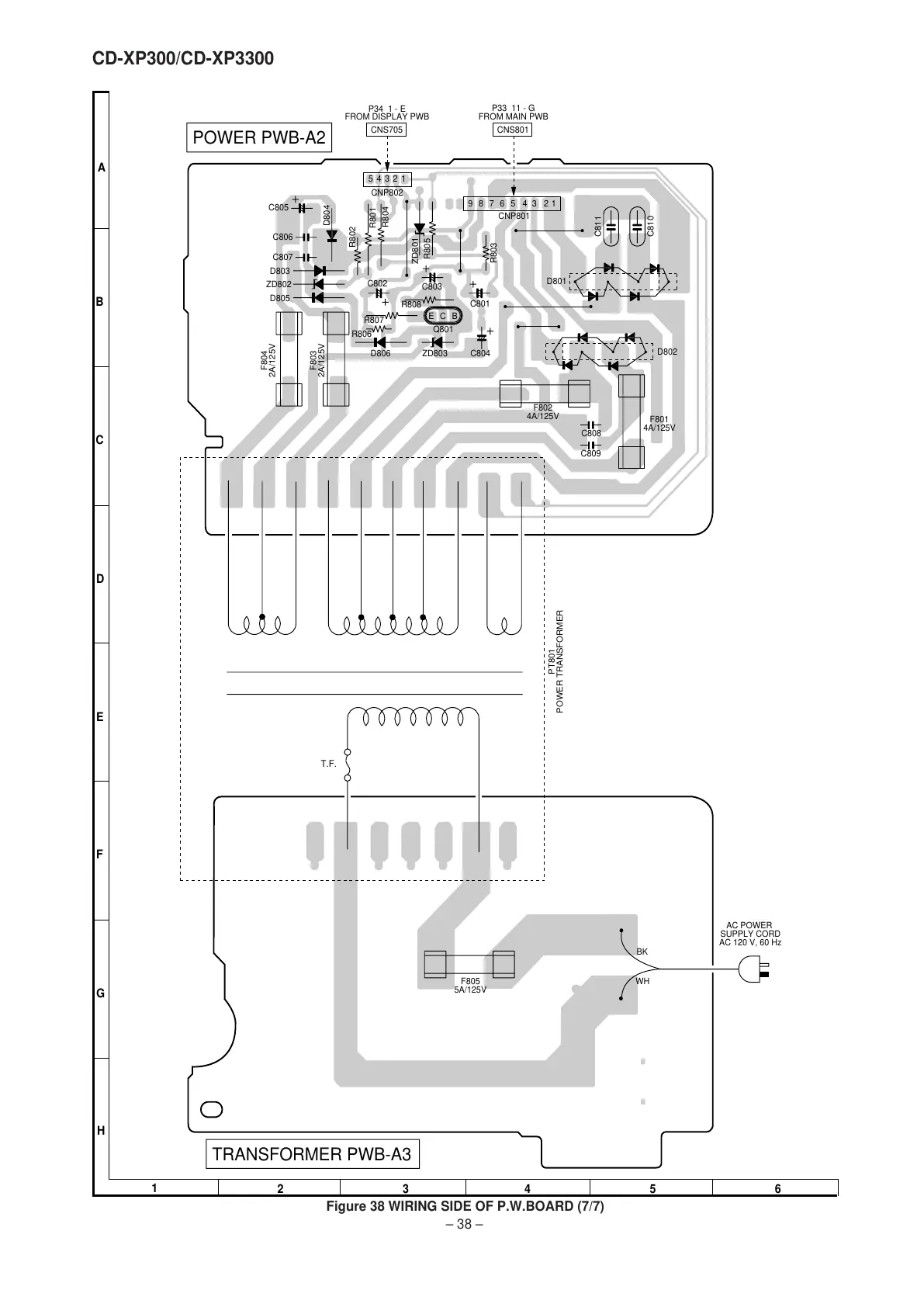

Figure 38 WIRING SIDE OF P.W.BOARD (7/7)
A
B
C
D
E
F
G
H
1
23
45
6
T.F.
D806
ZD803
C804
R806
R807
Q801
R808
D805
F804
2A/125V
F803
2A/125V
C802
C801
ZD802
C803
D803
C807
R802
R803
C806
R801
D804
R804
R805
ZD801
C805
CNP801
CNP802
D801
D802
C808
C809
1
2
3
4
5
6
7
8
9
CNS801
P33 11 - G
FROM MAIN PWB
CNS705
P34 1 - E
FROM DISPLAY PWB
1
2
3
4
5
POWER PWB-A2
TRANSFORMER PWB-A3
E C B
F802
4A/125V
F801
4A/125V
C810
C811
AC POWER
SUPPLY CORD
AC 120 V, 60 Hz
PT801
POWER TRANSFORMER
F805
5A/125V
BK
WH
