CD-XP300/CD-XP3300
– 4 –

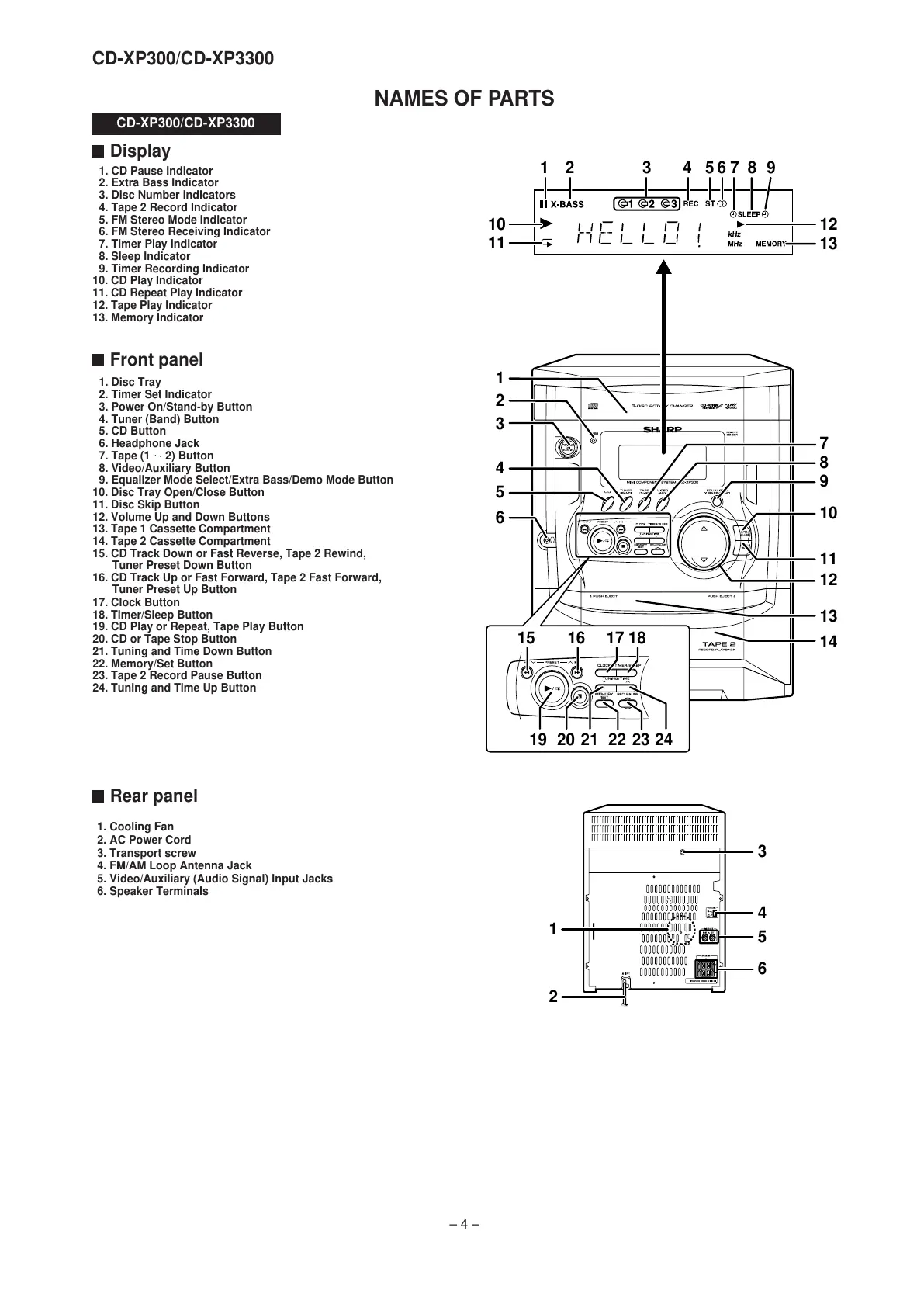

NAMES OF PARTS
CD-XP300/CD-XP3300
Display
1. CD Pause Indicator
2. Extra Bass Indicator
3. Disc Number Indicators
4. Tape 2 Record Indicator
5. FM Stereo Mode Indicator
6. FM Stereo Receiving Indicator
7. Timer Play Indicator
8. Sleep Indicator
9. Timer Recording Indicator
10. CD Play Indicator
11. CD Repeat Play Indicator
12. Tape Play Indicator
13. Memory Indicator
Front panel
1. Disc Tray
2. Timer Set Indicator
3. Power On/Stand-by Button
4. Tuner (Band) Button
5. CD Button
6. Headphone Jack
7. Tape (1 2) Button
8. Video/Auxiliary Button
9. Equalizer Mode Select/Extra Bass/Demo Mode Button
10. Disc Tray Open/Close Button
11. Disc Skip Button
12. Volume Up and Down Buttons
13. Tape 1 Cassette Compartment
14. Tape 2 Cassette Compartment
15. CD Track Down or Fast Reverse, Tape 2 Rewind,
Tuner Preset Down Button
16. CD Track Up or Fast Forward, Tape 2 Fast Forward,
Tuner Preset Up Button
17. Clock Button
18. Timer/Sleep Button
19. CD Play or Repeat, Tape Play Button
20. CD or Tape Stop Button
21. Tuning and Time Down Button
22. Memory/Set Button
23. Tape 2 Record Pause Button
24. Tuning and Time Up Button
3
2
1
4
7
13
8
9
10
11
12
14
5
6
13
2456791 8
12
10
11
15
19 20 21 242322
1716 18
3
Rear panel
1. Cooling Fan
2. AC Power Cord
3. Transport screw
4. FM/AM Loop Antenna Jack
5. Video/Auxiliary (Audio Signal) Input Jacks
6. Speaker Terminals
4
1
2
5
6
3
