Sharp CV10CTXW User Manual

EN-12

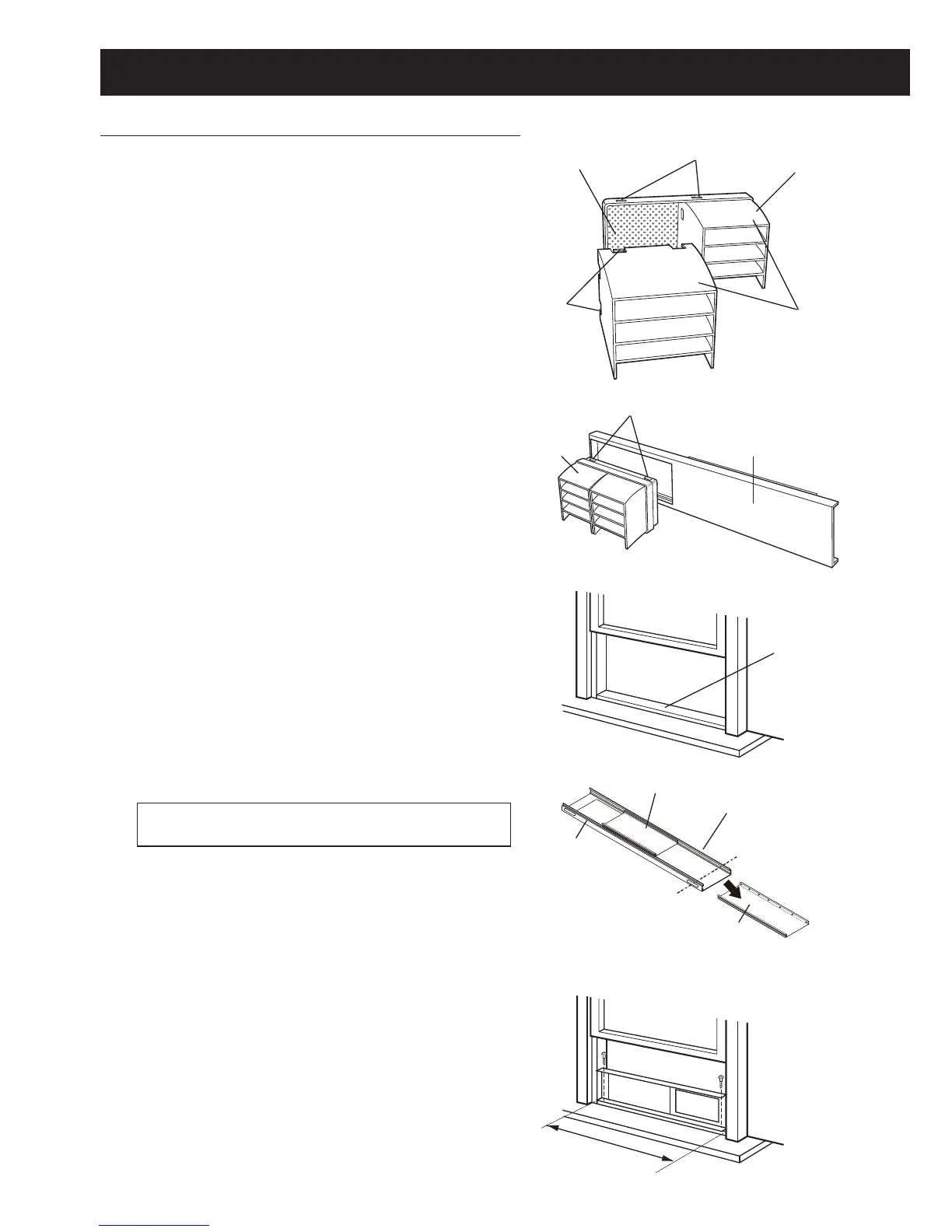

INSTALL WINDOW PANEL
Installation in a double-hung sash window
Hole
Projec-
tion
Insect guard net
Rain guard
"A"
"A"
Foam seal A
(adhesivetype)
22"-24"
Windowpanel
Windowsill
1
Connect the rain guards to the insect
guard net.
Insert all three projections on each rain
guard into the holes in the insect guard net.
 Side“A”willnowbeatthetop,asindicated
in the diagram.
2
Attach the guard combined above to
the window pane
l.
Push the insect guard net rmly to ensure
that its four projections t into the holes in
the window panel.
Side“A”willnowbeatthetop,asindicated
in the diagram.
3
Cut the foam seal A to the proper
length and attach it to the window
sill.
4
Attach the window panel to the
window sill.
If the inner width of the window is between
22"(559mm)and24"(609mm)inclusive
The window panel cannot be installed in
windows less than 22" (559mm) wide, as
you will be unable to shut the exhaust cover.
(1) Remove the adjustment panel from
the window panel, and cut the window
panel to the same width as the window.
(2) Openthewindowsashandplacethe
window panel on the window sill.
(3) Securethewindowpaneltothewindow
sill with 2 screws.
Cut
Window
panel
Adjustment
panel
Exhaust cover
Panel de ventana
Saliente
