EN-14

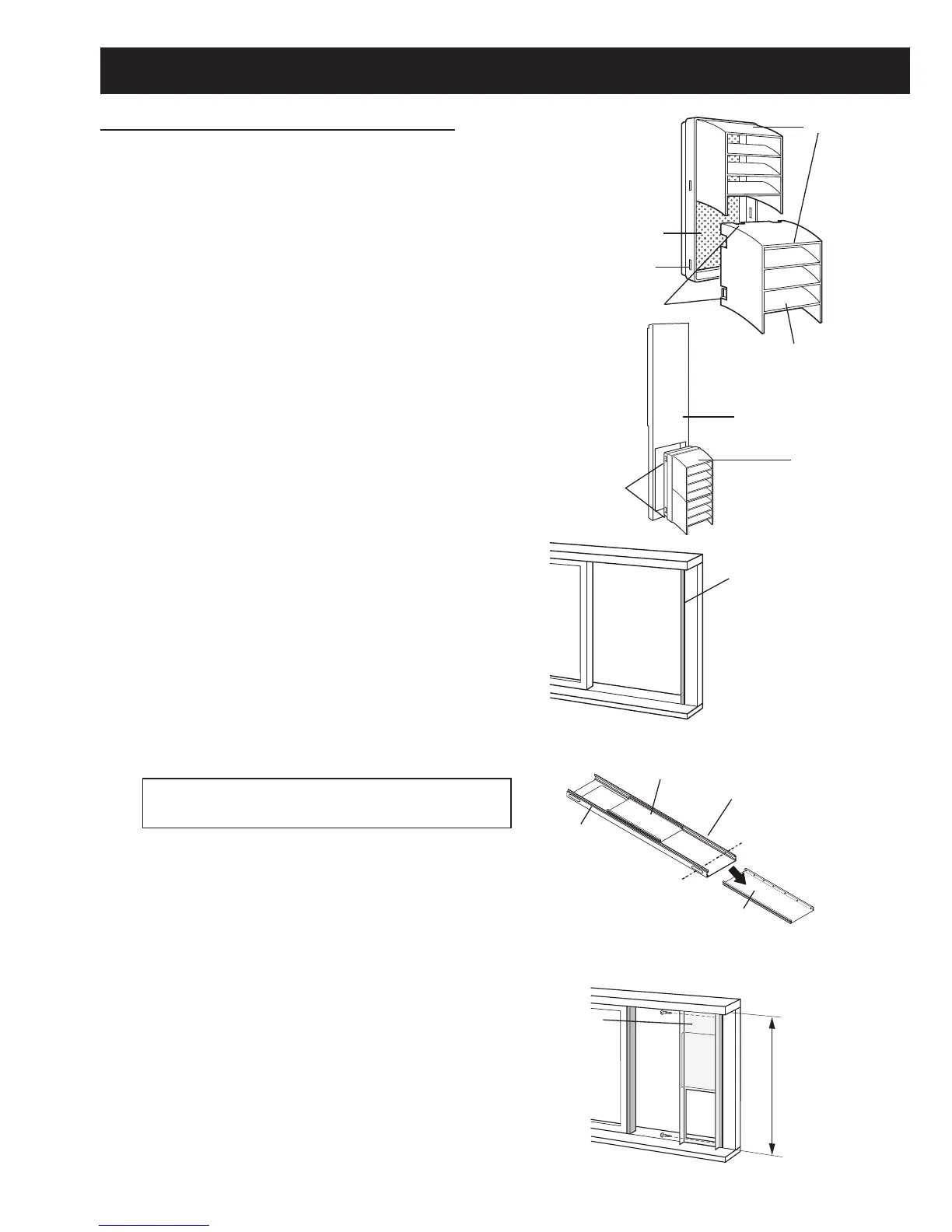

INSTALL WINDOW PANEL
Installation in a sliding sash window
1
Connect the rain guards to the insect
guard net.
Insert all three projections on each rain
guard into the holes in the insect guard net.
 Side“A”willnowbeatthetop,asindicated
in the diagram.
2
Attach the guard combined above to
the window panel.
Push the insect guard net rmly to ensure
that its four projections t into the holes in
the window panel.
 Side“A”willnowbeatthetop,asindicated
in the diagram, when it is installed in the
window.
3
Cut the foam seal A (adhesive type)
to the proper length and attach it to
the window frame.
4
Install the window panel into the win-
dow frame.
Make sure that the exhaust cover is
attached to the window panel.
If the inner width of the window is between
22"(559mm)and24"(609mm)inclusive
The window panel cannot be installed in
windows less than 21.3" (540mm) high,
as you will be unable to shut the exhaust
cover.
(1) Remove the adjustment panel from
the window panel, and cut the window
panel to the same width as the window.
(2) Openthewindowsashandplacethe
window panel on the window sill.
(3) Securethewindowpaneltothewindow
sill with 2 screws.
Hole
Projection
Insect guard net
Rain guard
"A"
Projection
"A"
22"-24"
Foam seal A
Windowpanel
Cut
Window
panel
Window
panel
Adjustment
panel
Exhaust cover
