12
DV-NC55U/C/M
6-2. EXTENSION CABLE USE POINT (FOUR PLACES)

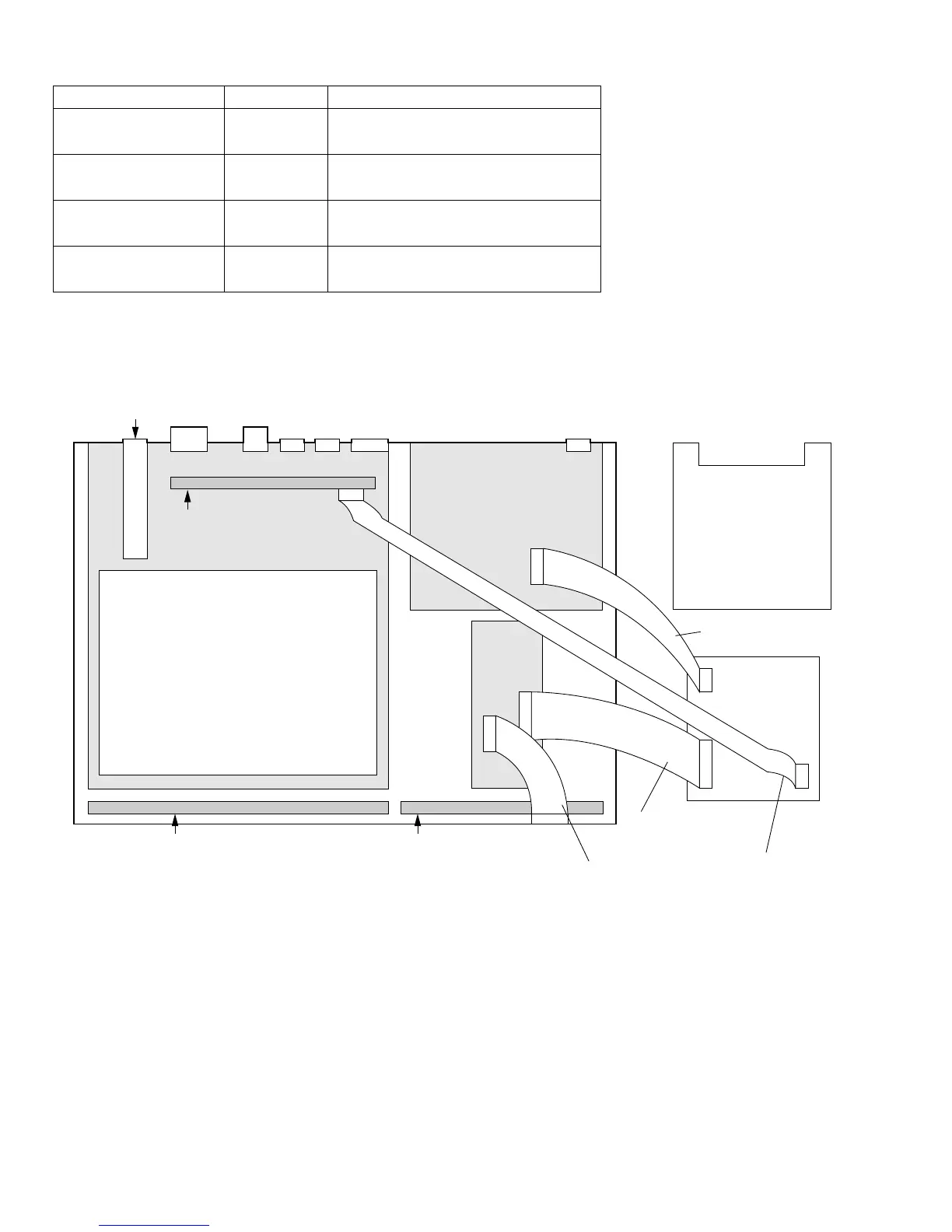

Extension Cable Diagram
Parts Code Price Code Name/Description
QCNW-8570GEZZ AV Extension cable (FFC), 29pin 500mm
DVD main CN801–I/F CN8202
QCNW-8571GEZZ AN Extension cable (wire), 9pin 500mm
DVD main CN201–power P9001
QCNW-8601AJZZ AE Extension cable (FFC), 23pin
I/F CN8203–DVD display CN5001
QCNW-8605AJZZ AE Extension cable(FFC), 9pin
DVD main CN802– AV CN2005
Power PWB
P9001
CN2005
Audio/Video PWB
Tuner
CN8202
CN201
CN802
CN801
CN5001
CN8203
Interface
PWB
DVD main PWB
DVD Mechanism
VTR Display PWB DVD Display PWB
VTR Mechanism
VTR Main PWB
QCNW-8571GEZZ
9pin
QCNW-8570GEZZ
29pin
QCNW-8601AJZZ
23pin
QCNW-8605AJZZ
9pin
