ER-A410/ER-A420 SPECIFICATIONS
– 1 –
CHAPTER 1. SPECIFICATIONS

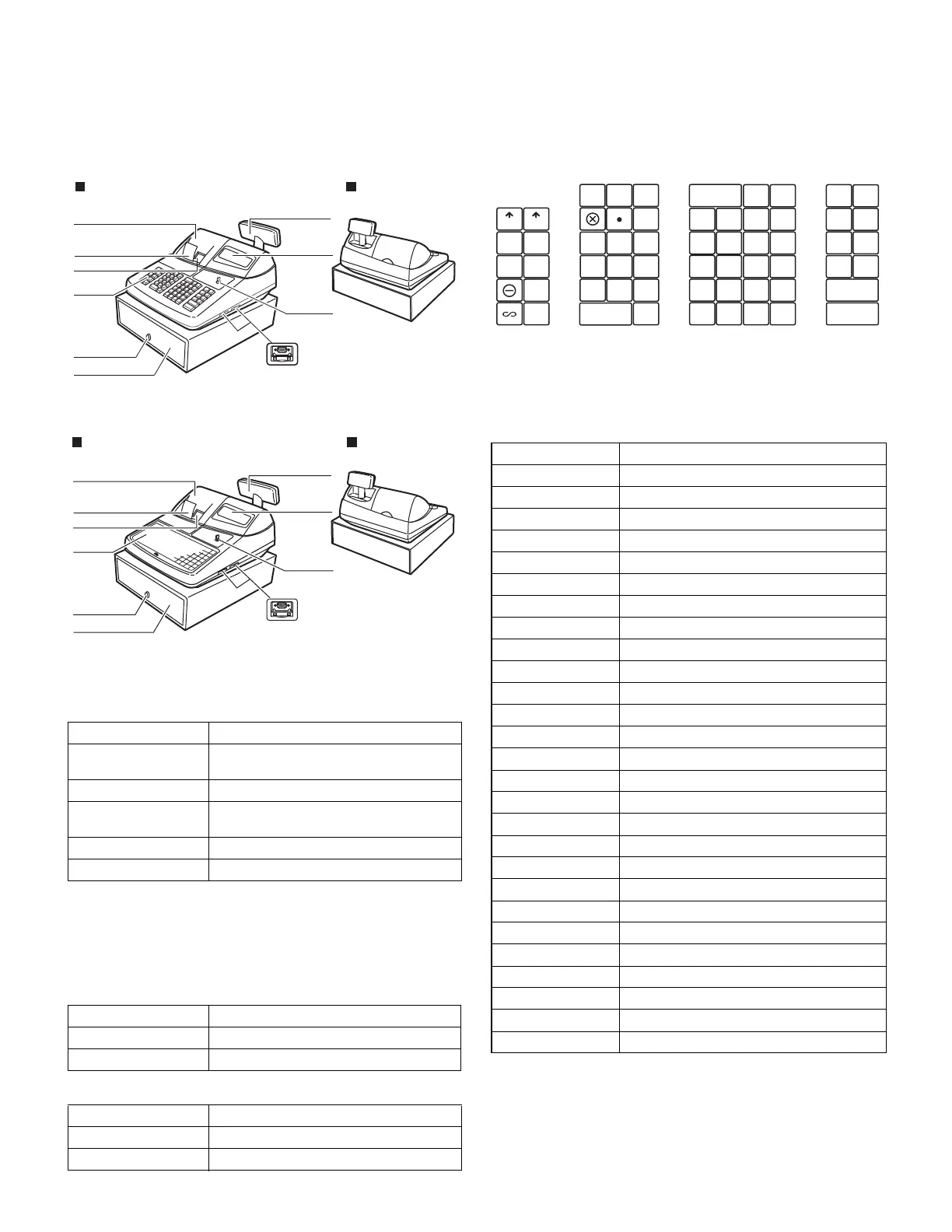

1. APPEARANCE
ER-A410
ER-A420
2. RATING
3. KEYBOARD
3-1. KEYBOARD LAYOUT
ER-A410
ER-A420
3-2. KEY LAYOUT
ER-A410 KEYLAYOUT
Note: All the keys but the receipt paper feed and journal paper feed
keys can be re-positioned.
If you want to change the layout, consult your dealer.
■
■■
■ Key names
ER-A410/420
Weight ER-A410: 12.2kg
ER-A420: 12.1kg
Dimensions 355 (W) x 424 (D) x 305 (H) mm
Power source 220~230V (m10%), 50/60Hz
230~240V (m10%), 50Hz
Power consumption Stand-by 11W, Operating 49W (max.)
Working temperature 0°C~40°C (32°F to 104°F)
Type Normal keyboard
Key stroke 3.5 m 0.5 mm
Key pitch 19 (W) x 19 (H) mm
Type Flat key
Key stroke 1.1 m 0.2 mm
Key pitch 18 (W) x 15 (H) mm
Front view Rear view
Printer cover
Receipt paper
Journal window
Keyboard
Drawer lock
Drawer
Customer display
(Pop-up type)
Operator
display
Mode switch
RS-232C connector
Printer cover
Receipt paper
Journal window
Keyboard
Drawer lock
Drawer
Customer display
(Pop-up type)
Operator
display
Mode switch
RS-232C connector
Front view Rear view
2 RECEIPT Receipt paper feed key
2 JOURNAL Journal paper feed key
0 ~ 9, 00 Numeric keys
• Decimal point key
y Multiplication key
CL Clear key
1 ~ 20 Department keys
PLU/SUB Price lookup/subdepartment key
AMT Amount entry key
VAT Value added tax key
CASH # Cashier code entry key
- Discount key
% Percent key
EX1, EX2 Foreign currency exchange 1 and 2 keys
CR1, CR2 Credit 1 and 2 keys
CH1, CH2 Cheque 1 and 2 keys
ST Subtotal key
TL Total (cash total) key
p Void key
RF Refund key
RA Received-on-account key
PO Paid-out key
DEPT # Department code entry key
# Non-add code key
NS No-sale key
DIFFER ST Difference subtotal key
RCPT Receipt print key
AUTO Automatic sequencing key
1
4
3
2
5
11
12
13
14
15
16
17
18
19
20
0
1
2
3
4 5 6
7 8
9
CL
00
CH1
RCPT
6
7
8
9
10
%
RA
PO
RF
#
CASH
#
CR1
CH2
CR2
TL
ST
DEPT
#
EX2
EX1
AMT
AUTO
PLU/SUB
RECEIPT
JOURNAL
NS
VAT
DIFFER
ST
