Sharp GF-4646 User Manual

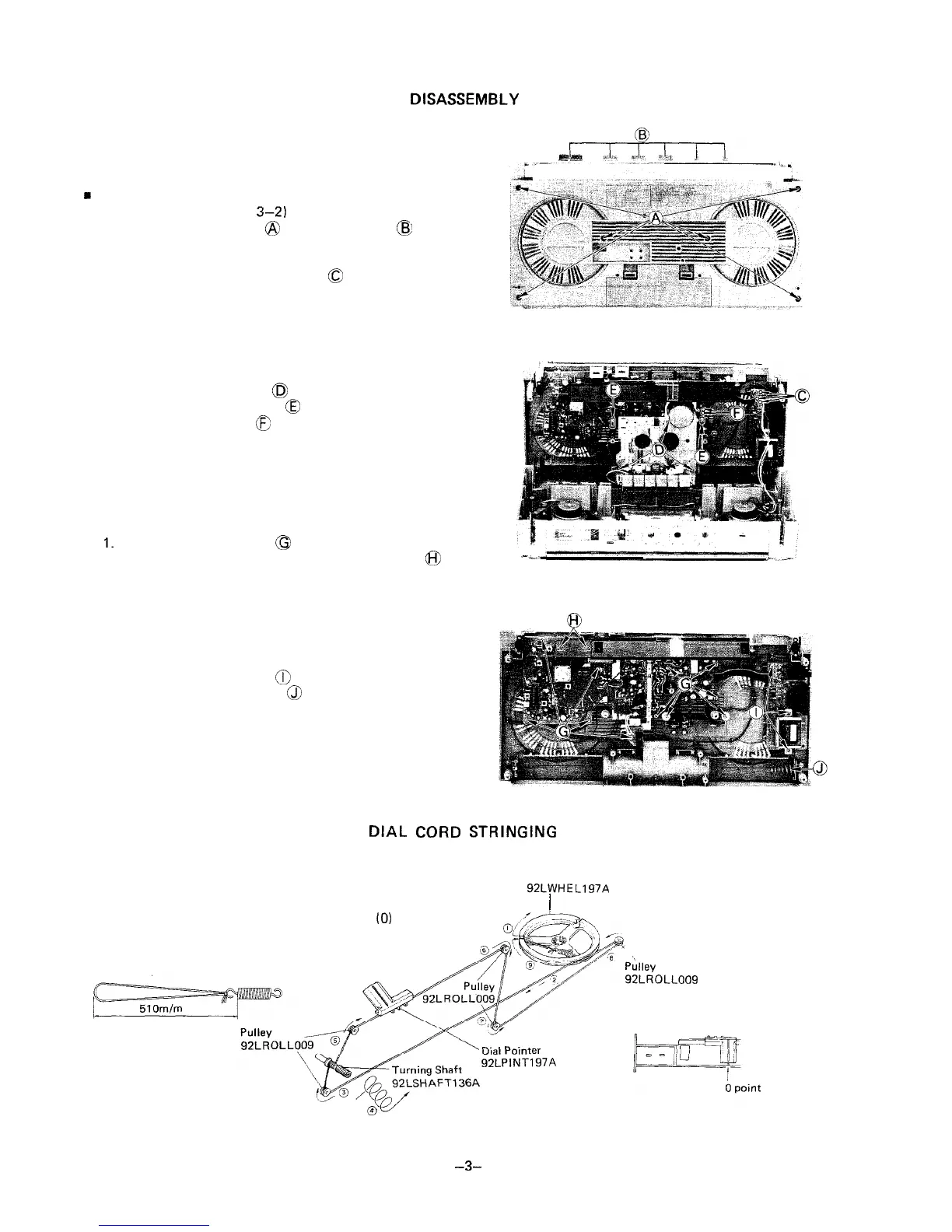

DISASSEMBLY
Caution:
Prior to the disassembly, be sure to remove the AC power
supply cord, cassette tape and batteries from the unit.
m FRONT CABINET REMOVAL
(Refer to Figures 3-l and 3-2)
1. Remove the six screws @ and the six knobs @
2. Push the eject button to open the cassette holder.
3. Pull the front cabinet frontward by holding its upper
part and disconnect the three tips 0
n MECHANISM BLOCK REMOVAL
(Refer to Figure 3-2)
1. Remove the three screws 0 .
2. Disconnect the two sockets 0 .
3. Unsolder the two tips @ , then the mechanism block
can be removed.
n MAIN P.W.B. REMOVAL
(Refer to Figure 3-3)
I. Remove the eleven screws 0 .
2. Remove the LED P.W.B. from the two stoppers @ ,
then the main P.W.B. can be removed from the back
cabinet.
. POWER P.W.B. REMOVAL
(Refer to Figure 3-3)
1. Remove the three screws 0
2. Remove the battery spring @ , then the power P.W.B.
can be removed from the back cabinet.
Figure 3-l
-a,.
Figure 3-2
Figure 3-3
DIAL CORD STRINGING
1) Turn the drum fully clockwise and stretch its cord cover
the parts in the numerical order-as shown in Figure 3-4.
2) Turn the tuning control shaft fully counterclockwise, and
Dial Cord Wheel
92LWHEL197A
I
fix it with the pointer aligned with the zero (0) point on
the frame. See Figure 3-5.
Pklley
92LROLL009
92LPINT197A
Figure 3-4
4 turns
Figure 3-5
-3-
