FOR A COMPLETE DESCRIPTION OF THE OPERATION OF THIS UNIT,
PLEASE REFER TO THE OPERATION MANUAL.
SPECIFICATIONS
GENERAL
Power source:
Speakers:
Output power:
(DIN
45
324)
(GF-5454H/HB)
Output power:
(GF-5454E)
Semiconductors:
Dimensions:
Weight:
Width;
Depth;
Height;
AC
110V~120V
and
220V~240V,
50/60HZ
DC 9V (UM/SUM-1, R20, HP-2 or
D type x 6)
12cm
woofer x 2
Ceramic type tweeter x 2
MPO;
9.6W
(4.8W
+
4.8W)
(AC operation)
RMS;
5.8W
(2.9W
+
2.9W)
(DC operation)
MPO; 12W (6W + 6W) (AC opera-
tion
RMS;
5.8W
(2.9W
+
2.9W)
(DC
operation, 10% distortion)
6ICs
9 transistors
21 diodes
7LEDs
500mm
120mm
226mm
3.9 kg without batteries
TAPE RECORDER
Tape:
Frequency response:
Signal/noise ratio:
Wow and flutter:
(GF-5454H/HB)
Wow and
flutter:
(GF-5454E)
Input sensitivity and impedance:
Compact cassette tape
50Hz~10,OOOHz
50dB
0.28%
(DIN
45
511)
0.28%
(CCIR)
External
mic.;
DIN
socket;
Loaded impedance:
Headphones;
External speakers;
RADIO
Frequency range:
600 ohms
0.7mV/5.6 ohms
8
ohms~
25 ohms
2.4 ohms ~ 8 ohms
FM;
87.6
MHz-108 MHz
LW;
150
kHz-285 kHz
MW;
520
kHz-1,620 kHz
SW;
5.95
MHz-18.0 MHz
Specifications
for this model are subject to change without
prior notice.

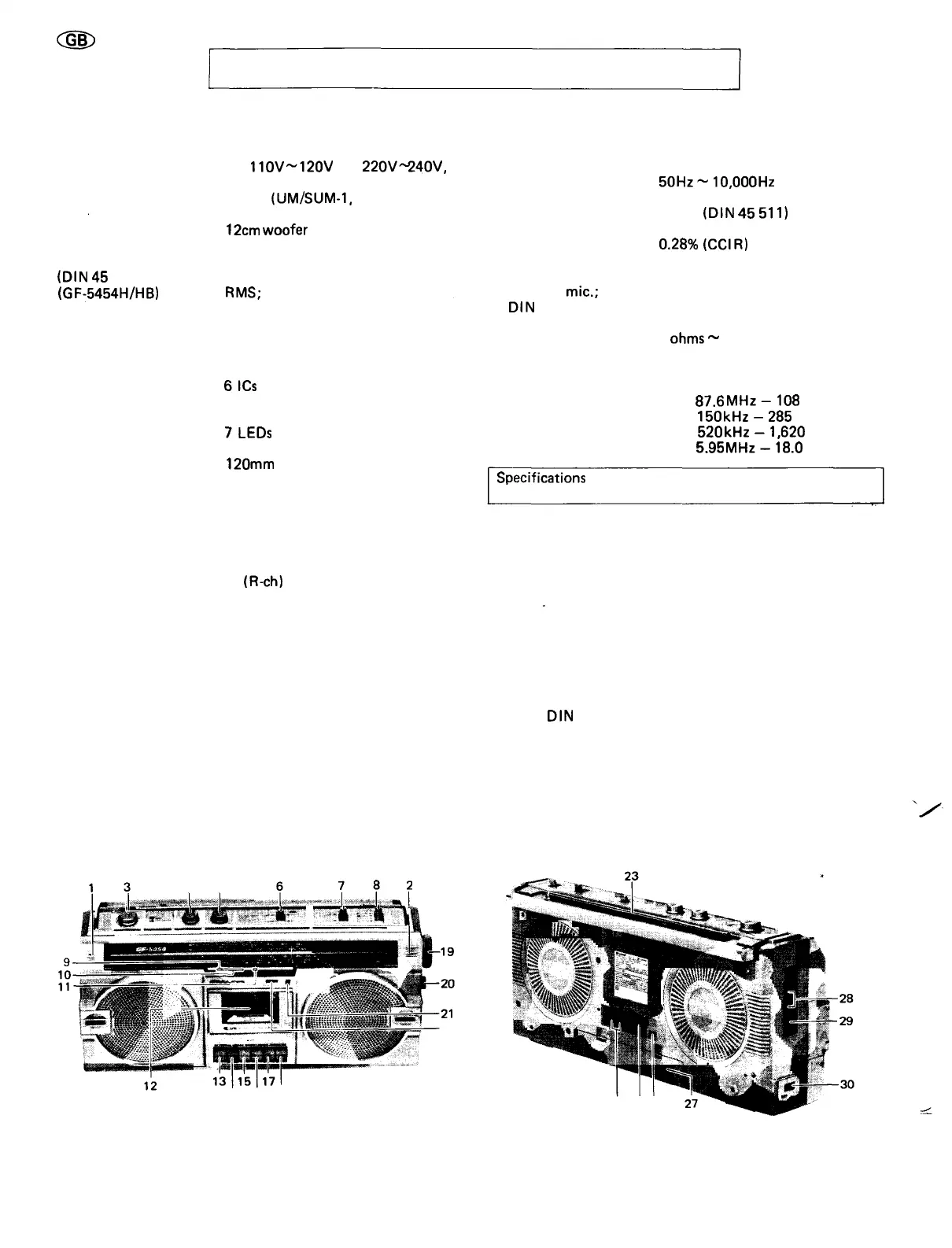

NAMES OF PARTS
1. Built-in Microphone (L-ch)
2. Built-in Microphone
(R-ch)
3. Volume Control
4. Balance Control
5. Tone Control
6. Function Selector
7. FM Mode Selector
8. Band Selector
9. Power/Battery Indicator
10. Level Indicator
11. FM Stereo Indicator
12. Cassette Holder
13. Stop/Eject Button
14. Record Button
15. Playback Button
16. Rewind/Reverse APSS Button
17. Fast-forward/Forward APSS Button
18. Pause Button
19. Tuning Control
20. Fine Tuning Control
21. Tape Counter Reset Button
22. Digital Tape Counter
23. FM/SW Telescopic Rod Antenna
24. External Microphone Jacks
25.
DIN
Socket
26. Beat Cancel Switch
27. Battery Compartment Lid
28. External Speaker Jacks
29. Headphones Jack
30. AC Power Supply Socket
4 5
782
•[мйВИИ^^Р^^ЕР*^^
Ш^Ц
^Шр:'-й^Г
:?
^jn-ll^l'
22
14 16 18
24 2526
Figure 2-1
Figure 2-2
